High Speed Automatic Blow Molding Machine 11 KW 2L Plastic Bottle

High Speed Automatic Blow Molding Machine 11 KW 2L Plastic Bottle

Products - Daily Chemical Bottle Blow Molding Machine
  • High Light

    11 kW Bottle Blow Molding Machine

    ,

    2L Plastic Bottle Blow Molding Machine

    ,

    High Speed Automatic Blow Molding Machine

  • Condition
    New
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2020
  • Warranty Of Core Components
    1 Year
  • Core Components
    PLC, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
  • Plastic Processed
    PP, HDPE, PC, ABS, PVC, PE, EVA, PA, ABS/PP, PE/PP, HDPE/PP, PETG
  • Year
    2020
  • Voltage
    Customized To Customer Needs
  • Dimension(L*W*H)
    2.78m*1.55m*2.35m
  • Hollow Part Volume
    1-2L
  • Clamping Force (kN)
    44
  • PLC Brand
    MITSUBISHI
  • Screw L/D Ratio
    25
  • Screw Diameter (mm)
    50 Mm
  • Output (kg/h)
    50 Kg/h
  • Automation
    Automatic
  • No. Of Screw Heating Zone
    3
  • Screw Heating Power(kW)
    6.8 KW
  • Extruder Motor Power(kW)
    11 KW
  • Mold Platen Size(Width)(mm)
    300 Mm
  • Mold Platen Size(Height)(mm)
    320 Mm
  • Air Pressure(MPa)
    0.6 MPa
  • Air Comsumption(m³/min)
    0.4 M³/min
  • Die Head Heating Power(kW)
    7 KW
  • Accumulator Capacity(L)
    0 L
  • Power (kW)
    30.5
  • Weight (T)
    4
  • Key Selling Points
    Long Service Life
  • Warranty
    1 Year
  • Applicable Industries
    Energy & Mining, Hotels, Home Use, Machinery Repair Shops, Restaurant, Food & Beverage Factory, Farms
  • Showroom Location
    Egypt, Indonesia, Pakistan, Thailand, Chile, Algeria
  • Rotary Cylinder Brand
    FESTO
  • Station
    Single
  • Suitable Bottle
    1-2L
  • Key Words
    Automatic Extrusion Blow Moulding Machine
  • Packing
    Wooden
  • Use
    Hollow Moulding
  • Parison Control
    MOOG
  • Max. Size Of Mold
    360*320
  • Hydraulic Valve
    Yuken
  • Product Name
    Automatic Blowing Molding Machine
  • Port
    Shanghai
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    TONGDA HTS
  • Minimum Order Quantity
    1SET
  • Price
    $29,999.00/Sets >=1 Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

High Speed Automatic Blow Molding Machine 11 KW 2L Plastic Bottle

  • High Speed Automatic Blow Molding Machine 11 KW 2L Plastic Bottle
  • High Speed Automatic Blow Molding Machine 11 KW 2L Plastic Bottle
  • High Speed Automatic Blow Molding Machine 11 KW 2L Plastic Bottle
  • High Speed Automatic Blow Molding Machine 11 KW 2L Plastic Bottle
  • High Speed Automatic Blow Molding Machine 11 KW 2L Plastic Bottle
Get Price Contact Now

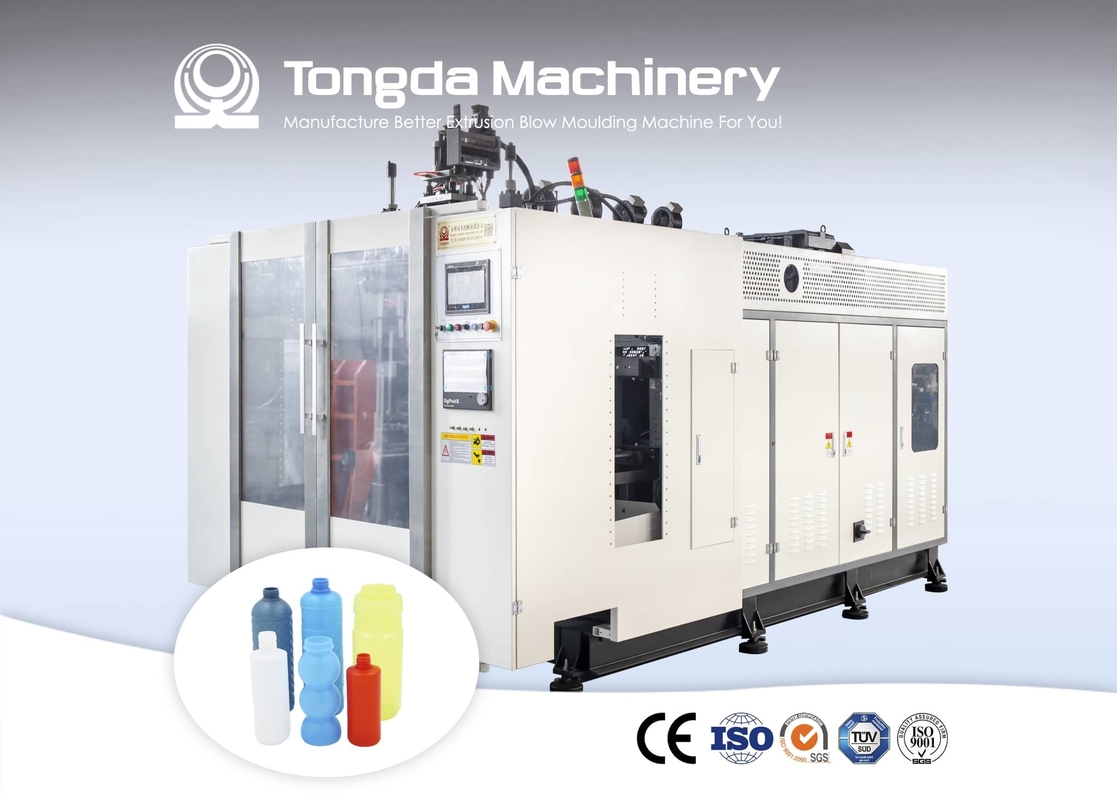

Automatic High Speed Blow Molding Machine 2L Plastic Bottle Manufacturer Machine



Product Description



This machine is suitable for the small bottles.The main parts of this machine are designed and manufactured by ourself.E.g:ly chemical vegetable wash fruit cleaning /cream lotion cosmetic bottle



Technical Parameters



MODEL Units HTS-2L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 5
Output of HDPE kg/h 50
Clamping force kn 44
Screw diametre mm 50
Screw heating power kw 6.8
Blow pressure mpa 0.6
Size of machine m 2.78*1.55*2.35



Product Details

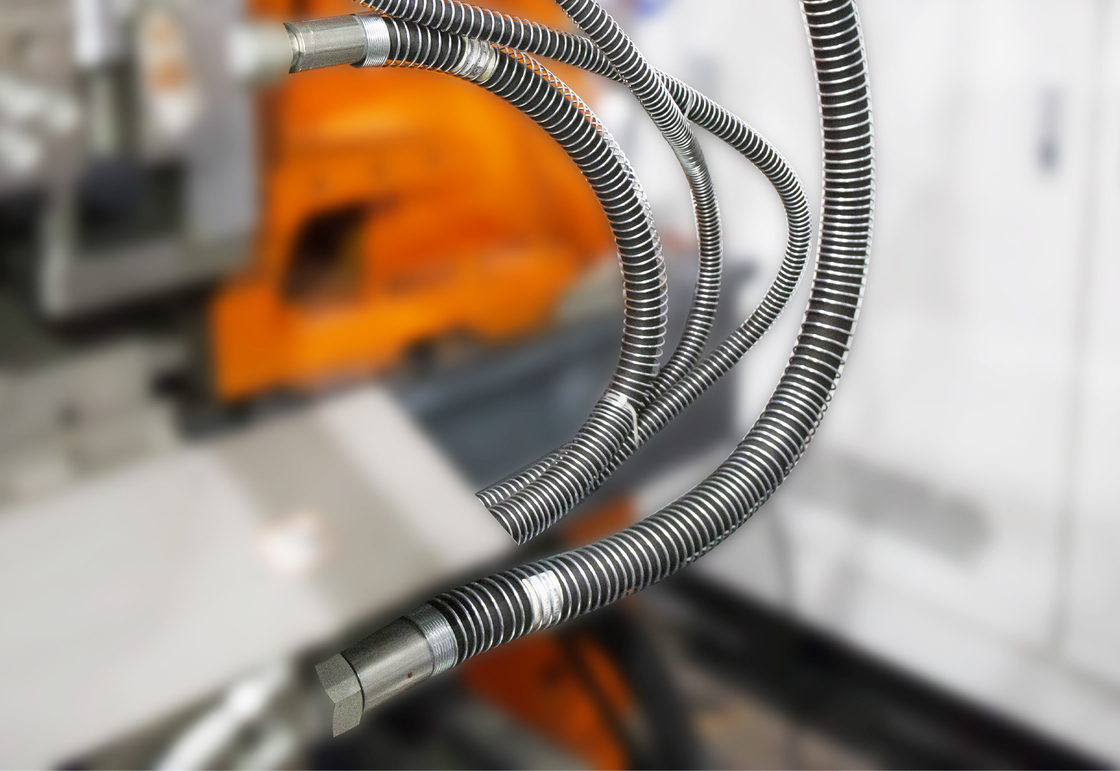

Parison controller we use MOOG 200 Points or AUTOMATA 300 Points, with extremely sensitive action.
Touch screen we use large size INNOVANCE

High Speed Automatic Blow Molding Machine 11 KW 2L Plastic Bottle 0

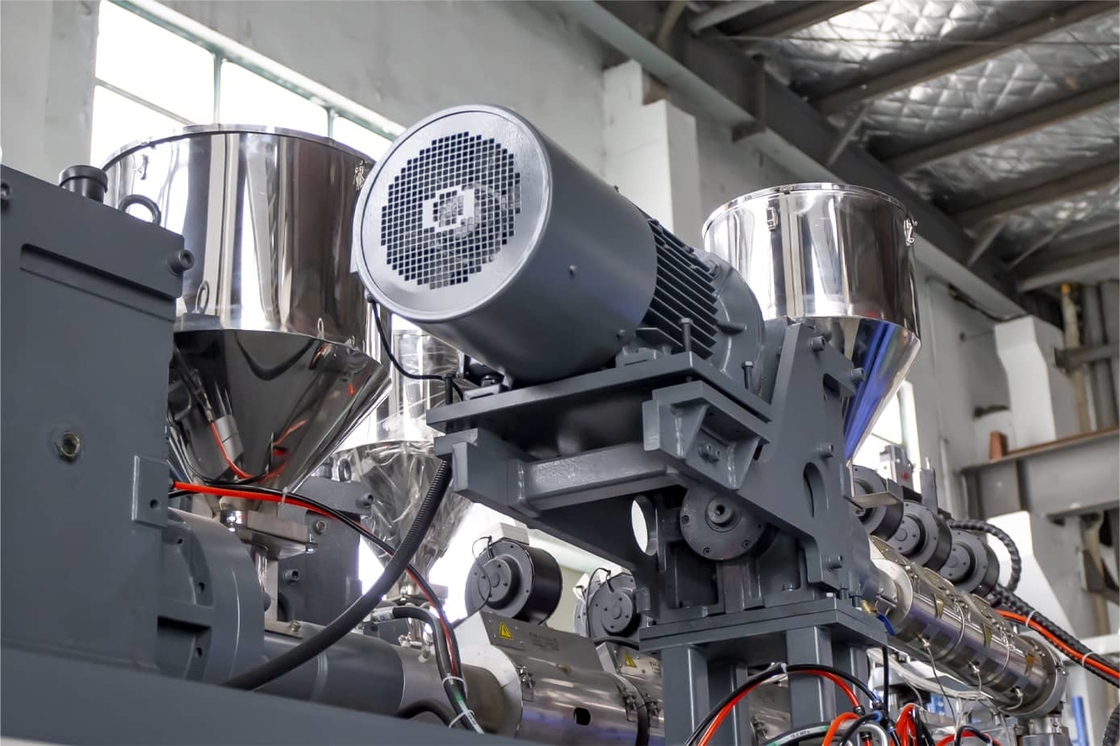

Stable and efficient clamping system

Adjustable rotary type blow pin unit, suitable for oblique bottles

High Speed Automatic Blow Molding Machine 11 KW 2L Plastic Bottle 1



Company Information



Suzhou Tongda Machinery have more than 20,000m2 factory buildings and other facilicities and a new intelligent manufacturing factory with 55,000m2 area. The I phase 20,000m2 area factory will be put into use in June, 2022. And on May 19th, 2022, we just held the II phase intelligent manufacturing base groundbreaking ceremony.

High Speed Automatic Blow Molding Machine 11 KW 2L Plastic Bottle 2





After-sales services



During epidemic period, our team have helped customers start up more than 250sets new Tongda machines by online service, to help customer run the machine as soon, our after sales team helped around 3 hours till the mid-night.

High Speed Automatic Blow Molding Machine 11 KW 2L Plastic Bottle 3



FAQ



TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function



Q: How big is your company?
A: our company has 400 employees and A building area of 100,000 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1999.


Q: How long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
