20L HDPE Plastic Jerry Can Blow Molding Machine Fully Automatic CE Approved

20L HDPE Plastic Jerry Can Blow Molding Machine Fully Automatic CE Approved

  • High Light

    Fully Automatic Jerry Can Blow Molding Machine

    ,

    20L Jerry Can Blow Molding Machine

    ,

    HDPE Plastic Blow Molding Machine

  • Hollow Part Volume
    1-30L
  • Clamping Force (kN)
    250
  • Screw L/D Ratio
    25
  • Screw Diameter (mm)
    100 Mm
  • Output (kg/h)
    300 Kg/h
  • Mold Platen Size(Width)(mm)
    730 Mm
  • Mold Platen Size(Height)(mm)
    540 Mm
  • Air Pressure(MPa)
    0.6 MPa
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    HSII-30L
  • Minimum Order Quantity
    1SET
  • Price
    $99,999.00 - $119,999.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

20L HDPE Plastic Jerry Can Blow Molding Machine Fully Automatic CE Approved

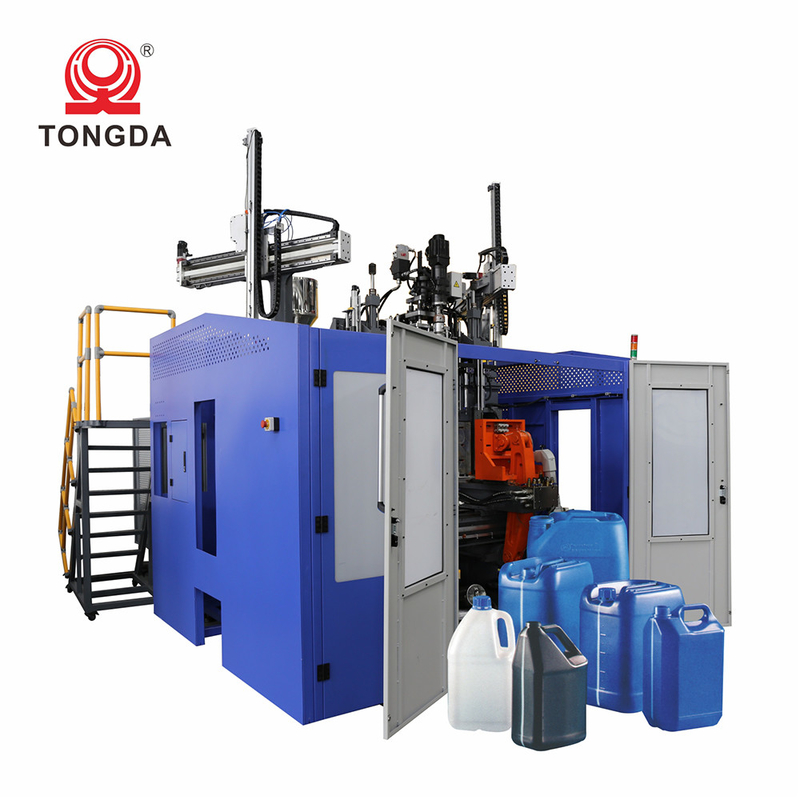

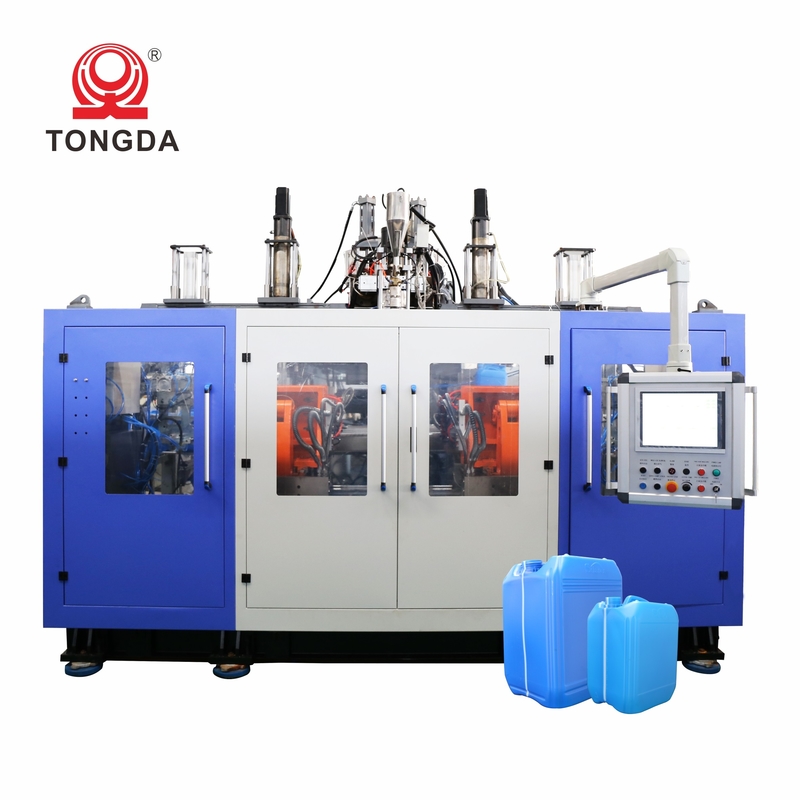

TONGDA HSll30L Fully Automatic 20L HDPE Plastic Jerry Can Production Extrusion Blow Molding Machine




Product Description

This is our best series machine. This is hydraulic servo system. The clamping unit is elbow style and the clamping force is more uniform. It is high speed and energy-saving. This machine is suitable for stacking product, jerry can, etc. It can be also equipped with several die-heads and then to make the small product.

Technical Parameters

MODEL
Units
HSII-30L
                Click for the latest discount details


Remarks: The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.
Max. Product volume
L
30

Output of HDPE
kg/h
300

Clamping force
kn
250

Screw diametre
mm
100

Screw heating power
kw
26

Blow pressure
mpa
0.6

Size of machine
m
6.2x5.5x3.3


20L HDPE Plastic Jerry Can Blow Molding Machine Fully Automatic CE Approved 0

Product Details

20L HDPE Plastic Jerry Can Blow Molding Machine Fully Automatic CE Approved 1

CE Standard

Modularized components, easy replace

Digitizing and famous

20L HDPE Plastic Jerry Can Blow Molding Machine Fully Automatic CE Approved 2

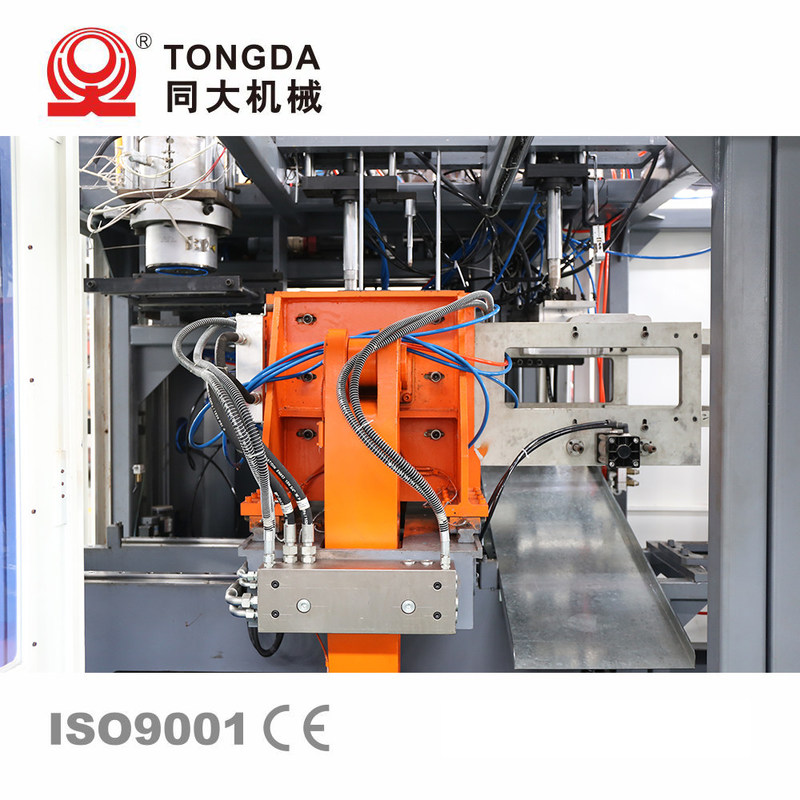

Servo Valve:

High Speed, high precision, energy-efficient, advanced servo system

20L HDPE Plastic Jerry Can Blow Molding Machine Fully Automatic CE Approved 3

15 Inches

Color Control Screen

More Convenient Operation


After-sales service

20L HDPE Plastic Jerry Can Blow Molding Machine Fully Automatic CE Approved 4

Company Information
20L HDPE Plastic Jerry Can Blow Molding Machine Fully Automatic CE Approved 5


Suzhou Tongda Machinery Co., Ltd has established Engineering Technology Research and Development Center, and Jiangsu Province excellent Graduate work station. Jiangsu Enterprise Research and Development Center, Jiangsu Province Extrusion blow Molding Technology Technology Center, Jiangsu Province post-doctoral innovation practice base and other R & D platforms. That means constantly exploring the expansion of new areas.


20L HDPE Plastic Jerry Can Blow Molding Machine Fully Automatic CE Approved 6
20L HDPE Plastic Jerry Can Blow Molding Machine Fully Automatic CE Approved 7
20L HDPE Plastic Jerry Can Blow Molding Machine Fully Automatic CE Approved 8

Why Choose Us
20L HDPE Plastic Jerry Can Blow Molding Machine Fully Automatic CE Approved 9
Service Marketing Network
1.Over four thousand Tongda machines have been serving customers all over the world.
2.The company has service outlets in Russia, Egypt, Jordan, Thailand, Chile, Indonesia and Algeria.
3.our company has exported over 4000 units machine to more than 89 countries and regions, such as USA, UK, Australia, Greece,Poland.Russia,Belarus,South America, South Africa, Indonesia, Egypt, Syria, Ethiopia.We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.

FAQ

TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function

Advantages of TONGDA tech teams
1. 600 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.
