Two Station Plastic Hollow Blow Molding Machine Automatic For 1L - 5L

Two Station Plastic Hollow Blow Molding Machine Automatic For 1L - 5L

  • High Light

    Two Station Hollow Blow Molding Machine

    ,

    Automatic Hollow Blow Molding Machine

    ,

    1L Plastic Blow Moulding Machine

  • Hollow Part Volume
    1-5L
  • Clamping Force (kN)
    110KN
  • Screw L/D Ratio
    25
  • Screw Diameter (mm)
    80 Mm
  • Output (kg/h)
    110 Kg/h
  • Air Pressure(MPa)
    0.6 MPa
  • Air Comsumption(m³/min)
    0.4 M³/min
  • Max. Size Of Mold
    440*420
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    HSII-5L
  • Minimum Order Quantity
    1SET
  • Price
    $39,999.00 - $54,999.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

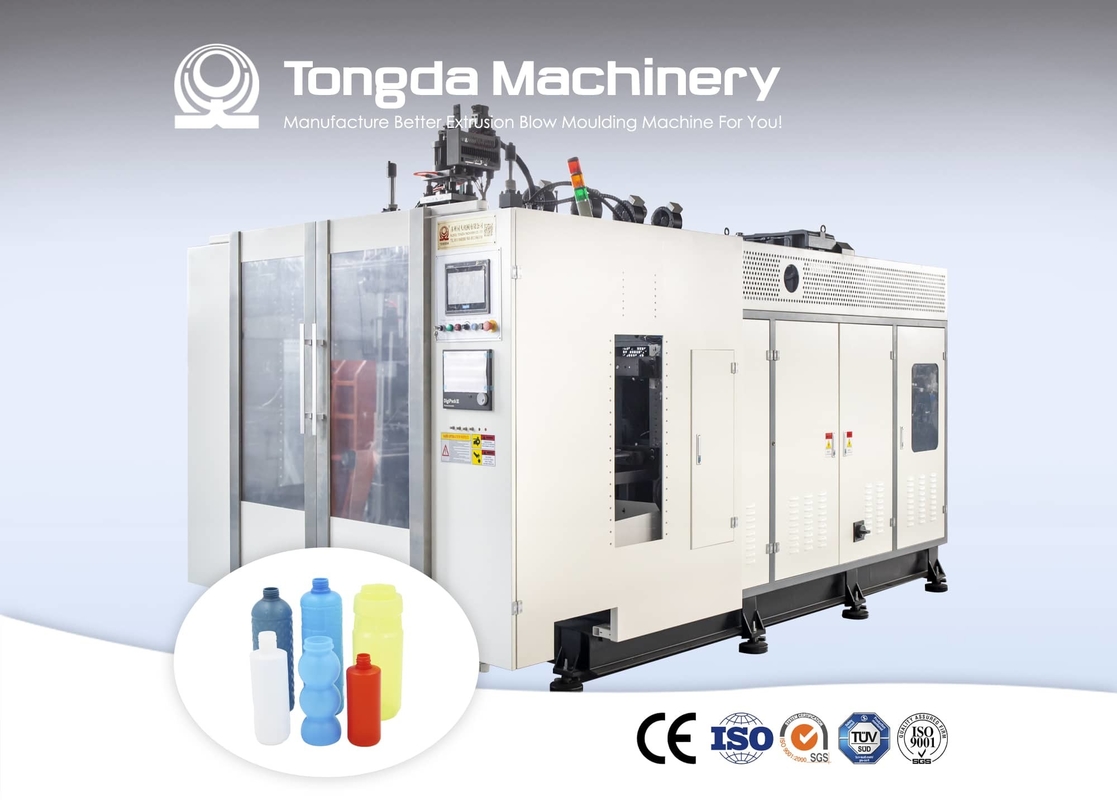

Two Station Plastic Hollow Blow Molding Machine Automatic For 1L - 5L

TONGDA HTSII5L Two Station Automatic Extrusion Plastic Blowing Machines



Product Description



This is our normal series machine.It is double station. This machine is suitable for the jerry can.It can be equipped with several die-heads and then it is also suitable for small bottles. E.g:Daily chemical vegetable wash fruit cleaning



Technical Parameters



MODEL Units HTSII-5L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 5
Output of HDPE kg/h 110
Clamping force kn 110
Screw diametre mm 80
Screw heating power kw 19
Blow pressure mpa 0.6
Size of machine m 4.1*2.6*2.7



Product Details



Air valve enlarged to ensure better shaping.

Multi-layer, durable tubes are used

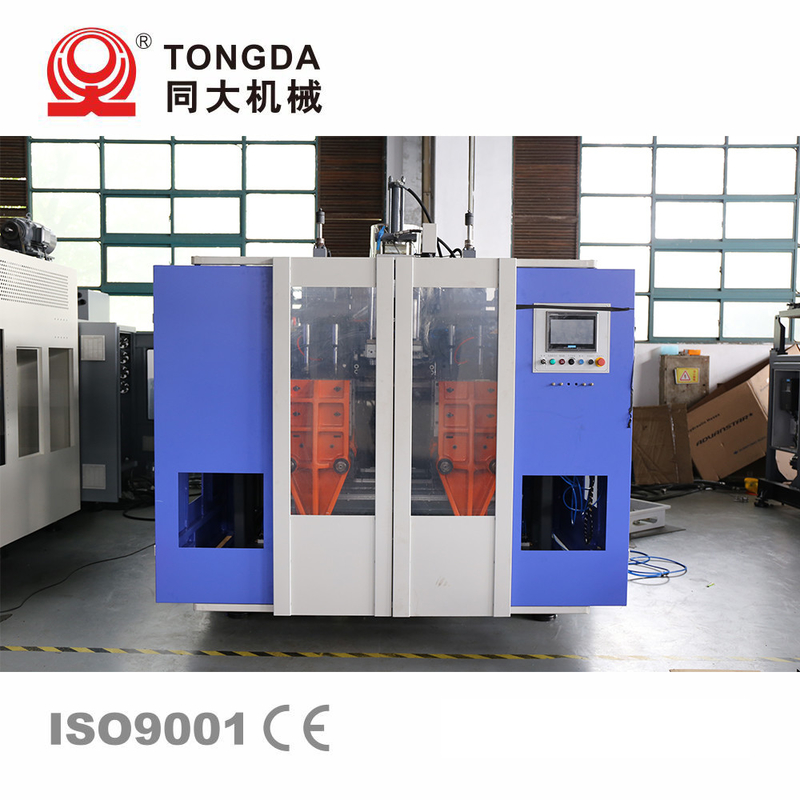

Two Station Plastic Hollow Blow Molding Machine Automatic For 1L - 5L 0

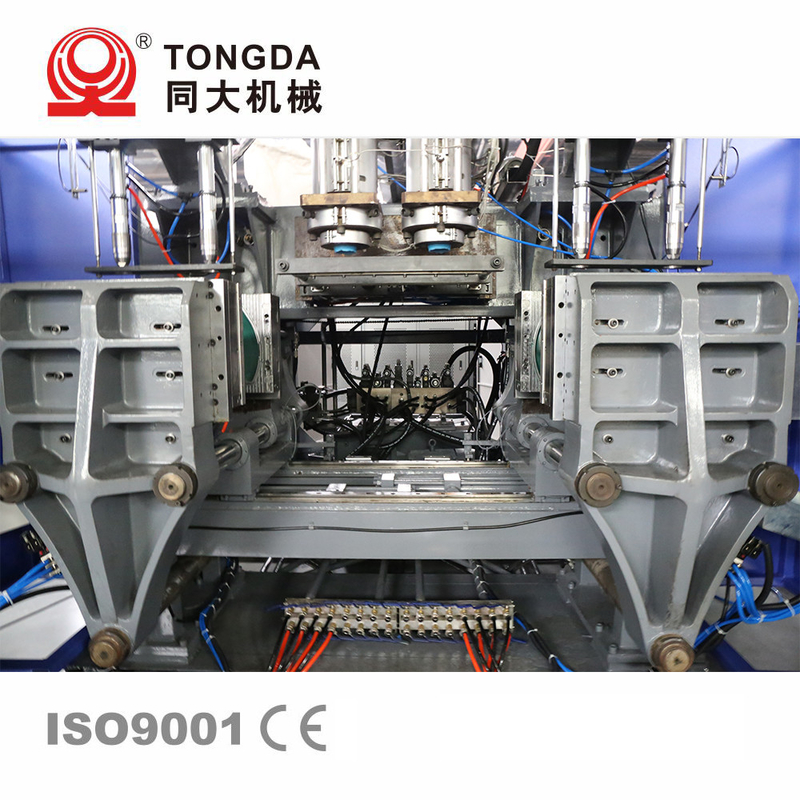

Parison controller we use MOOG 200 Points or AUTOMATA 300 Points, with extremely sensitive action.

Touch screen we use large size INNOVANCE

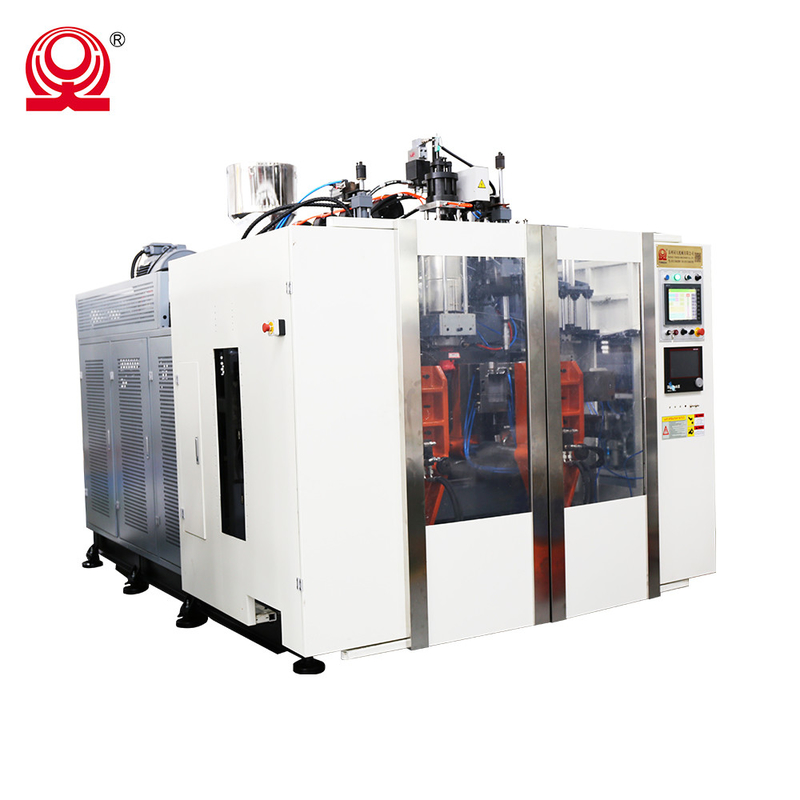

Two Station Plastic Hollow Blow Molding Machine Automatic For 1L - 5L 1





Company Information



Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. We have more than 23 years experience always specialized in R&D and manufacturing of extrusion blow molding machine.

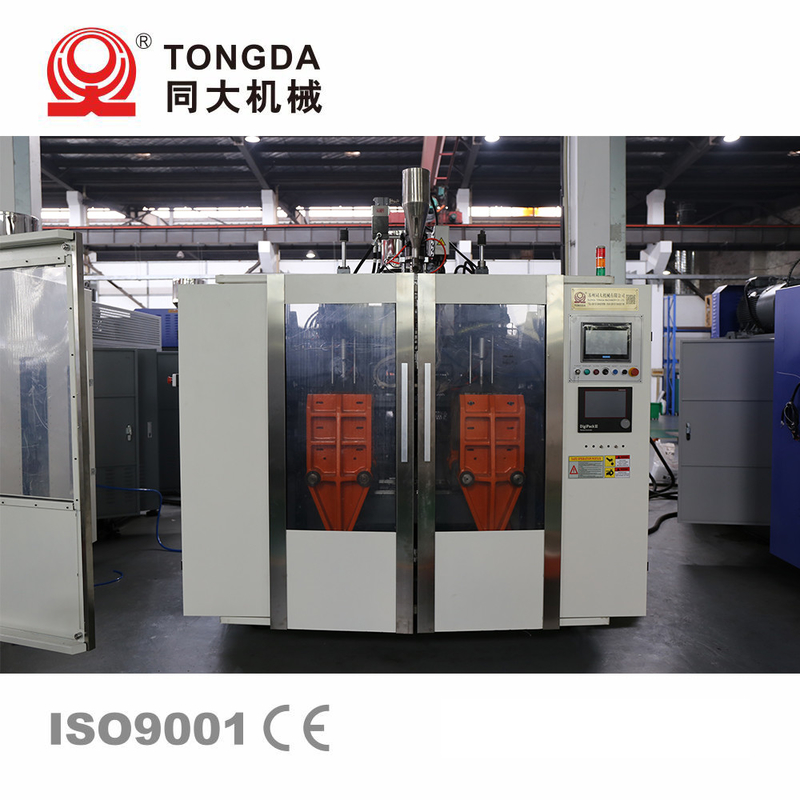

Two Station Plastic Hollow Blow Molding Machine Automatic For 1L - 5L 2

Two Station Plastic Hollow Blow Molding Machine Automatic For 1L - 5L 3



After-sales services



During epidemic period, our team have helped customers start up more than 250sets new Tongda machines by online service, to help customer run the machine as soon, our after sales team helped around 3 hours till the mid-night.

Two Station Plastic Hollow Blow Molding Machine Automatic For 1L - 5L 4



FAQ



TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function


Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.



Q: How long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
