2L HDPE Extrusion Hollow Blow Molding Machine Fully Automatic For Plastic Bottle

2L HDPE Extrusion Hollow Blow Molding Machine Fully Automatic For Plastic Bottle

  • High Light

    2L Hollow Blow Molding Machine

    ,

    HDPE Hollow Blow Molding Machine

    ,

    Extrusion Blowing Machine For Plastic Bottle

  • Condition
    New
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2020
  • Warranty Of Core Components
    1 Year
  • Core Components
    PLC, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
  • Plastic Processed
    PP, HDPE, PC, ABS, PVC, PE, EVA, PA, ABS/PP, PE/PP, HDPE/PP, PETG
  • Year
    2020
  • Voltage
    Customized To Customer Needs
  • Dimension(L*W*H)
    2.78m*1.55m*2.35m
  • Hollow Part Volume
    1-2L
  • Clamping Force (kN)
    44
  • PLC Brand
    MITSUBISHI
  • Screw L/D Ratio
    25
  • Screw Diameter (mm)
    50 Mm
  • Output (kg/h)
    50 Kg/h
  • Automation
    Automatic
  • No. Of Screw Heating Zone
    3
  • Screw Heating Power(kW)
    6.8 KW
  • Extruder Motor Power(kW)
    11 KW
  • Mold Platen Size(Width)(mm)
    300 Mm
  • Mold Platen Size(Height)(mm)
    320 Mm
  • Air Pressure(MPa)
    0.6 MPa
  • Air Comsumption(m³/min)
    0.4 M³/min
  • Die Head Heating Power(kW)
    7 KW
  • Accumulator Capacity(L)
    0 L
  • Power (kW)
    30.5
  • Weight (T)
    4
  • Key Selling Points
    Long Service Life
  • Warranty
    1 Year
  • Applicable Industries
    Energy & Mining, Hotels, Home Use, Machinery Repair Shops, Restaurant, Food & Beverage Factory, Farms
  • Showroom Location
    Egypt, Indonesia, Pakistan, Thailand, Chile, Algeria
  • Rotary Cylinder Brand
    FESTO
  • Station
    Single
  • Suitable Bottle
    1-2L
  • Key Words
    Automatic Extrusion Blow Moulding Machine
  • Packing
    Wooden
  • Use
    Hollow Moulding
  • Parison Control
    MOOG
  • Max. Size Of Mold
    360*320
  • Hydraulic Valve
    Yuken
  • Product Name
    Automatic Blowing Molding Machine
  • Port
    Shanghai
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    TONGDA HTS
  • Minimum Order Quantity
    1SET
  • Price
    $29,999.00/Sets >=1 Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

2L HDPE Extrusion Hollow Blow Molding Machine Fully Automatic For Plastic Bottle

TONGDA HTS 2L Fully automatic hdpe extrusion plastic bottle blow moulding blowing bottle machine for bottles



Product Description



This machine is suitable for the small bottles.The main parts of this machine are designed and manufactured by ourself.E.g:ly chemical vegetable wash fruit cleaning /cream lotion cosmetic bottle



Technical Parameters



MODEL Units HTS-2L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 5
Output of HDPE kg/h 50
Clamping force kn 44
Screw diametre mm 50
Screw heating power kw 6.8
Blow pressure mpa 0.6
Size of machine m 2.78*1.55*2.35



Product Details



Plasticizing system can be designed for multi-layers, 1-4 layers are definitely available, and have high degree customization space.

Honeycomb ventilation holes to ensure better heat dissipation performance.

2L HDPE Extrusion Hollow Blow Molding Machine Fully Automatic For Plastic Bottle 0

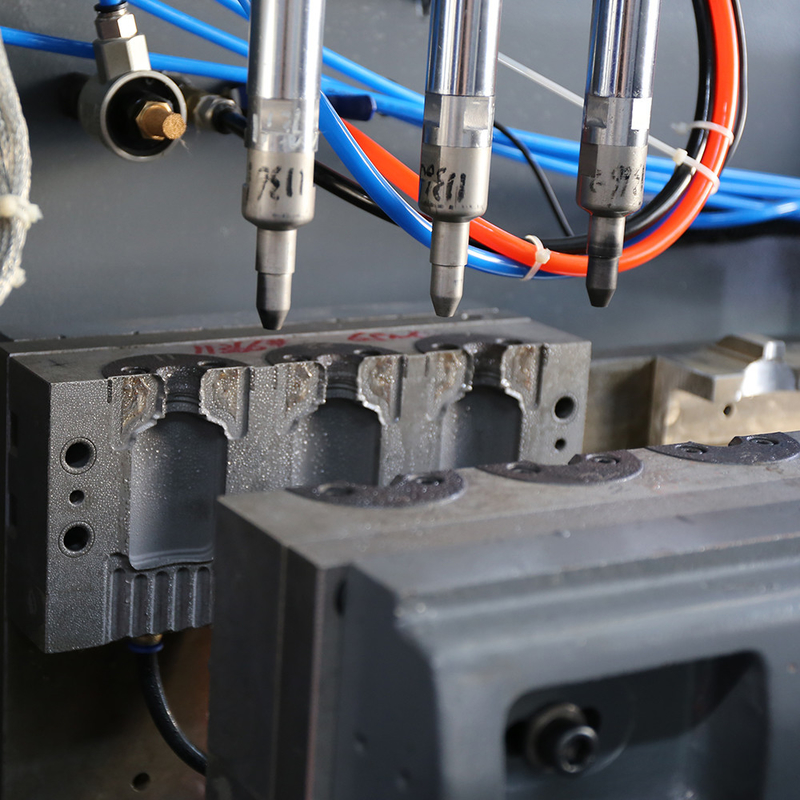

Air valve enlarged to ensure better shaping.

Multi-layer, durable tubes are used

2L HDPE Extrusion Hollow Blow Molding Machine Fully Automatic For Plastic Bottle 1



Company Information



"Working Together to Grow Together" is the spirit of Suzhou Tongda Machinery, to cooperate with us and we are always at your service to provide you with strong support.

2L HDPE Extrusion Hollow Blow Molding Machine Fully Automatic For Plastic Bottle 2

2L HDPE Extrusion Hollow Blow Molding Machine Fully Automatic For Plastic Bottle 3



After-sales services



During epidemic period, our team have helped customers start up more than 250sets new Tongda machines by online service, to help customer run the machine as soon, our after sales team helped around 3 hours till the mid-night.

2L HDPE Extrusion Hollow Blow Molding Machine Fully Automatic For Plastic Bottle 4



FAQ



Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.


Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.


Q: How big is your company?
A: our company has 400 employees and A building area of 100,000 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1999.
