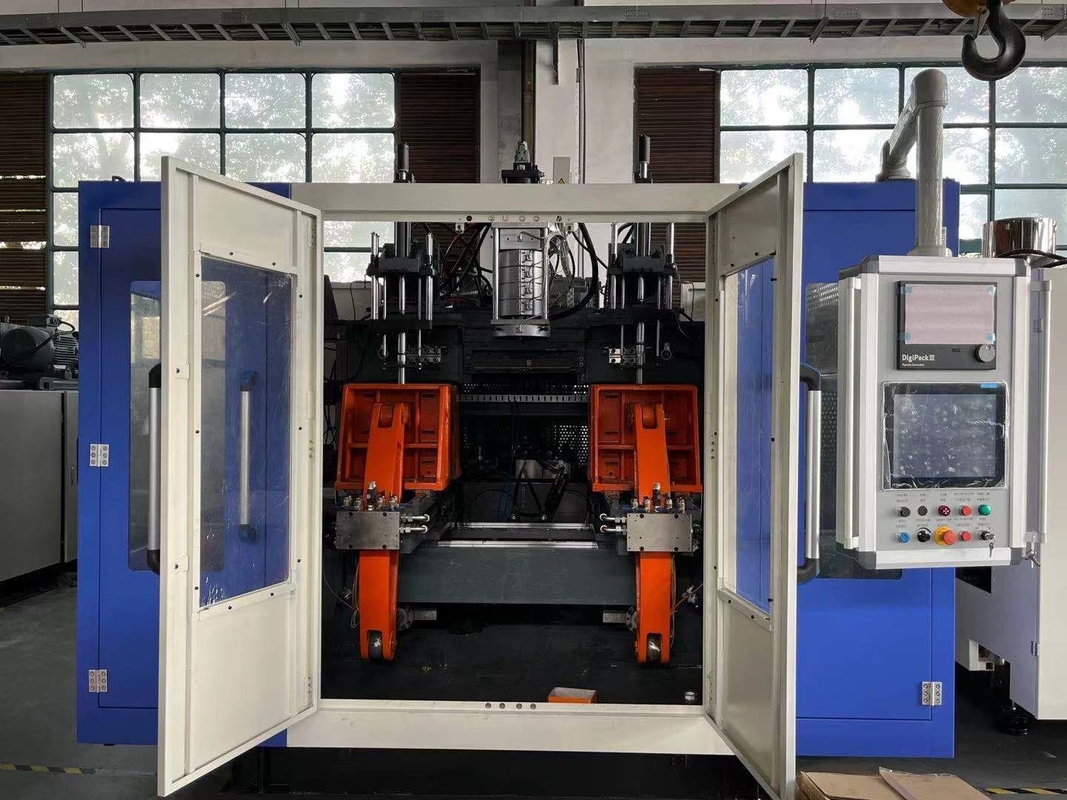

110kg/H Extrusion Blow Molding Machine For 5L HDPE Drum Jerry Can

110kg/H Extrusion Blow Molding Machine For 5L HDPE Drum Jerry Can

  • High Light

    110kg/H Extrusion Blow Molding Machine

    ,

    HDPE Extrusion Blow Bottle Molding Machine

    ,

    5L HDPE Extrusion Blow Molding Machine

  • Condition
    New
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2020
  • Warranty Of Core Components
    1 Year
  • Core Components
    PLC, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
  • Application
    Bottle
  • Plastic Processed
    PP, HDPE, PC, ABS, PVC, PE, EVA, PA, ABS/PP, PE/PP, HDPE/PP, PETG
  • Year
    2020
  • Voltage
    Customized To Customer Needs
  • Dimension(L*W*H)
    3.2m*2.12m*2.55m
  • Hollow Part Volume
    1-5L
  • Clamping Force (kN)
    110
  • PLC Brand
    MITSUBISHI
  • Screw L/D Ratio
    25
  • Screw Diameter (mm)
    80 Mm
  • Output (kg/h)
    110 Kg/h
  • Automation
    Automatic
  • No. Of Screw Heating Zone
    4
  • Screw Heating Power(kW)
    19 KW
  • Extruder Motor Power(kW)
    30 KW
  • Mold Platen Size(Width)(mm)
    440 Mm
  • Mold Platen Size(Height)(mm)
    420 Mm
  • Air Pressure(MPa)
    0.6 MPa
  • Air Comsumption(m³/min)
    0.4 M³/min
  • Die Head Heating Power(kW)
    10.7 KW
  • Accumulator Capacity(L)
    0 L
  • Power (kW)
    57.8
  • Weight (T)
    8
  • Key Selling Points
    Long Service Life
  • Warranty
    1 Year
  • Applicable Industries
    Energy & Mining, Hotels, Home Use, Machinery Repair Shops, Restaurant, Food & Beverage Factory, Farms
  • Showroom Location
    Egypt, Indonesia, Pakistan, Thailand, Chile, Algeria
  • Station
    Double Station
  • Suitable Bottle
    1-5L
  • Use
    Hollow Moulding
  • Parison Control
    MOOG
  • Max. Size Of Mold
    440*420
  • Hydraulic Valve
    Yuken
  • Color
    White
  • Port
    Shanghai
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    TONGDA HTSII5L
  • Minimum Order Quantity
    1SET
  • Price
    $39,999.00 - $54,999.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

110kg/H Extrusion Blow Molding Machine For 5L HDPE Drum Jerry Can

TONGDA Extrusion Blow Molding Machine For 5L HDPE Drum Jerry Can



Product Description of HTSII-5L



This is our normal series machine.It is double station. This machine is suitable for the jerry can.It can be equipped with several die-heads and then it is also suitable for small bottles. E.g:Jerry can / canister / continuous die head / HDPE plastic additive bottle car brake oil can



Technical Parameters of HTSII-5L



MODEL Units HTSII-5L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 5
Output of HDPE kg/h 110
Clamping force kn 110
Screw diametre mm 80
Screw heating power kw 19
Blow pressure mpa 0.6
Size of machine m 4.1*2.6*2.7



Product Details of HTSII-5L



Stable and efficient clamping system

Adjustable rotary type blow pin unit, suitable for oblique bottles

110kg/H Extrusion Blow Molding Machine For 5L HDPE Drum Jerry Can 0

Air valve enlarged to ensure better shaping.

Multi-layer, durable tubes are used

110kg/H Extrusion Blow Molding Machine For 5L HDPE Drum Jerry Can 1



Company Information



Suzhou Tongda Machinery have more than 20,000m2 factory buildings and other facilicities and a new intelligent manufacturing factory with 55,000m2 area. The I phase 20,000m2 area factory will be put into use in June, 2022. And on May 19th, 2022, we just held the II phase intelligent manufacturing base groundbreaking ceremony.

110kg/H Extrusion Blow Molding Machine For 5L HDPE Drum Jerry Can 2110kg/H Extrusion Blow Molding Machine For 5L HDPE Drum Jerry Can 3



After-sales services



During epidemic period, our team have helped customers start up more than 250sets new Tongda machines by online service, to help customer run the machine as soon, our after sales team helped around 3 hours till the mid-night.

110kg/H Extrusion Blow Molding Machine For 5L HDPE Drum Jerry Can 4



FAQ



TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function


Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.


Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
