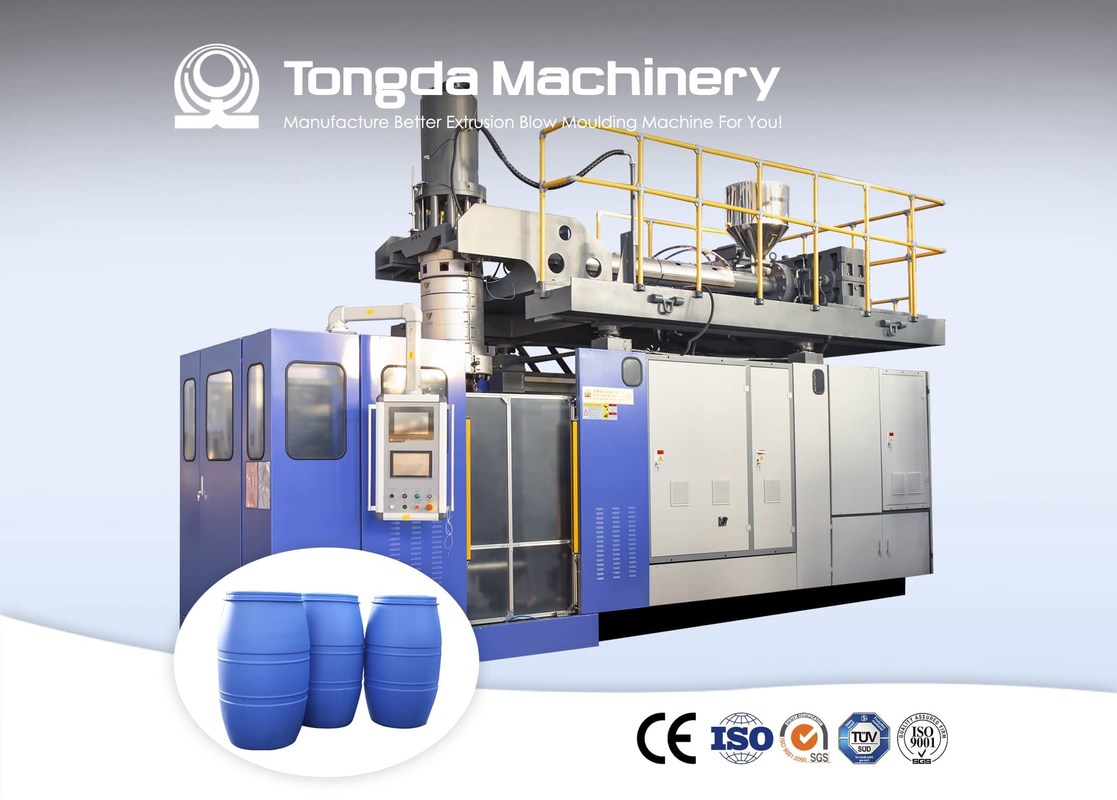

Big Drums Extrusion Blow Molding Machine 120L 21KW

Big Drums Extrusion Blow Molding Machine 120L 21KW

  • High Light

    Big Drums Extrusion Blow Molding Machine


    Extrusion Blow Molding Machine 120L


    21 KW Extrusion Blow Molding Machine

  • Max. Product Volume
  • Output Of HDPE
  • Capacity Of Accumulator Head
  • Screw Heating Power
  • Blow Pressure
  • Water Consumption
    100 L/min
  • Place of Origin
  • Brand Name
  • Certification
    CE, ISO9001
  • Model Number
  • Minimum Order Quantity
  • Price
    USD 94,499~99,999 per set
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability

Big Drums Extrusion Blow Molding Machine 120L 21KW

Extrusion Blow Molding Machine Making Big Drums
Product Description of TDB-80F
Our TDB-80F model machine is one of our hot sale model extrusion blow molding machine. It is with wide applilcations,  not only can produce plastic containers, such as 50L-120L open top single ring chemical drums, also can produce diffent usage plastic hollow products, such as HDPE dustbin bucket, plastic female mannequin half body, children mannequin full body, sports items, toys, furniture, industrial products, etc.
Equipped with servo motor not only for hydraulic system, also the extruder, so it will save 10-30% energy.
Our efficient plasticizing mixing screw, which ensures the plastic is fully and evenly plasticized, then improve product surface quality and effectively prevent screw temperature rise.
Technical Parameters of TDB-80F

MODEL Units TDB-80F Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 120
Output of HDPE kg/h 180
Clamping force kn 440
Screw diametre mm 100 25:1
Screw heating power kw 21
Blow pressure mpa 0.6
Size of machine m 5.42×2.45×3.9

Product Details of TDB-80F
Big Drums Extrusion Blow Molding Machine 120L 21KW 0
Mold temperature controller, can monitor the temperature more precisely
Servo pump, with significant energy saving effect
Big Drums Extrusion Blow Molding Machine 120L 21KW 1

Die head: Is designed by our own R&D department, manufactured and assembled by our assembling center, to ensure the confidentiality of the core technology and the manufacturing precision, and at the same time facilitate the later debugging and maintenance.
Company Information
Big Drums Extrusion Blow Molding Machine 120L 21KW 2
Now we have more than 50 R & D personnel, including 1 national science and technology talent, 4 senior masters,15 bachelors, hosting the development of two national standards and participating in the formulation of a national standard.

After-sales Service


Big Drums Extrusion Blow Molding Machine 120L 21KW 3
Our company have a service team with 35 qualified engineers can fly overseas to do the installation and commissioning.


Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.
Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
Q: How big is your company?
A: our company has 400 employees and A building area of 100,000 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1999.
