Tongda Small Bottle Blowing Machine 3L Plastic Manufacturing 2 Station

Tongda Small Bottle Blowing Machine 3L Plastic Manufacturing 2 Station

  • High Light

    19 kW Bottle Blowing Machine

    ,

    3L Plastic Bottle Blowing Machine

    ,

    110 kg/h Plastic Bottle Manufacturing Machine

  • Clamping Force (kN)
    70
  • Output (kg/h)
    110 Kg/h
  • Screw Heating Power(kW)
    19 KW
  • Extruder Motor Power(kW)
    30 KW
  • Air Pressure(MPa)
    0.6 MPa
  • Power (kW)
    72
  • Weight (T)
    8
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    TONGDA HTSll3L
  • Minimum Order Quantity
    1SET
  • Price
    $37,999.00 - $49,999.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    70-80 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

Tongda Small Bottle Blowing Machine 3L Plastic Manufacturing 2 Station

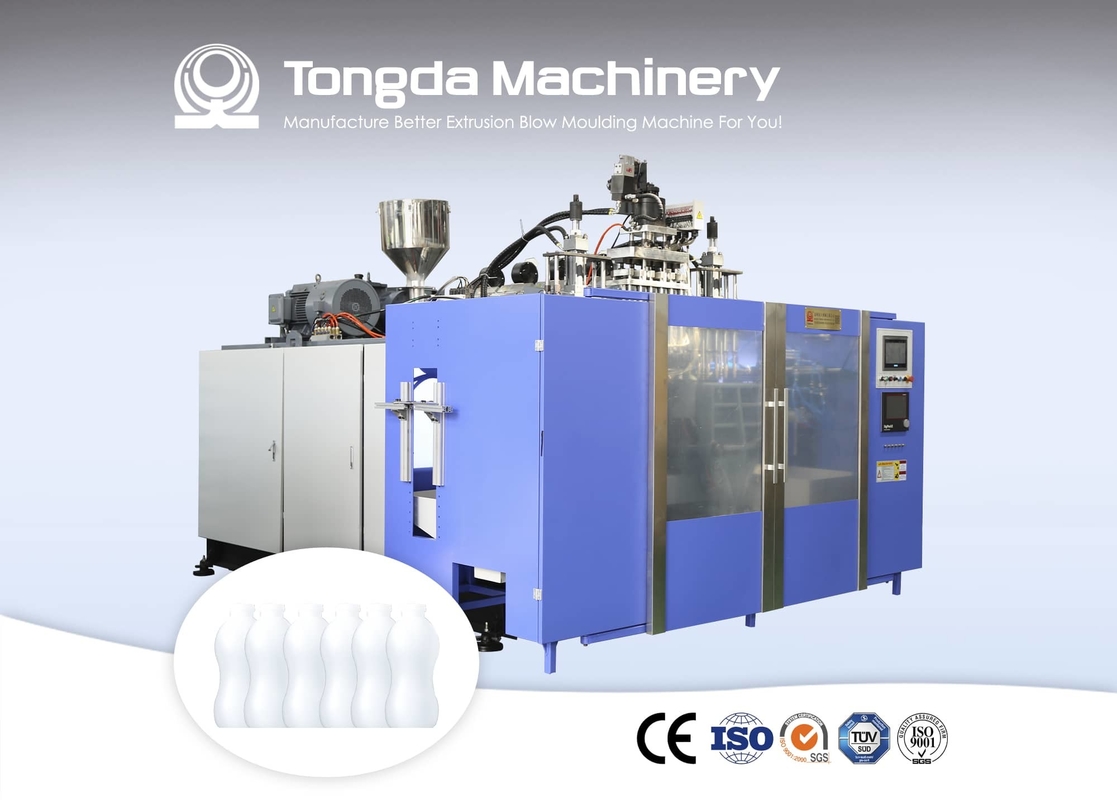

TONGDA HTSII-3L Fully Automatic plastic small bottle blow moulding machine

Product Description

Our HTSII-3L machine is double station machine,continuous type die head with high efficiency. With 4 and 6 heads die head, make it suitable for making milk round & small bottles and other small bottles.
Equipped with robot arms to take out the bottles, then connect conveyors to the leak tester, and auto packing table, can realize no worker, fully automatic line.

Technical Parameters

MODEL Units HTSII-3L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 0.35
Output of HDPE kg/h 110
Clamping force kn 70
Screw diametre mm 80 25:1
Screw heating power kw 19
Blow pressure mpa 0.6
Size of machine m 4.1×2.76×2.5




Product Details

Tongda Small Bottle Blowing Machine 3L Plastic Manufacturing 2 Station 0

Air valve enlarged to ensure better shaping.

Multi-layer, durable tubes are used

Tongda Small Bottle Blowing Machine 3L Plastic Manufacturing 2 Station 1

Plasticizing system can be designed for multi-layers, 1-4 layers are definitely available, and have high degree customization space.

Honeycomb ventilation holes to ensure better heat dissipation performance.

Tongda Small Bottle Blowing Machine 3L Plastic Manufacturing 2 Station 2

Stable and efficient clamping system

Adjustable rotary type blow pin unit, suitable for oblique bottles



After-sales services



During epidemic period, our team have helped customers start up more than 250sets new Tongda machines by online service, to help customer run the machine as soon, our after sales team helped around 3 hours till the mid-night.

Tongda Small Bottle Blowing Machine 3L Plastic Manufacturing 2 Station 3


Company Information

Tongda Small Bottle Blowing Machine 3L Plastic Manufacturing 2 Station 4
Suzhou Tongda Machinery Co., Ltd has established Engineering Technology Research and Development Center, and Jiangsu Province excellent Graduate work station. Jiangsu Enterprise Research and Development Center, Jiangsu Province Extrusion blow Molding Technology Technology Center, Jiangsu Province post-doctoral innovation practice base and other R & D platforms. That means constantly exploring the expansion of new areas.
Tongda Small Bottle Blowing Machine 3L Plastic Manufacturing 2 Station 5


Why Choose Us


Service Marketing Network

1.Over four thousand Tongda machines have been serving customers all over the world.
2.The company has service outlets in Russia, Egypt, Jordan, Thailand, Chile, Indonesia and Algeria.
3.our company has exported over 4000 units machine to more than 89 countries and regions, such as USA, UK, Australia, Greece,Poland.Russia,Belarus,South America, South Africa,Indonesia, Egypt, Syria, Ethiopia.We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.

FAQ

TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function

Advantages of TONGDA tech teams
1. 600 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.

Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
