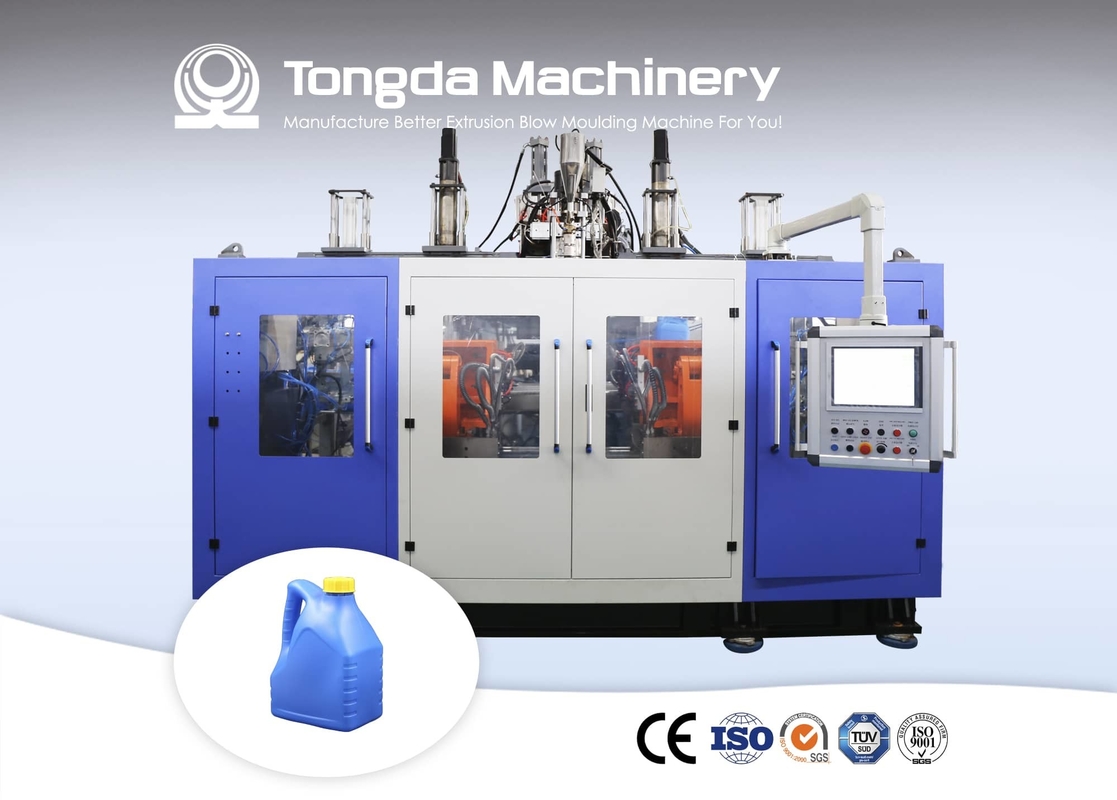

3 Layer Plastic Blow Molding Machine Jerry Can HDPE Drum

3 Layer Plastic Blow Molding Machine Jerry Can HDPE Drum

  • High Light

    Plastic Blow Molding Machine 3 Layer

    ,

    HDPE Plastic Drum Blow Molding Machine

    ,

    Jerry Can Drum Blow Molding Machine

  • Max. Product Volume
    30L
  • Mold Moving Stroke
    750mm
  • Clamping Force
    250KN
  • No.of Heating Zone(Screw)
    5
  • Total Power
    156KW
  • Water Consunption
    100L/min
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    HSII-30L
  • Minimum Order Quantity
    1SET
  • Price
    $129,999.00 - $149,999.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

3 Layer Plastic Blow Molding Machine Jerry Can HDPE Drum

TONGDA HSll-30L HDPE 3 Layer Drum Plastic Jerry Can Production Manufacturing Blow Molding Making Machine


Product Description



This is our best series machine.

Suitable for the production of 20L~30L stacking jerry can, PP 5 gallon water bottles, etc.

Continuous type die head, with shorter cycle time.

Suitable to be equipped with multi-layer to meet your production demand.

If you want high automation for the machine, then equip 3 dimensional robot arm, finished product conveyor go through the machine body to save space.



Technical Parameters



MODEL
Units
HSII-30L
Remarks: The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.
Max. Product volume
L
5

Output of HDPE
kg/h
110

Clamping force
kn
110

Screw diametre
mm
80

Screw heating power
kw
19

Blow pressure
mpa
0.6

Size of machine
m
4.5x2.7x3.1





Product Details



TONGDA HSll-30L Automatic 25L big bottle blow mold Extrusion Plastic Blow Molding Machine operator save 0

Optional 3D Manipulator

Reduce manual sorting costs and improve productino efficiency



3 Layer Plastic Blow Molding Machine Jerry Can HDPE Drum 1



CE Standard modularized components, easy replace







After-sales Service



Before epidemic, we send engineers to customers factory to do installation, debugging.



And from the COVID-19, sending out engineers is not convenient, so we started to do after-sales service by online training.




Company Information



Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. We have more than 23 years experience always specialized in R&D and manufacturing of extrusion blow molding machine.

3 Layer Plastic Blow Molding Machine Jerry Can HDPE Drum 2


From negotiation to determining the optimal production plan for customers, from equipment installation and commissioning, maintenance, system operation to production process, we provide you with reasonable suggestions and perfect solutions at each stage, as well as fast spare parts supply and convenience. technical service and support.





Why Choose Us
  • Over 7000sets Tongda machines are serving customers all over the world
  • Having service office in Russia, Egypt, Jordan, Thailand, Chile, Indonesia and Algeria
  • We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.



FAQ



Q: How big is your company?
A: our company has 400 employees and A building area of 100,000 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1999.



Q: What brand parison controller youre using?
A: We are using MOOG 200Points and Automata 300Points parison controller.
