1000L IBC Tank Extrusion Blow Molding Machine Servo Hydraulic Automatic Big Blow

1000L IBC Tank Extrusion Blow Molding Machine Servo Hydraulic Automatic Big Blow

  • High Light

    IBC Tank Extrusion Blow Molding

    ,

    1000L Extrusion Blow Molding Machine

    ,

    550 KG/H Extrusion Blow Molding Machine

  • Die Head
    Single Head Accumulator Type Die Head
  • Max. Product Volume
    1200L
  • Output Of HDPE
    550KG/Hour
  • Platen Distance
    1100-2700
  • Clamping Force
    1300KN
  • Hydraulic Pump Driving Power
    42.5+11KW
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    TDB-1200F
  • Minimum Order Quantity
    1SET
  • Price
    $60,000.00 - $70,000.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc. for our extrusion blow molding machine and auxiliary equipments
  • Delivery Time
    50-60 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year extrusion blow molding machine

1000L IBC Tank Extrusion Blow Molding Machine Servo Hydraulic Automatic Big Blow

1000L IBC Tank Extrusion Blow Molding Servo Hydraulic Extrusion Automatic Big Blow Molding Machine



Product Description



Our TDB-1200F extrusion blow molding machine, is mainly for producing IBC tanks size up to 1200L, we can make the extrusion blow molding machine with single layer and double layer configuration for customers different demand requirement.



This model extrusion blow molding machine is equipped with servo hydraulic system, so that is energy saving.

Many customers are using our single layer and double layer TDB-1200F extrusion blow molding machine producing their IBC tanks, and leading the market.



Technical Parameters of our TDB-1200F Extrusion Blow Molding Machine



MODEL
Units
TDB-1200F
Remarks: we will customize the most suitable extrusion blow molding machine for you according to your requirements
Max. Product volume
L
1200
Output of HDPE
kg/h
550
Clamping force
kn
1300
Screw diametre
mm
100*2
Screw heating power
kw
25*2
Blow pressure
mpa
0.6


Product Details of our TDB-1200F Extrusion Blow Molding Machine



1000L IBC Tank Extrusion Blow Molding Machine Servo Hydraulic Automatic Big Blow 0

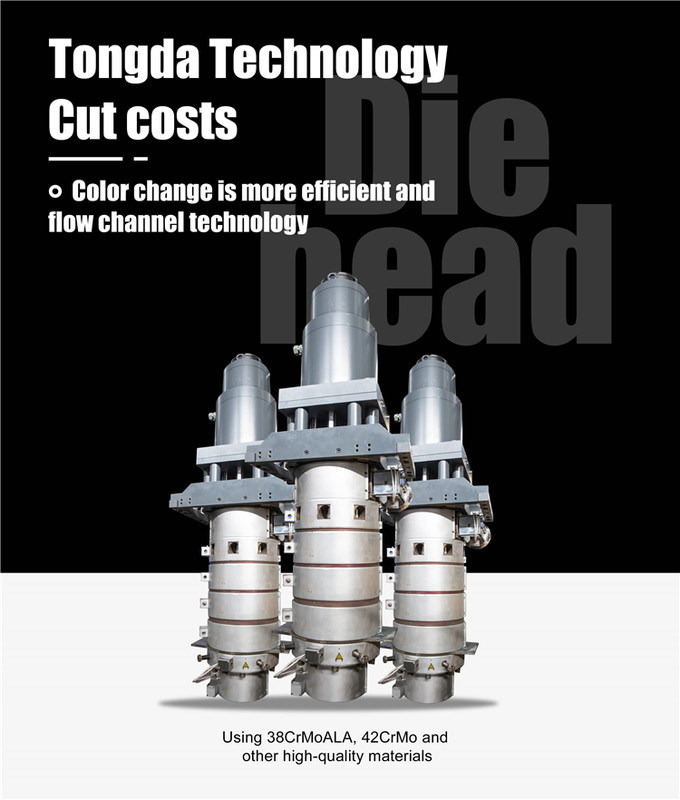

The die head of our extrusion blow molding machines are designed by our own R&D department, manufactured and assembled by our assembling center, to ensure the confidentiality of the core technology and the manufacturing precision, and at the same time facilitate the later debugging and maintenance.



Company Information



1000L IBC Tank Extrusion Blow Molding Machine Servo Hydraulic Automatic Big Blow 1

Suzhou Tongda Machinery is a professional manufacturer of extrusion blow molding machine with over 23 years experience. And we have won the NO. 1 in China domestic extrusion blow molding machine field for continuously 10 years.

We have sold more than 7,000sets machines to customers from more than 120 countries and regions, annual output of extrusion blow molding machine is 800sets/year now.

1000L IBC Tank Extrusion Blow Molding Machine Servo Hydraulic Automatic Big Blow 2

In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been focusing on the research, development and product application of extrusion blow molding machines. The factory covers an area of more than 80 acres of land and has more than 350 employees.

Warmly welcome new and old customers to visit, to guide.



Service Network

1000L IBC Tank Extrusion Blow Molding Machine Servo Hydraulic Automatic Big Blow 3

1000L IBC Tank Extrusion Blow Molding Machine Servo Hydraulic Automatic Big Blow 4

Our Machinery has been keeping good cooperative relationship with customers since our establishing.

The satisfaction of our customers are the pursuit of every member of Tongda,The only way we service in the competitive market is to help our customers to full fill their requirement.



FAQ



TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function
