Plastic HDPE Jerry Can Blow Molding Machine Automatic 100 Mm 180 Kg/H

Plastic HDPE Jerry Can Blow Molding Machine Automatic 100 Mm 180 Kg/H

  • High Light

    Plastic HDPE Jerry Can Making Machine

    ,

    180 kg/h Jerry Can Blow Molding Machine

    ,

    100mm HDPE Can Blow Molding Machine

  • Dimension(L*W*H)
    4.9*3.1*3.2
  • Clamping Force (kN)
    158
  • Screw L/D Ratio
    25
  • Screw Diameter (mm)
    100 Mm
  • Output (kg/h)
    180 Kg/h
  • Max. Size Of Mold
    590*500
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    HSII-12L/2
  • Minimum Order Quantity
    1SET
  • Price
    $75,999.00/Sets >=1 Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    70 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

Plastic HDPE Jerry Can Blow Molding Machine Automatic 100 Mm 180 Kg/H

Jerry Can HDPE Plastic Making Machine Automatic Blow Molding Machine

HSII-12L Description



This machine is suitable for 5L -10L product. It is equipped with servo motor.The main parts of this machine are designed and manufactured by ourself. We do the independent R&D and inspection. If you have other special requirements, we can provide customized services for you.

Technical Parameters of TDB-50F

MODEL Units HSII-12L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 12
Output of HDPE kg/h 180
Clamping force kn 158
Screw diametre mm 100 25:1
Screw heating power kw 21
Blow pressure mpa 0.6
Size of machine m 4.9×3.1×3.2




Product Details

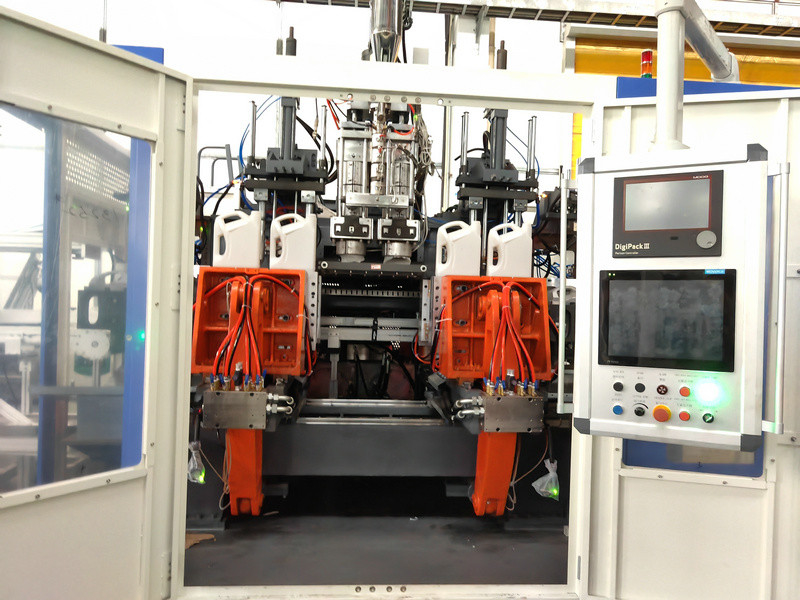

Servo Valve:

High Speed, high precision, energy-efficient, advanced servo system

Plastic HDPE Jerry Can Blow Molding Machine Automatic 100 Mm 180 Kg/H 0

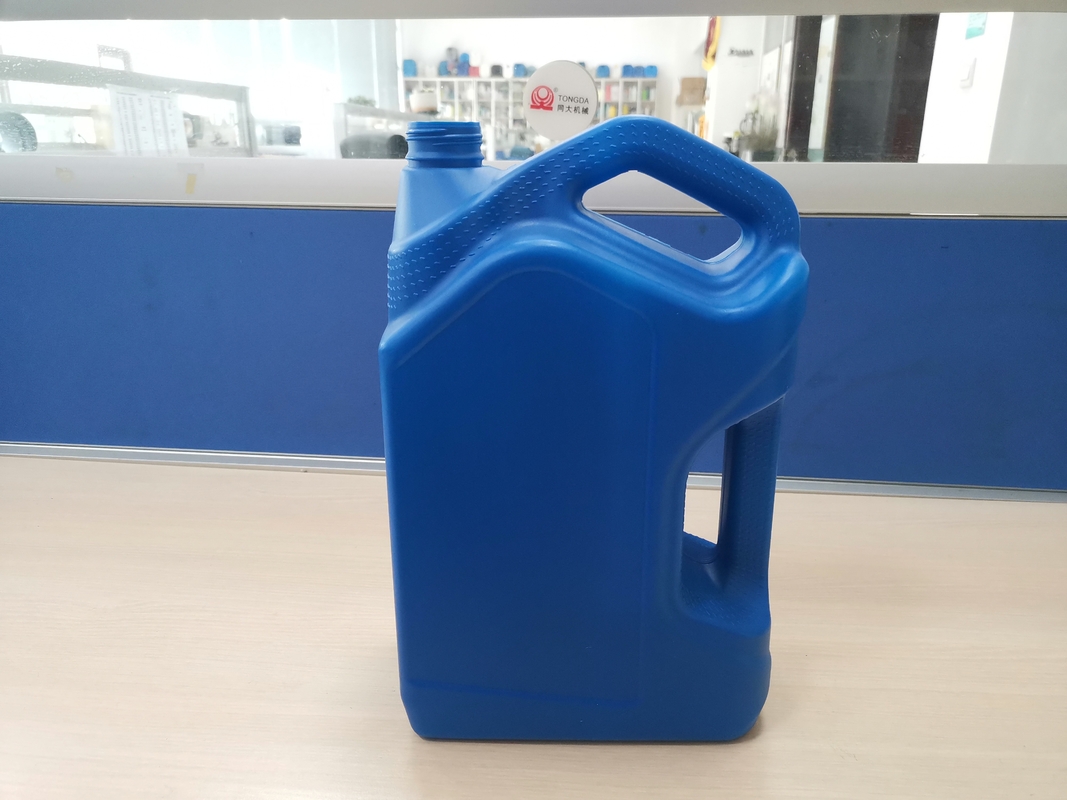

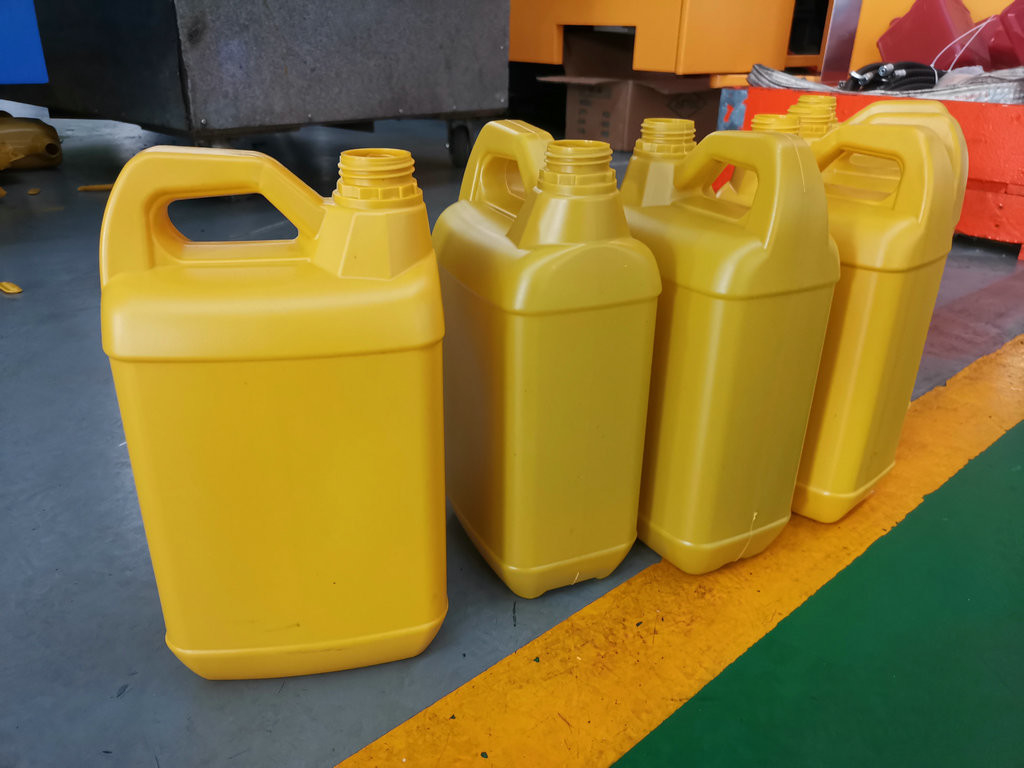

Bottle mouth details:The surface of the bottle mouth after the flash are perfect. Comfortable and smooth.

Handle:0ne-time molding, can achieve continuous production and meet GMP standards.

Labeling :In-Mold labeling is accurate and fast, ensuring production quality and improving production efficiency.

Quality Control:The perfect quality control system controls all aspects of prducion step by step, realizes the whole process quality control of products, and provides a strong guarantee for product quality.
