TONGDA TDB-120F 120L Blue Barrel Drum Extrusion Blowing Machinery Plastic Medical Bed Board Making Blow Molding Machine
Product Description
Our TDB-120F model extrusion blow molding machine is with wide applications. Not only suitable for producing plastic big barrel, open top containers, such as 50L-120L open top single ring chemical drums, also are suitable for extrusion molding diffent usage plastic hollow products, such as medical bed board, hollow rescue stretcher, plastic female mannequin half body and full body, table sheet, desk board, etc.
Equipped with servo motor not only for hydraulic system, also the extruder, so it will save 10-30% energy.
Our efficient plasticizing mixing screw, which ensures the plastic is fully and evenly plasticized, then improve product surface quality and effectively prevent screw temperature rise.
Technical Parameters
| MODEL | Units | TDB-120F | Remarks: we will customize the most suitable machinery according to your requirements |
| Max. Product volume | L | 120 | |
| Output of HDPE | kg/h | 180 | |
| Clamping force | kn | 740 | |
| Screw diametre | mm | 100 25:1 | |
| Screw heating power | kw | 21 | |
| Blow pressure | mpa | 0.6 | |
| Size of machine | m | 5.8×2.9×4.3 |
Product Details
Electronic control system: Japanese Mitsubishi PLC, HMI operation screen(Chinese & English), All data settings, changes, search, monitoring, fault diagnosis and other functions can be achieved on the touch screen, touchless working principle, durable components.

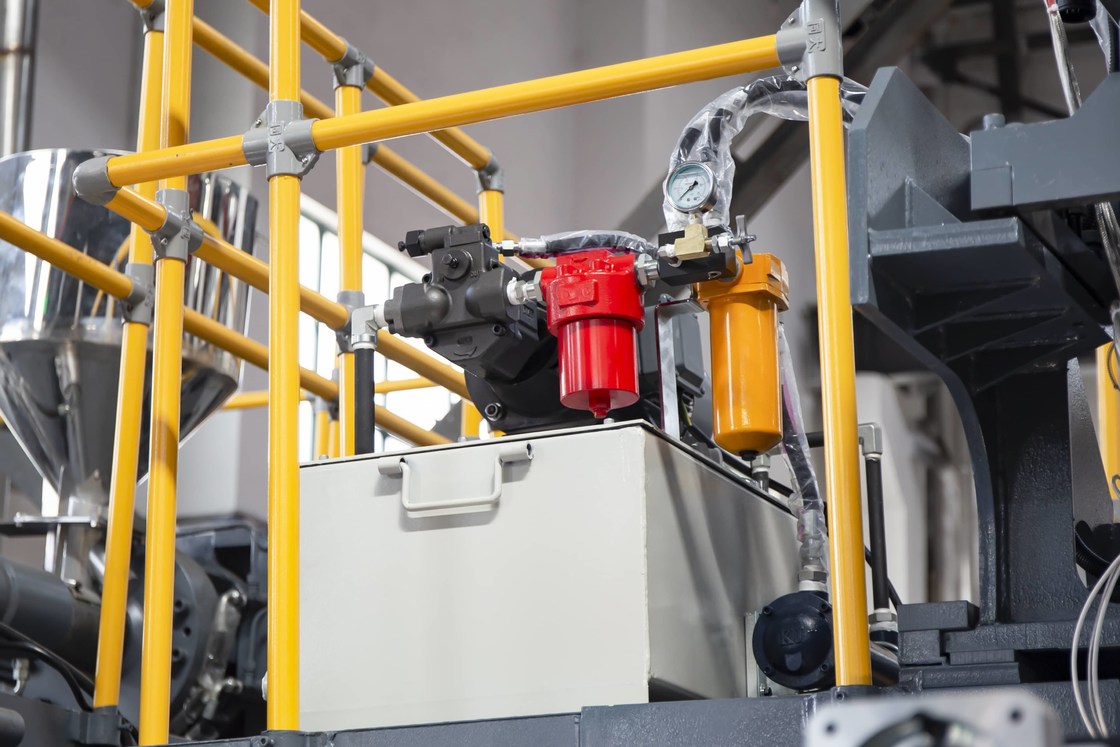

Hydraulic system: proportional pressure control, equipped with famous brand hydraulic components, which are stable and reliable.
Excellent flow channel technology and precise machining accuracy, make the color change and material change more efficient. From dark to white, normally can be completed within 3hours. Much quicker than other suppliers. Save cost for you if you need to produce different color products.
Company Information
Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car.
In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been focusing on the research, development and product application of extrusion blow molding machines.
Suzhou Tongda Machinery have more than 20,000m2 factory buildings and other facilicities and a new intelligent manufacturing factory with 55,000m2 area. The I phase 20,000m2 area factory will be put into use in June, 2022. And on May 19th, 2022, we just held the II phase intelligent manufacturing base groundbreaking ceremony.
