4L 1 Gallon Water Bottle Blow Molding Machine HDPE PP PVC Bottle Making Machine

4L 1 Gallon Water Bottle Blow Molding Machine HDPE PP PVC Bottle Making Machine

  • High Light

    4L Water Bottle Blow Molding Machine

    ,

    PP Water Bottle Blow Molding Machine

    ,

    1 Gallon PVC Bottle Making Machine

  • Station
    Double Station
  • Suitable Bottle
    Below 5L
  • Screw Diameter (mm)
    80 Mm
  • Screw L/D Ratio
    25
  • Output Of HDPE
    110 Kg/h
  • Clamping Force
    110KN
  • Mold Moving Stroke
    450mm
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    HTSII-5L
  • Minimum Order Quantity
    1SET
  • Price
    $39,999.00 - $54,999.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

4L 1 Gallon Water Bottle Blow Molding Machine HDPE PP PVC Bottle Making Machine

TONGDA HTSII5L 4L Water Bottle 1 Gallon Water Bottle Making Machine HDPE PVC PETG PP Extrusion Blowing Machine

Product Description

This HTS series machine is our most cost effective series machine. It is suitable for producing HDPE bottles size below 5 liters. If equipped with multi head die-heads, it also suitable for producing small plastic bottles blow molding.

The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.




Technical Parameters
MODEL
Units
HTSll-5L
Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume
L
5

Output of HDPE
kg/h
110

Clamping force
kn
110

Screw diametre
mm
80

Screw heating power
kw
19

Blow pressure
mpa
0.6

Size of machine
m
4.1*2.6*2.7

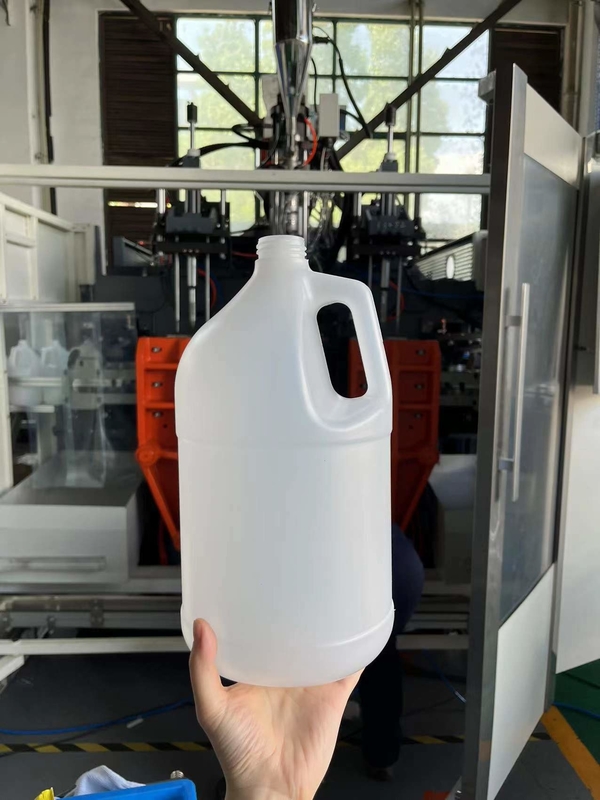

4L 1 Gallon Water Bottle Blow Molding Machine HDPE PP PVC Bottle Making Machine 0

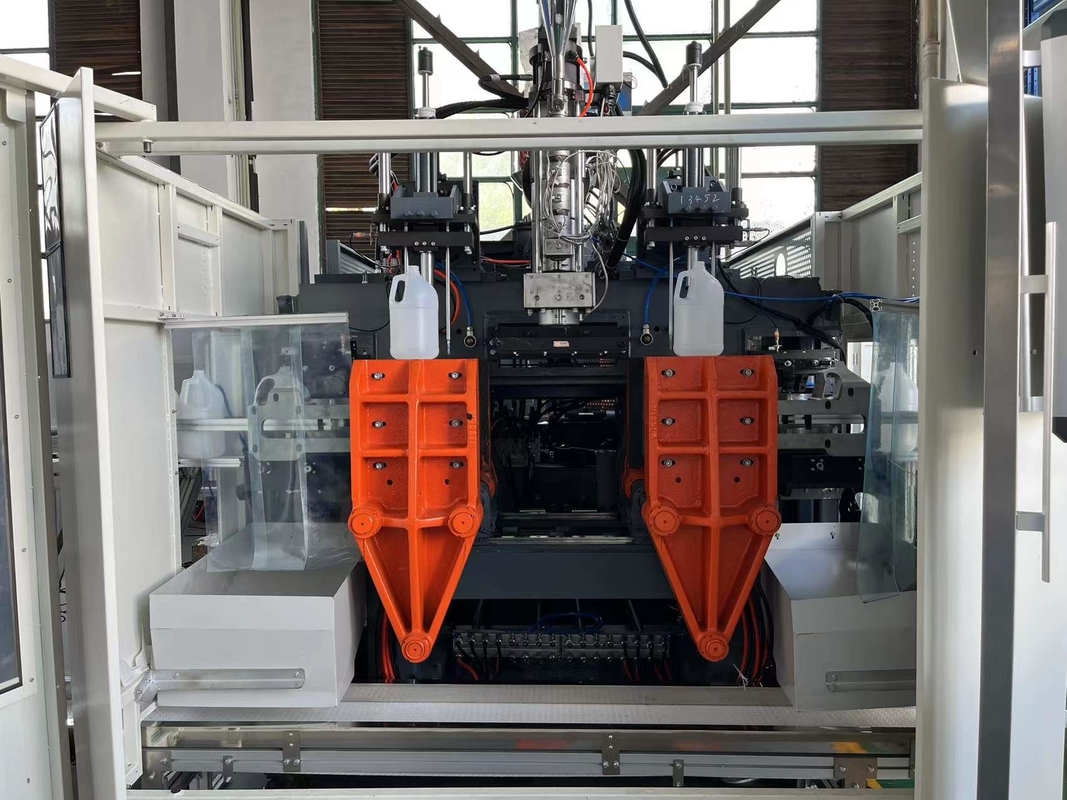

4L 1 Gallon Water Bottle Blow Molding Machine HDPE PP PVC Bottle Making Machine 1

Product Details

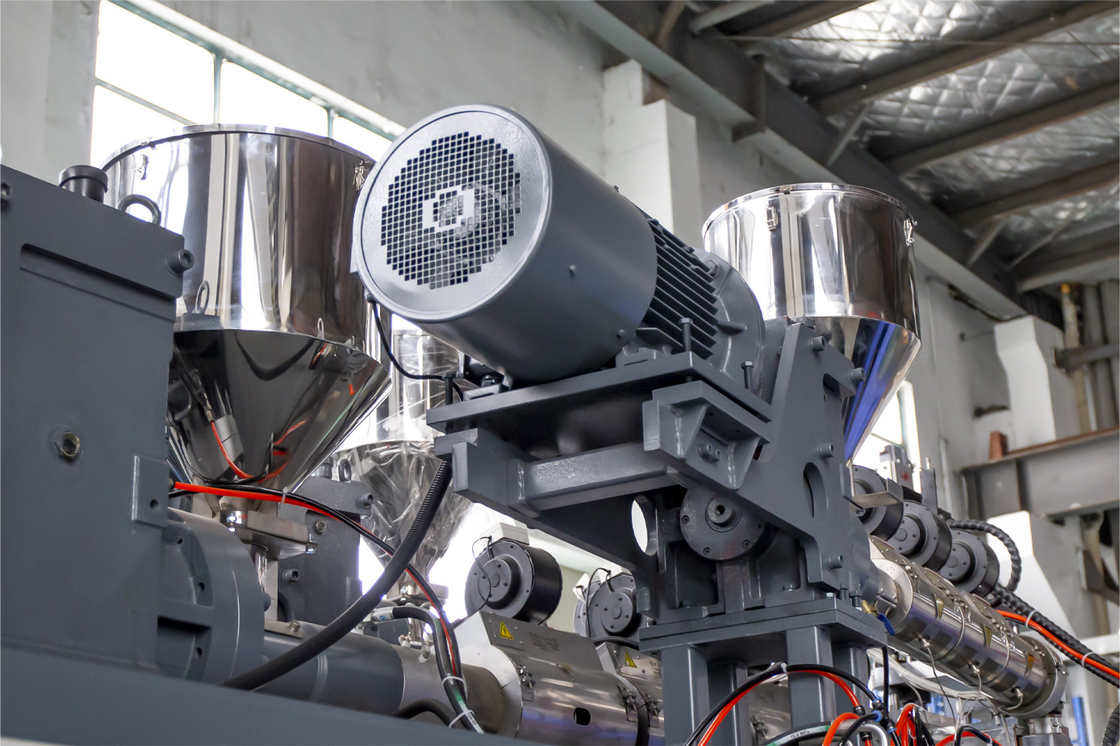

Plasticizing system can be designed for multi-layers, 1-4 layers are definitely available, and have high degree customization space.

Honeycomb ventilation holes to ensure better heat dissipation performance.

4L 1 Gallon Water Bottle Blow Molding Machine HDPE PP PVC Bottle Making Machine 2

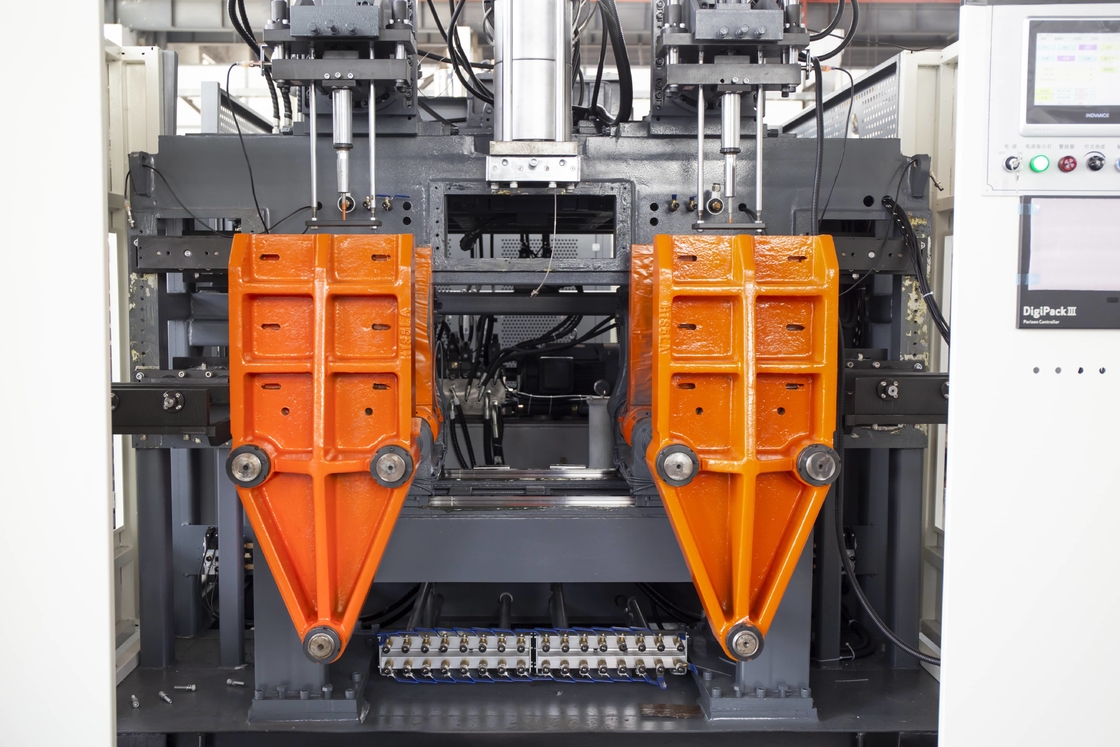

Hydraulic valve group, cost effective, fast reaction, the clamping force is strengthened for the molding locking

4L 1 Gallon Water Bottle Blow Molding Machine HDPE PP PVC Bottle Making Machine 3

After-sales service

4L 1 Gallon Water Bottle Blow Molding Machine HDPE PP PVC Bottle Making Machine 4
Arrange engineer to customer's factory



Company information



Our Machinery has been keeping good cooperative relationship with customers since our establishing.

The satisfaction of our customers are the pursuit of every member of Tongda,The only way we service in the competitive market is to help our customers to full fill their requirement.

4L 1 Gallon Water Bottle Blow Molding Machine HDPE PP PVC Bottle Making Machine 54L 1 Gallon Water Bottle Blow Molding Machine HDPE PP PVC Bottle Making Machine 6

FAQ

Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.


Q: How big is your company?
A: our company has 400 employees and A building area of 100,000 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1999.


Q: How long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
