Small PE Blow Molding Machine Multi Heads Die Head Double Station

Small PE Blow Molding Machine Multi Heads Die Head Double Station

Products - PE Blow Molding Machine
  • High Light

    Double Station PE Blow Molding Machine

    ,

    Multi Heads PE Blow Molding Machine

    ,

    Double Station Small Blow Molding Machine

  • Station
    Double Station
  • Suitable Bottle
    1-2L
  • Screw Diameter (mm)
    60 Mm
  • Screw L/D Ratio
    25
  • Output
    60 Kg/h
  • Clamping Force
    44KN
  • Mold Moving Stroke
    370mm
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    HTSII-2L
  • Minimum Order Quantity
    1SET
  • Price
    $39,999.00 - $54,999.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

Small PE Blow Molding Machine Multi Heads Die Head Double Station

  • Small PE Blow Molding Machine Multi Heads Die Head Double Station
  • Small PE Blow Molding Machine Multi Heads Die Head Double Station
  • Small PE Blow Molding Machine Multi Heads Die Head Double Station
  • Small PE Blow Molding Machine Multi Heads Die Head Double Station
  • Small PE Blow Molding Machine Multi Heads Die Head Double Station
  • Small PE Blow Molding Machine Multi Heads Die Head Double Station
  • Small PE Blow Molding Machine Multi Heads Die Head Double Station
Get Price Contact Now

TONGDA HTSII2L Double Station Multi Heads Die Head Small Daily Chemical Bottles Making Machine PE Blow Molding Machine

Product Description

This HTS series machine is our most cost effective series machine. HTSII-2L machine is suitable for producing HDPE bottles size below 2 liters. If equipped with multi heads die-head, it also suitable for small HDPE/PP plastic daily chemical bottles blow molding.

Also can be equipped with view strip line on the die head, and multi layer configuration is also available.

The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.




Technical Parameters
MODEL
Units
HTSll-2L
Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume
L
2

Output of HDPE
kg/h
60

Clamping force
kn
44

Screw diametre
mm
60

Screw heating power
kw
11.2

Blow pressure
mpa
0.6

Size of machine
m
4.1*2.6*2.7

Small PE Blow Molding Machine Multi Heads Die Head Double Station 0



Product Details

Small PE Blow Molding Machine Multi Heads Die Head Double Station 1

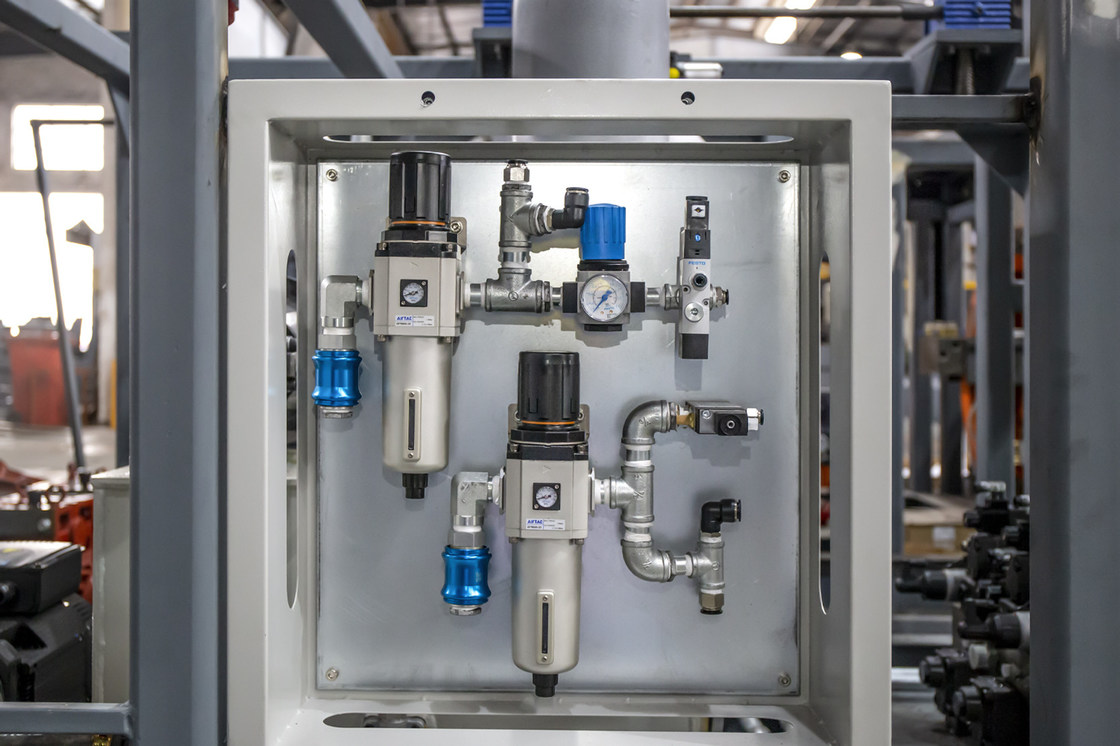

Air valve enlarged to ensure better shaping.

Multi-layer, durable tubes are used



Plasticizing system can be designed for multi-layers, 1-4 layers are definitely available, and have high degree customization space.

Honeycomb ventilation holes to ensure better heat dissipation performance.



Stable and efficient clamping system

Adjustable rotary type blow pin unit, suitable for oblique bottles






After-sales service

Small PE Blow Molding Machine Multi Heads Die Head Double Station 2
Arrange engineer to customer's factory



FAQ

TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function

Advantages of TONGDA tech teams
1. 600 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.

Q: how big is your company?
A: our company has 270 employees and A building area of 53,330 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1998.

Q: how long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
