Servo System Plastic Blow Molding Machines High Speed Double Station

Servo System Plastic Blow Molding Machines High Speed Double Station

  • High Light

    Servo Plastic Blow Molding Machines

    ,

    High Speed Plastic Blow Molding Machines

    ,

    Servo Double Station Blow Molding Machine

  • Suitable Bottle
    1-5L
  • Station
    Double Station
  • Screw L/D Ratio
    25
  • Screw Diameter
    80mm
  • Mold Moving Stroke
    490mm
  • Clamping Force
    150KN
  • Output (kg/h)
    110 Kg/h
  • Max. Size Of Mold
    480*450mm
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    HS-5L
  • Minimum Order Quantity
    1SET
  • Price
    $55,999.00 - $69,999.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

Servo System Plastic Blow Molding Machines High Speed Double Station

TONGDA HSII-5L Servo System High Speed Double Station Plastic Bottle Making Extrusion Blowing Machine



Product Description

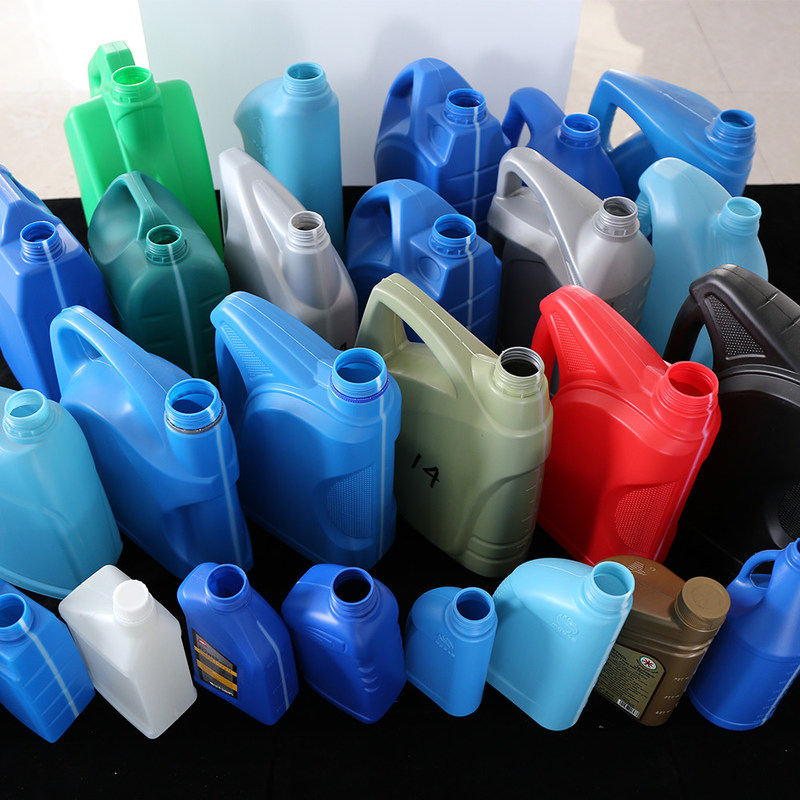

This is our best series machine.This is hydraulic servo system.The clamping unit is elbow style and the clamping force is more uniform.It is high speed and energy-saving. This machine is suitable for clean-up cleaner detergent liquid / household cleaning bottles wash cleaner, etc.It can be also equipped with several die-heads and then to make the small product.



Technical Parameters



MODEL Units HSII-5L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 5
Output of HDPE kg/h 110
Clamping force kn 110
Screw diametre mm 80
Screw heating power kw 19
Blow pressure mpa 0.6
Size of machine m 4.5*2.7*3.1



Product Details



HGH-EFIGIENCY AND ENERGY-SAVING

Servo System Plastic Blow Molding Machines High Speed Double Station 0



Optional 3D Manipulator

Reduce manual sorting costs and improve productino efficiency

Servo System Plastic Blow Molding Machines High Speed Double Station 1



Company Information



In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been focusing on the research, development and product application of extrusion blow molding machines. The factory covers an area of more than 80 acres of land and has more than 350 employees.

Warmly welcome new and old customers to visit, to guide.



Servo System Plastic Blow Molding Machines High Speed Double Station 2Servo System Plastic Blow Molding Machines High Speed Double Station 3Servo System Plastic Blow Molding Machines High Speed Double Station 4





After-sales services



Tongda has a sound service network, perfect after-sales service system, 14 professional after-sales service teams across the country, and a timely response service mechanism to continuously improve user satisfaction. Serve every customer sincerely, respond quickly, and solve the problems raised by customers in a timely manner. We will regularly send debugging engineers to visit customers and solve problems in time.

Servo System Plastic Blow Molding Machines High Speed Double Station 5



FAQ



Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.


Q: How big is your company?
A: our company has 400 employees and A building area of 100,000 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1999.


Q: How long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
