5 Gallon TRITAN PC Bottle Blow Molding Machines Extrusion 1.9L Accumulator

5 Gallon TRITAN PC Bottle Blow Molding Machines Extrusion 1.9L Accumulator

  • High Light

    TRITAN Bottle Blow Molding Machines

    ,

    PC Bottle Blow Molding Machines

    ,

    Extrusion 5 Gallon Blowing Machine

  • Machinery Test Report
    Provided
  • Core Components
    PLC, Bearing, Motor, Pressure Vessel, Pump
  • Application
    Bottle
  • Plastic Processed
    PP, HDPE, PC, PVC, PE, Tritan
  • Year
    2019
  • Voltage
    220~440
  • Dimension(L*W*H)
    6.3*2.2*3.8m
  • Hollow Part Volume
    5gallon
  • Clamping Force (kN)
    215
  • PLC Brand
    MITSUBISHI
  • Screw L/D Ratio
    38
  • Screw Diameter (mm)
    82 Mm
  • Output (kg/h)
    160 Kg/h
  • Automation
    Automatic
  • No. Of Screw Heating Zone
    4
  • Screw Heating Power(kW)
    40 KW
  • Extruder Motor Power(kW)
    50 KW
  • Mold Platen Size(Width)(mm)
    550 Mm
  • Mold Platen Size(Height)(mm)
    650 Mm
  • Air Pressure(MPa)
    0.6 MPa
  • Air Comsumption(m³/min)
    1 M³/min
  • Die Head Heating Power(kW)
    9.5 KW
  • Accumulator Capacity(L)
    1.9 L
  • Power (kW)
    106
  • Weight (T)
    12
  • Key Selling Points
    Use TRITAN And Automatic
  • Warranty
    1 Year
  • Applicable Industries
    Food & Beverage Factory, Food Shop, Food & Beverage Shops
  • Showroom Location
    Egypt, Indonesia, Pakistan, Thailand, Chile, Algeria
  • High Pressure Valve Brand
    AirTac
  • Rotary Cylinder Brand
    AirTac
  • After-sales Service Provided
    Field Maintenance And Repair Service, Field Installation, Commissioning And Training, Video Technical Support, Online Support
  • After Warranty Service
    Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
  • Local Service Location
    Egypt, Indonesia, Pakistan, Thailand, Chile, Algeria
  • Port
    Shanghai Port
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    TONGDA TDB25APC
  • Minimum Order Quantity
    1SET
  • Price
    $89,999.00 - $119,999.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

5 Gallon TRITAN PC Bottle Blow Molding Machines Extrusion 1.9L Accumulator

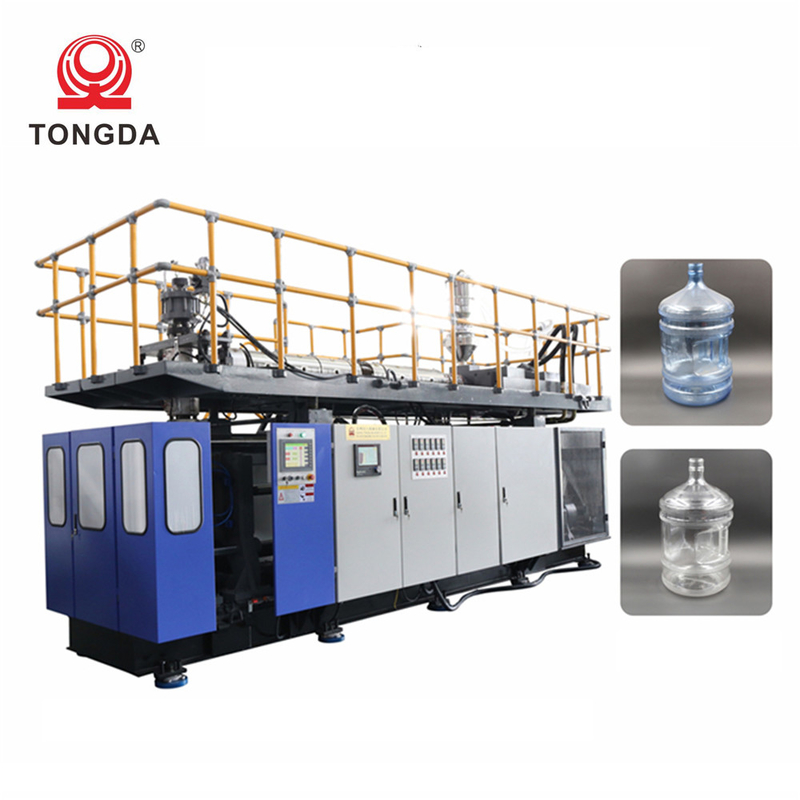

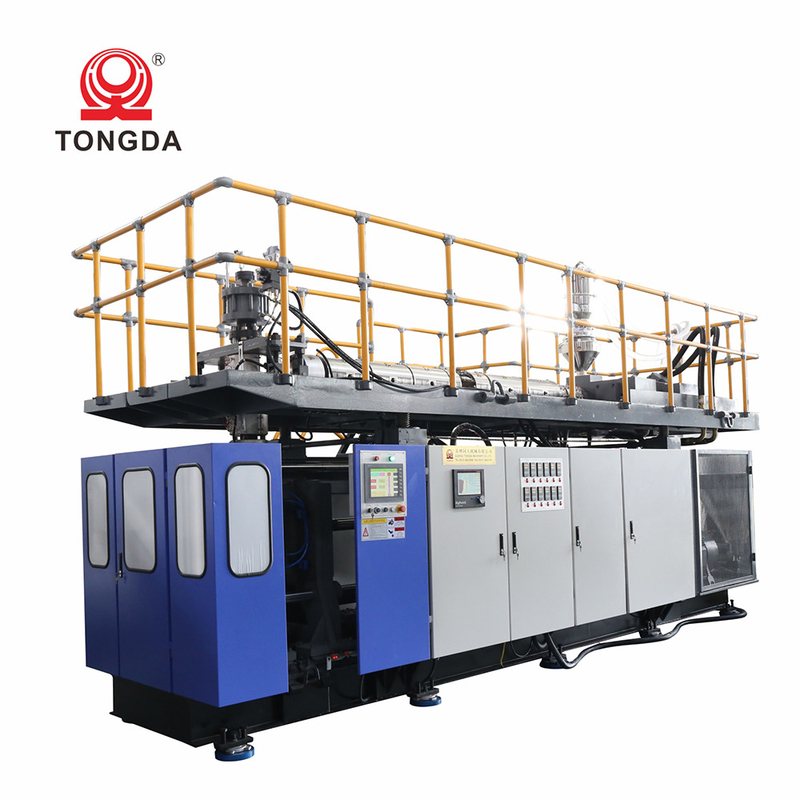

TONGDA TDB25APC 5 Gallon TRITAN and PC bottle automatic extrusion blow molding machine



Product Description

This TDB-25APC extrusion blow molding machine is suitable for 25L product and it is bottom blow. The die-head is accumulator. It equipped with servo motor.

Technical Parameters


MODEL
Units
TDB-25APC
Remarks: If you have other special requirements,we can provide customized services for you.
Max. Product volume
L
25

Output of HDPE
kg/h
16

Clamping force
kn
215

Screw diametre
mm
82

Screw heating power
kw
40

Blow pressure
mpa
0.6

Size of machine
m
6.3-*2.2*3.8



5 Gallon TRITAN PC Bottle Blow Molding Machines Extrusion 1.9L Accumulator 0



Product Details


5 Gallon TRITAN PC Bottle Blow Molding Machines Extrusion 1.9L Accumulator 1

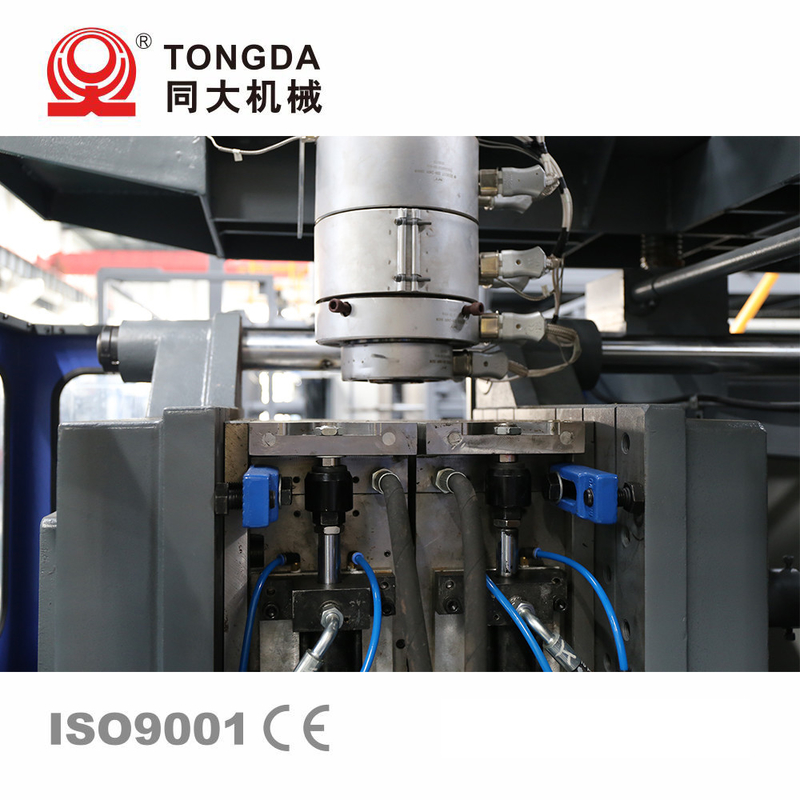

Bottom Blowing Unit, with high precission of component assembly, can also be equipped with down seal device

Upper parison sealing device, stable and reliable



5 Gallon TRITAN PC Bottle Blow Molding Machines Extrusion 1.9L Accumulator 2

Die head:Excellent flow channel technology and precise machining accuracy, make the color change and material change more efficient. From dark to white, normally can be completed within 3hours. Much quicker than other suppliers. Save cost for you if you need to produce different color products.



Company Information



Now we have more than 50 R & D personnel, including 1 national science and technology talent, 4 senior masters,15 bachelors, hosting the development of two national standards and participating in the formulation of a national standard.

5 Gallon TRITAN PC Bottle Blow Molding Machines Extrusion 1.9L Accumulator 35 Gallon TRITAN PC Bottle Blow Molding Machines Extrusion 1.9L Accumulator 4

FAQ


TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function


Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.


Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
