Jerry Can HDPE Large Blow Molding Machine 20L Fully Automatic Manufacturing Machine

Jerry Can HDPE Large Blow Molding Machine 20L Fully Automatic Manufacturing Machine

Products - Jerry Can Blow Molding Machine
  • High Light

    HDPE Large Blow Molding Machine

    ,

    Jerry Can Large Blow Molding Machine

    ,

    20L Fully Automatic Manufacturing Machine

  • Core Components
    PLC, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
  • Dimension(L*W*H)
    5*2.4*3.8
  • Automation
    Automatic
  • Die Head Heating Power(kW)
    19 KW
  • Key Selling Points
    Long Service Life
  • Key Words
    Automatic Extrusion Blow Moulding Machine
  • Max. Size Of Mold
    700*950
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    TDB-50F
  • Minimum Order Quantity
    1SET
  • Price
    $75,999.00/Sets >=1 Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

Jerry Can HDPE Large Blow Molding Machine 20L Fully Automatic Manufacturing Machine

  • Jerry Can HDPE Large Blow Molding Machine 20L Fully Automatic Manufacturing Machine
  • Jerry Can HDPE Large Blow Molding Machine 20L Fully Automatic Manufacturing Machine
  • Jerry Can HDPE Large Blow Molding Machine 20L Fully Automatic Manufacturing Machine
  • Jerry Can HDPE Large Blow Molding Machine 20L Fully Automatic Manufacturing Machine
  • Jerry Can HDPE Large Blow Molding Machine 20L Fully Automatic Manufacturing Machine
  • Jerry Can HDPE Large Blow Molding Machine 20L Fully Automatic Manufacturing Machine
Get Price Contact Now
TONGDA TDB-50F Fully automatic large extrusion blow molding machine hdpe 20L jerry can


Product Description

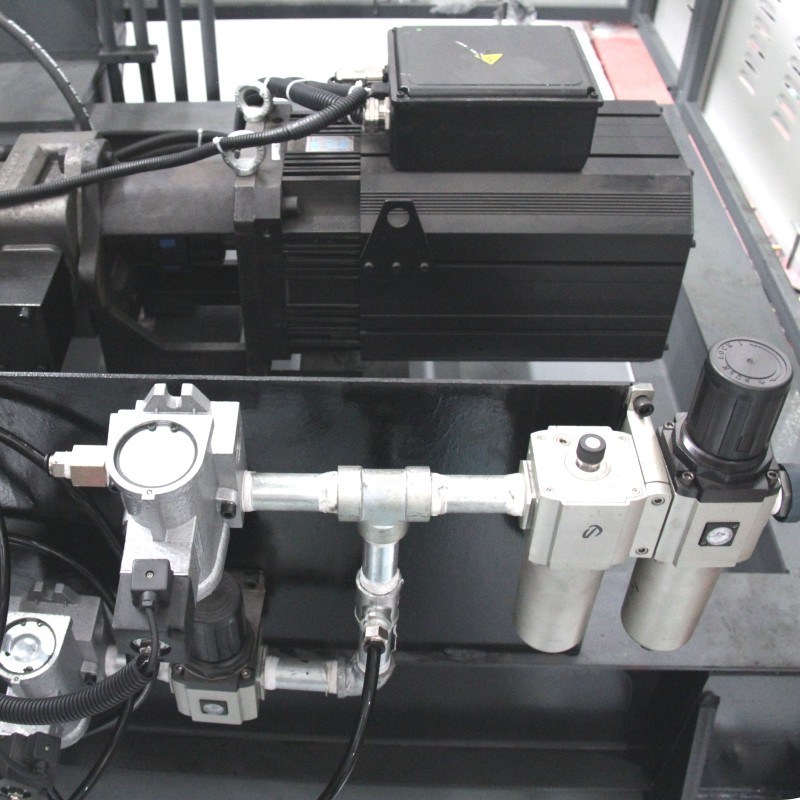

This machine is suitable for 20~50L product and it's bottom blow.The die-head is accumulator. It equipped with servo motor.The main parts of this machine are designed and manufactured by ourself. We do the independent R&D and inspection. If you have other special requirements, we can provide customized services for you.


Technical Parameters

MODEL
Units
TDB-50F
Click for the latest discount details




Remarks: If you have other special requirements,we can provide customized services for you.
Max. Product volume
L
60

Output of HDPE
kg/h
130-160

Clamping force
kn
260

Screw diametre
mm
90

Screw heating power
kw
15.6

Blow pressure
mpa
0.8

Size of machine
m
5*2.4*3.8

Jerry Can HDPE Large Blow Molding Machine 20L Fully Automatic Manufacturing Machine 0


Product Details

Jerry Can HDPE Large Blow Molding Machine 20L Fully Automatic Manufacturing Machine 1

Electronic control system: Japanese Mitsubishi PLC, HMI operation screen(Chinese & English), All data settings, changes, search, monitoring, fault diagnosis and other functions can be achieved on the touch screen, touchless working principle, durable components.



Jerry Can HDPE Large Blow Molding Machine 20L Fully Automatic Manufacturing Machine 2

Patented product: Two tie rods, single cylinder bidirectional synchronous mold opening and closing center mold clamping mechanism, which makes product quality stable and this design easy to take out the product.

Low energy consumption:If the screw speed of TDB-50F is around 70%, then the average power consumption is 35KW/h.



Jerry Can HDPE Large Blow Molding Machine 20L Fully Automatic Manufacturing Machine 3

Die head: Is designed by our own R&D department, manufactured and assembled by our assembling center, to ensure the confidentiality of the core technology and the manufacturing precision, and at the same time facilitate the later debugging and maintenance. Using 38CrMoALA, 42CrMo and other high-quality materials, made by precision machining and heat treatment. Excellent flow channel technology and precise machining accuracy, make the color change and material change more efficient. From dark to white, normally can be completed within 3hours. Much quicker than other suppliers. Save cost for you if you need to produce different color products.



Company Information

Jerry Can HDPE Large Blow Molding Machine 20L Fully Automatic Manufacturing Machine 4

Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. We have more than 23 years experience always specialized in R&D and manufacturing of extrusion blow molding machine.



Service Network

1.Over four thousand Tongda machines have been serving customers all over the world.
2.The company has service outlets in Russia, Egypt, Jordan, Thailand, Chile, Indonesia and Algeria.
3.our company has exported over 4000 units machine to more than 89 countries and regions, such as USA, UK, Australia, Greece,Poland.Russia,Belarus,South America, South Africa,Indonesia, Egypt, Syria, Ethiopia.We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.
Jerry Can HDPE Large Blow Molding Machine 20L Fully Automatic Manufacturing Machine 5


FAQ

Advantages of TONGDA tech teams
1. 600 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.

Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.

Q: how big is your company?
A: our company has 270 employees and A building area of 53,330 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1998.
