Plastic Pallet PE Blow Molding Machine Extrusion Single Station Fully Automatic

Plastic Pallet PE Blow Molding Machine Extrusion Single Station Fully Automatic

  • High Light

    Single Station PE Blow Molding Machine

    ,

    ISO 9001 PE Blow Molding Machine

    ,

    Plastic Pallet Blow Molding Machine

  • Dimension(L*W*H)
    5.8*2.9*4.4
  • Station
    Single
  • Max. Size Of Mold
    1200*1900
  • Hydraulic Valve
    Yuken
  • Water Consumption
    300
  • Output Of HDPE
    230kg
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    TDW-160E
  • Minimum Order Quantity
    1SET
  • Price
    $60,000.00 - $140,000.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

Plastic Pallet PE Blow Molding Machine Extrusion Single Station Fully Automatic

TONGDA TDW-160E Fully Automatic Extrusion Plastic Pallet Blow Molding Machine





Product Description





The Max. capacity of this machine is 160L. This machine use the independent cylinders for mold-locking. It is TONGDA patent and the clamping force is very big. This machine is suitable for the product which is thin but high, such as the desktop, door , slide and etc.

The main parts of this machine are designed and manufactured by ourself. We do the independent R&D and inspection. If you have other special requirements, we can provide customized services for you.



Technical Parameters



MODEL Units TDW-160E Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 160
Output of HDPE kg/h 230
Clamping force kn 1200
Screw diametre mm 100 25:1
Screw heating power kw 26
Blow pressure mpa 2
Size of machine m 8.6*3.2*5.6



Plastic Pallet PE Blow Molding Machine Extrusion Single Station Fully Automatic 0

Product Details



Plastic Pallet PE Blow Molding Machine Extrusion Single Station Fully Automatic 1

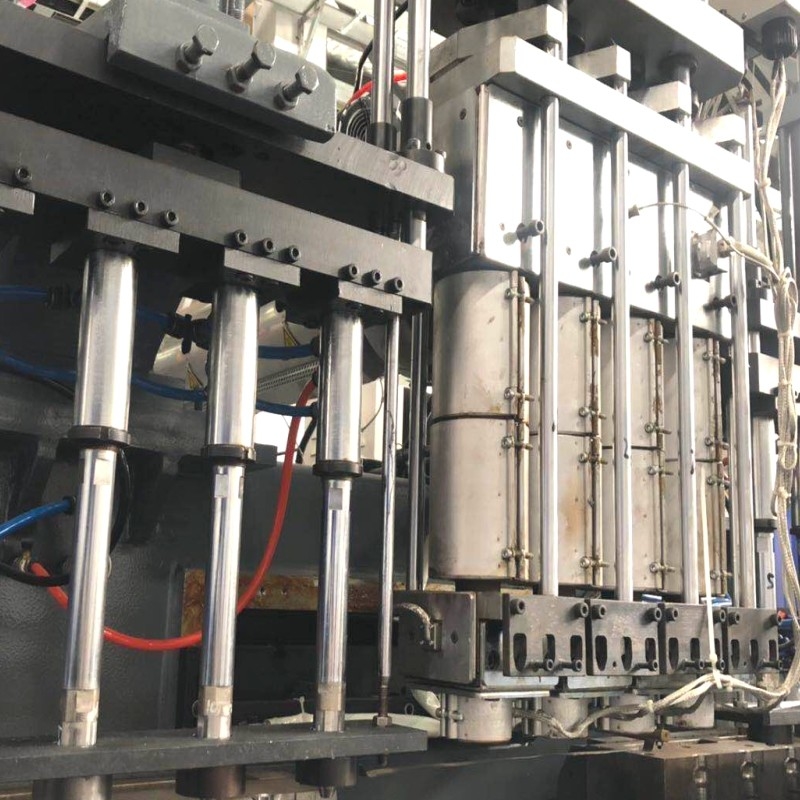

Die head: Is designed by our own R&D department, manufactured and assembled by our assembling center, to ensure the confidentiality of the core technology and the manufacturing precision, and at the same time facilitate the later debugging and maintenance.



Plastic Pallet PE Blow Molding Machine Extrusion Single Station Fully Automatic 2

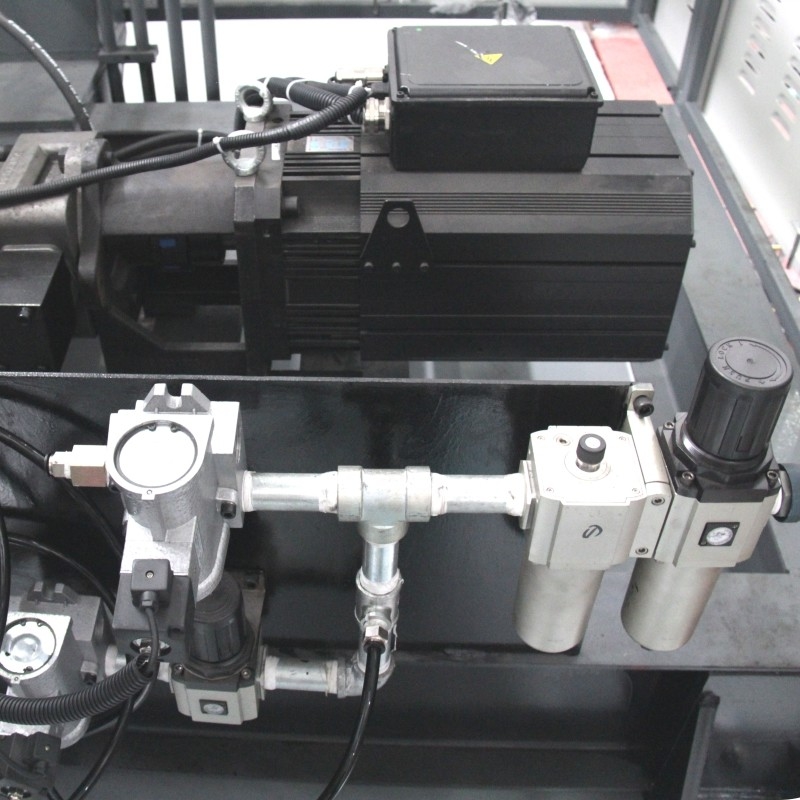

Hydraulic system: proportional pressure control, equipped with famous brand hydraulic components, which are stable and reliable.



Company Information



Plastic Pallet PE Blow Molding Machine Extrusion Single Station Fully Automatic 3



Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. We have more than 23 years experience always specialized in R&D and manufacturing of extrusion blow molding machine.



Plastic Pallet PE Blow Molding Machine Extrusion Single Station Fully Automatic 4



In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been focusing on the research, development and product application of extrusion blow molding machines. The factory covers an area of more than 80 acres of land and has more than 350 employees.

Warmly welcome new and old customers to visit, to guide.

FAQ

TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function




Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.




Q: How long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
