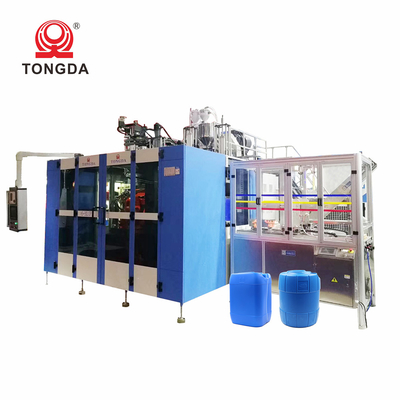

Plastic 20L Jerry Can Blow Molding Machine Electric Hydraulic CE Certified

Plastic 20L Jerry Can Blow Molding Machine Electric Hydraulic CE Certified

  • High Light

    20L Jerry Can Blow Molding Machine

    ,

    Electric Hydraulic Jerry Can Blow Molding Machine

    ,

    Plastic 20L Blow Moulding Machine

  • Screw L/D Ratio
    28
  • Screw Diameter (mm)
    100 Mm
  • Screw Heating Power(kW)
    30.8 KW
  • Air Pressure(MPa)
    0.6 MPa
  • Air Comsumption(m³/min)
    1.2 M³/min
  • Power (kW)
    156
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    HSII30L
  • Minimum Order Quantity
    1SET
  • Price
    $129,999.00 - $149,999.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

Plastic 20L Jerry Can Blow Molding Machine Electric Hydraulic CE Certified

ONGDA HSll30L Jerry can Making Line 20liter Plastic Jerry Can Extrusion Blow Molding Machine


Product Description



This is our best series machine. This is double station and this is electric-hydraulic. It is high speed and energy-saving. The blow pin, die-head up & down, platform up & down is controlled by electric. The main movement is controlled by hydraulic servo system. Clamping unit is elbow style and the clamping force is big. This machine is suitable for the 20L~30L stacking jerry can.



Technical Parameters



MODEL
Units
HSII-30L
Click for the latest discount details


Remarks: The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.
Max. Product volume
L
5

Output of HDPE
kg/h
110

Clamping force
kn
110

Screw diametre
mm
80

Screw heating power
kw
19

Blow pressure
mpa
0.6

Size of machine
m
4.5x2.7x3.1



Plastic 20L Jerry Can Blow Molding Machine Electric Hydraulic CE Certified 0



Product Details

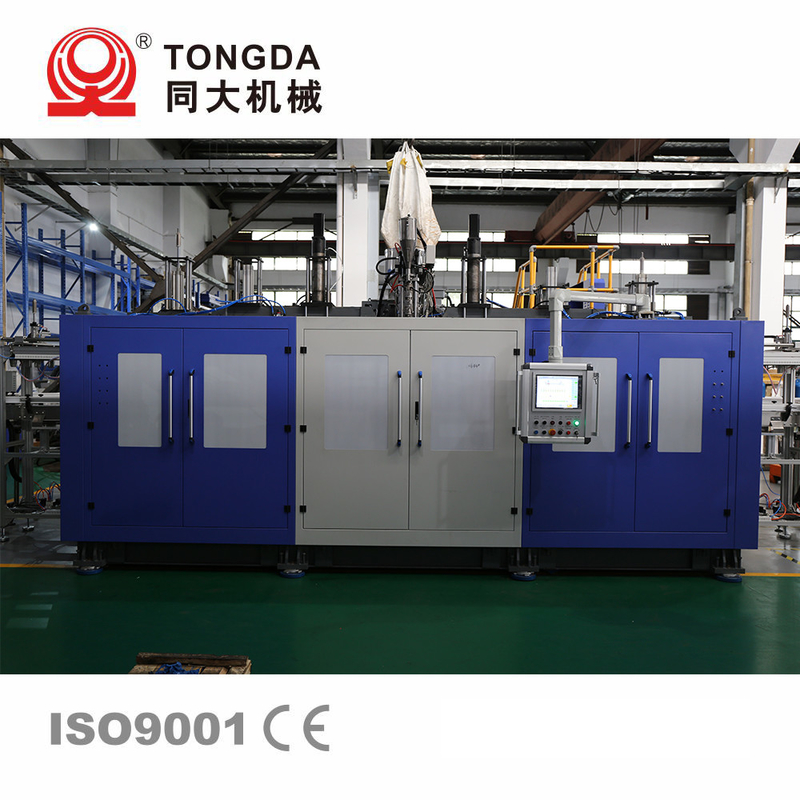

Plastic 20L Jerry Can Blow Molding Machine Electric Hydraulic CE Certified 1

Inside the machine body, save space

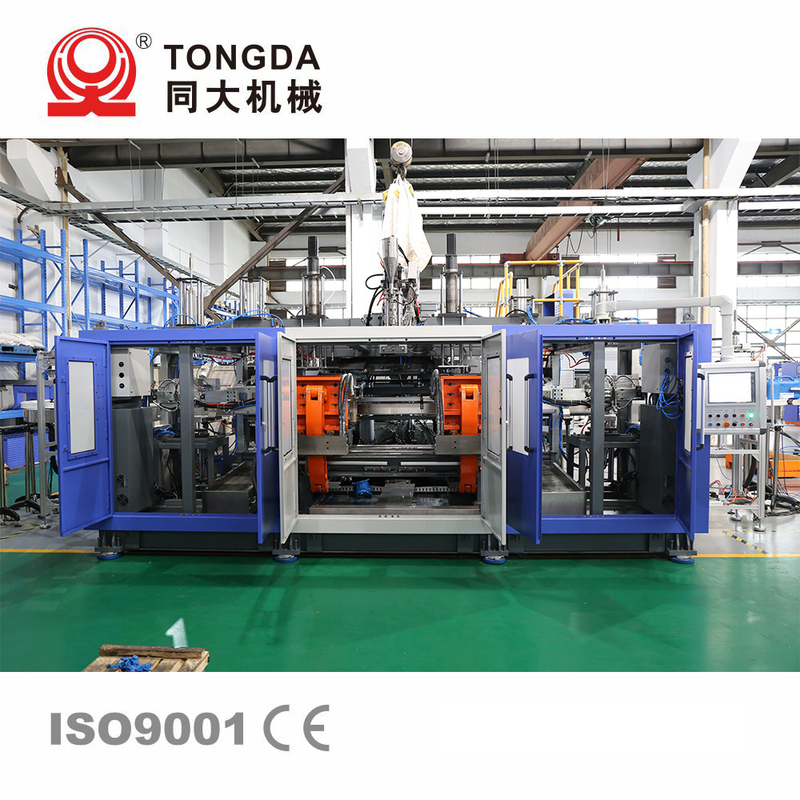

Plastic 20L Jerry Can Blow Molding Machine Electric Hydraulic CE Certified 2

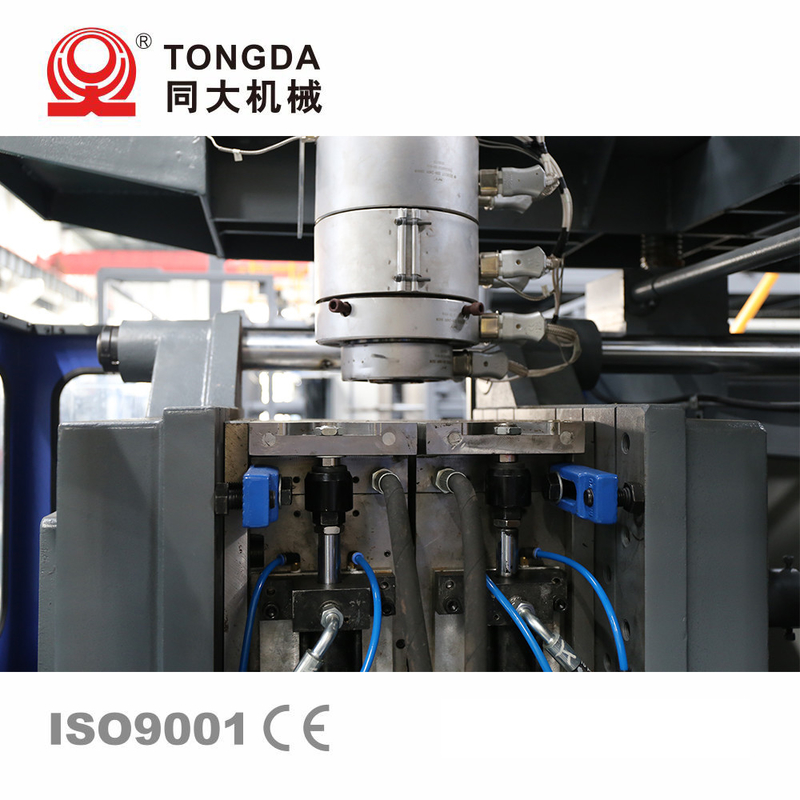

Bottle mouth details:The surface of the bottle mouth after the flash are perfect. Comfortable and smooth.

Handle:0ne-time molding, can achieve continuous production and meet GMP standards.

Labeling :In-Mold labeling is accurate and fast, ensuring production quality and improving production efficiency.

Quality Control:The perfect quality control system controls all aspects of prducion step by step, realizes the whole process quality control of products, and provides a strong guarantee for product quality.

Plastic 20L Jerry Can Blow Molding Machine Electric Hydraulic CE Certified 3

Reduce manual sorting costs and improve productino efficiency



Company Information



Plastic 20L Jerry Can Blow Molding Machine Electric Hydraulic CE Certified 4

"Working Together to Grow Together" is the spirit of Suzhou Tongda Machinery, to cooperate with us and we are always at your service to provide you with strong support.



After-sales Service



Arrange engineer to customer's factory
Plastic 20L Jerry Can Blow Molding Machine Electric Hydraulic CE Certified 5



FAQ



TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function

Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.

Q: How big is your company?
A: our company has 270 employees and A building area of 53,330 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1998.
