High Speed Plastic Hollow Blow Molding Machine Automatic Double Station

High Speed Plastic Hollow Blow Molding Machine Automatic Double Station

  • High Light

    Double Station Hollow Blow Molding Machine

    ,

    Plastic Hollow Blow Molding Machine

    ,

    Automatic High Speed Blow Molding Machine

  • Application
    Bottle
  • Plastic Processed
    PP, HDPE, PC, ABS, PVC, PE, EVA, PA, ABS/PP, PE/PP, HDPE/PP, PETG
  • Voltage
    Customized To Customer Needs
  • Dimension(L*W*H)
    6.2x5.5x3.3
  • Core Components
    PLC, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
  • Hollow Part Volume
    1-12L
  • Clamping Force (kN)
    158
  • Screw L/D Ratio
    25
  • Output (kg/h)
    200 Kg/h
  • Automation
    Automatic
  • Screw Heating Power(kW)
    21 KW
  • Extruder Motor Power(kW)
    45 KW
  • Mold Platen Size(Width)(mm)
    590 Mm
  • Mold Platen Size(Height)(mm)
    500 Mm
  • Air Pressure(MPa)
    0.6 MPa
  • Die Head Heating Power(kW)
    15 KW
  • Accumulator Capacity(L)
    0 L
  • Power (kW)
    96.1
  • Applicable Industries
    Energy & Mining, Hotels, Home Use, Machinery Repair Shops, Restaurant, Food & Beverage Factory, Farms
  • Showroom Location
    Egypt, Indonesia, Pakistan, Thailand, Chile, Algeria
  • Station
    Double
  • Suitable Bottle
    1-12L
  • Key Words
    Automatic Extrusion Blow Moulding Machine
  • Use
    Hollow Moulding
  • Parison Control
    MOOG
  • Max. Size Of Mold
    590*500
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    TONGDA HSll12L
  • Minimum Order Quantity
    1SET
  • Price
    $74,999.00 - $89,999.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

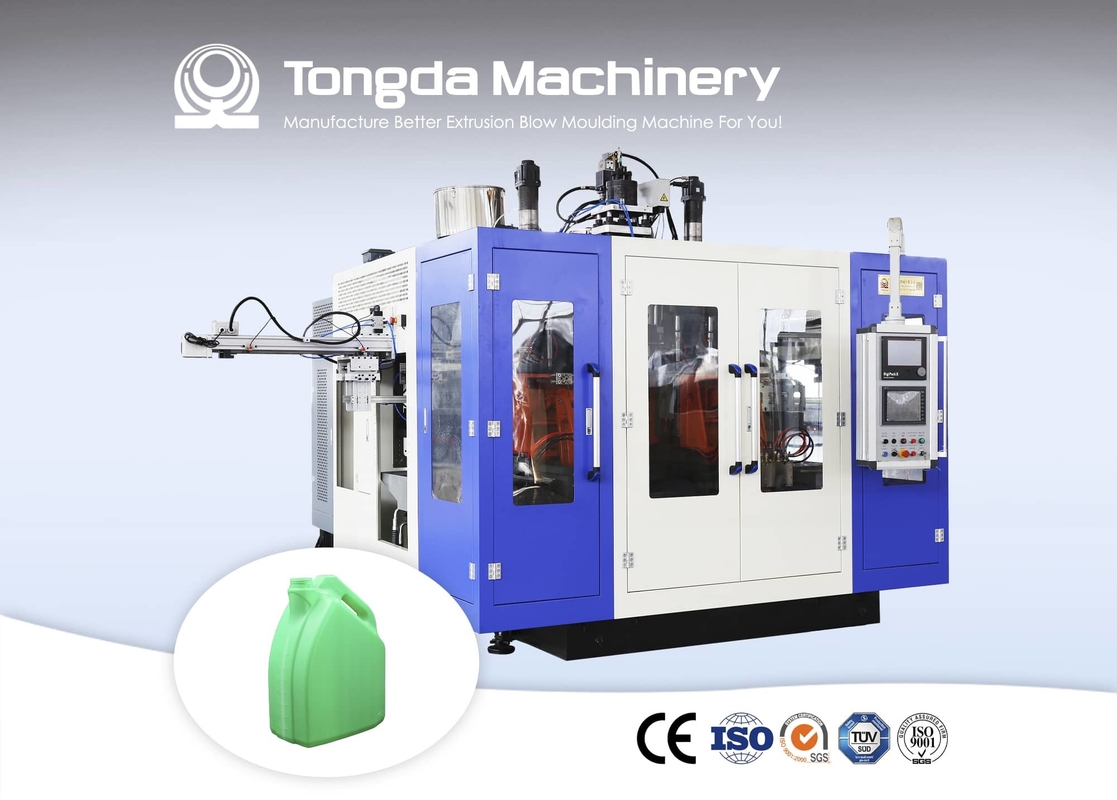

High Speed Plastic Hollow Blow Molding Machine Automatic Double Station

TONGDA HSll12L Double station Plastic Hollow Moulding Machine



Product Description



This is our best series machine. This is hydraulic servo system. The clamping unit is elbow style and the clamping force is more uniform. It is high speed and energy-saving. This machine is suitable for stacking product, jerry can, etc. It can be also equipped with several die-heads and then to make the small product.



Technical Parameters



MODEL Units HSII-12L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 12
Output of HDPE kg/h 180
Clamping force kn 158
Screw diametre mm 110
Screw heating power kw 21
Blow pressure mpa 0.6
Size of machine m 4.9*3.1*3.2



Product Details



HGH-EFIGIENCY AND ENERGY-SAVING

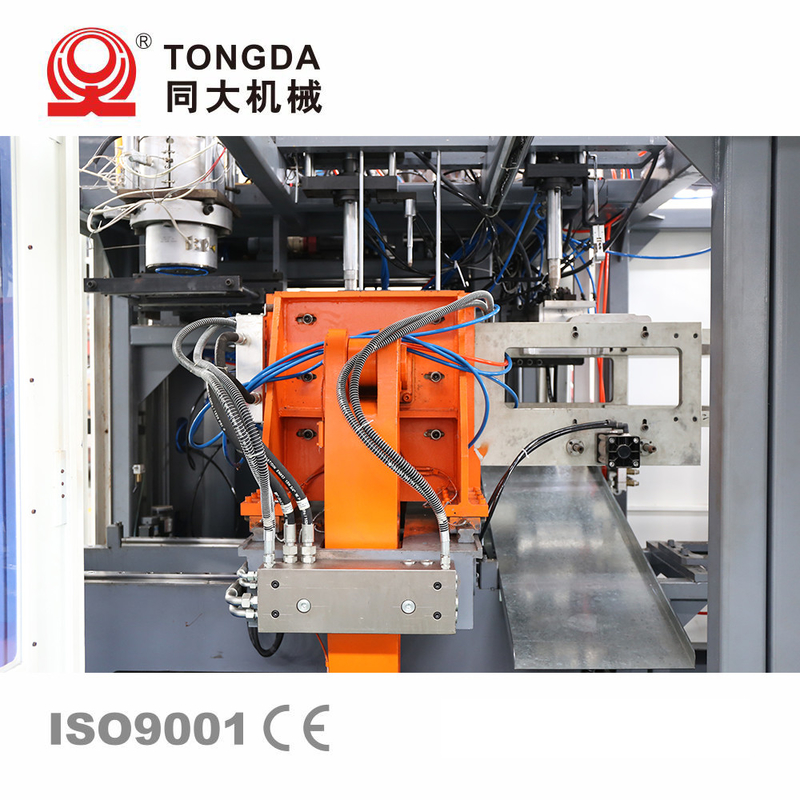

High Speed Plastic Hollow Blow Molding Machine Automatic Double Station 0



Bottle mouth details:The surface of the bottle mouth after the flash are perfect. Comfortable and smooth.

Handle:0ne-time molding, can achieve continuous production and meet GMP standards.

Labeling :In-Mold labeling is accurate and fast, ensuring production quality and improving production efficiency.

Quality Control:The perfect quality control system controls all aspects of prducion step by step, realizes the whole process quality control of products, and provides a strong guarantee for product quality.

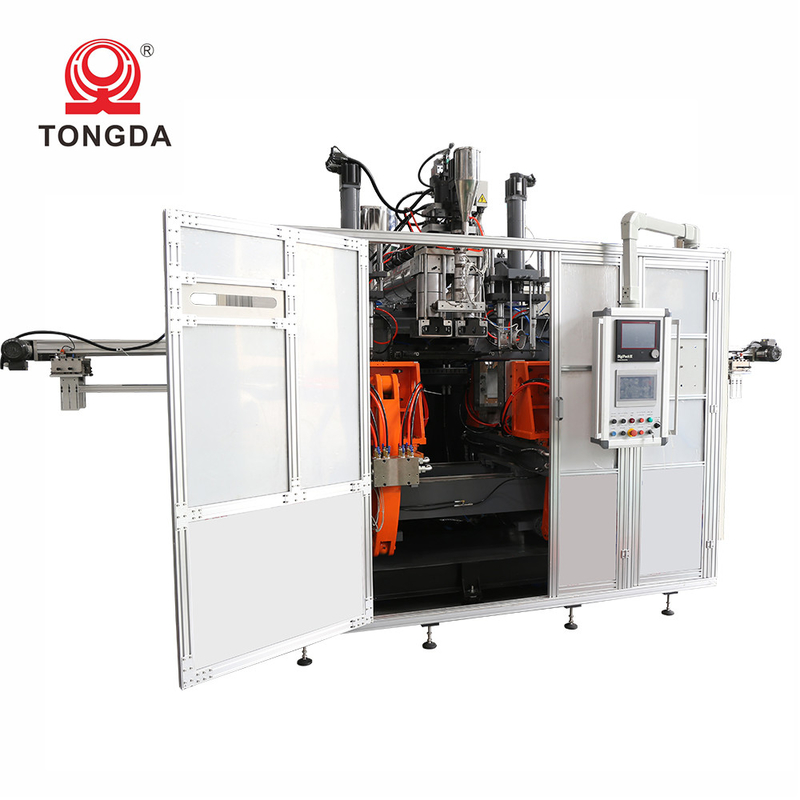

High Speed Plastic Hollow Blow Molding Machine Automatic Double Station 1



Company Information



Suzhou Tongda Machinery have more than 20,000m2 factory buildings and other facilicities and a new intelligent manufacturing factory with 55,000m2 area. The I phase 20,000m2 area factory will be put into use in June, 2022. And on May 19th, 2022, we just held the II phase intelligent manufacturing base groundbreaking ceremony.

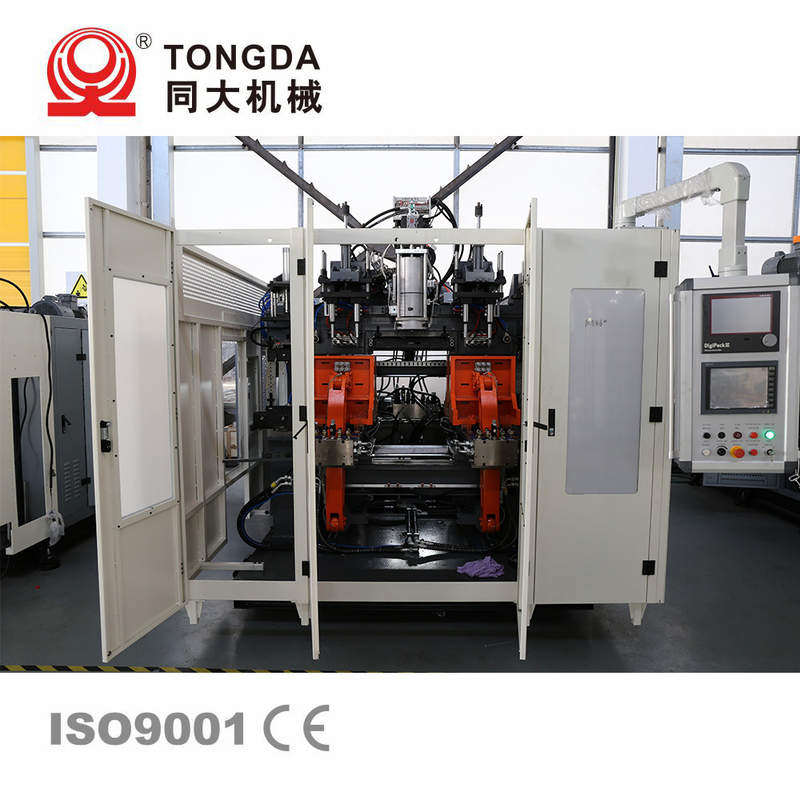

High Speed Plastic Hollow Blow Molding Machine Automatic Double Station 2

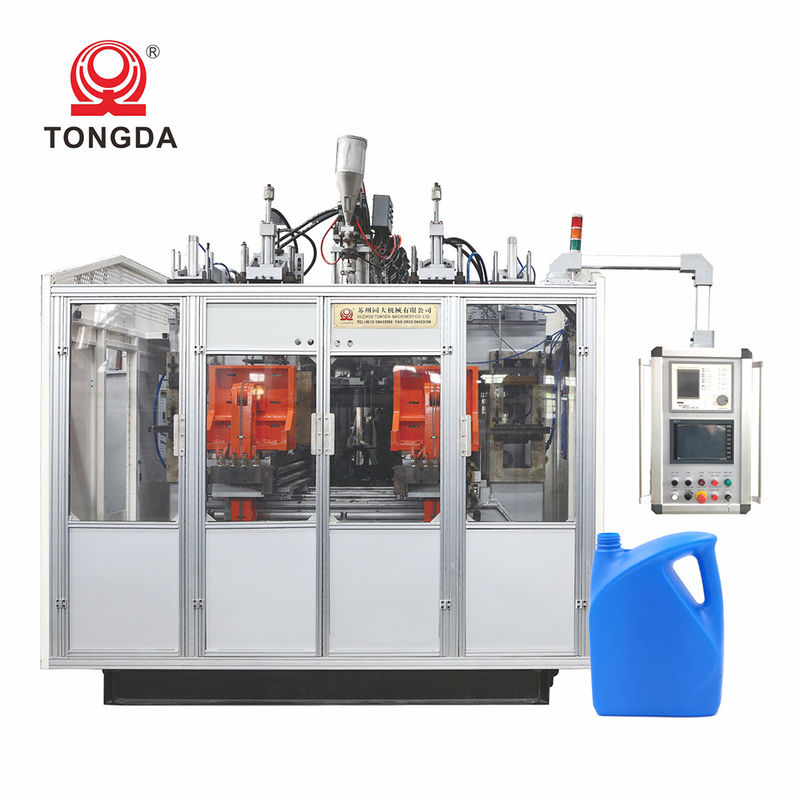

High Speed Plastic Hollow Blow Molding Machine Automatic Double Station 3



After-sales services



During epidemic period, our team have helped customers start up more than 250sets new Tongda machines by online service, to help customer run the machine as soon, our after sales team helped around 3 hours till the mid-night.

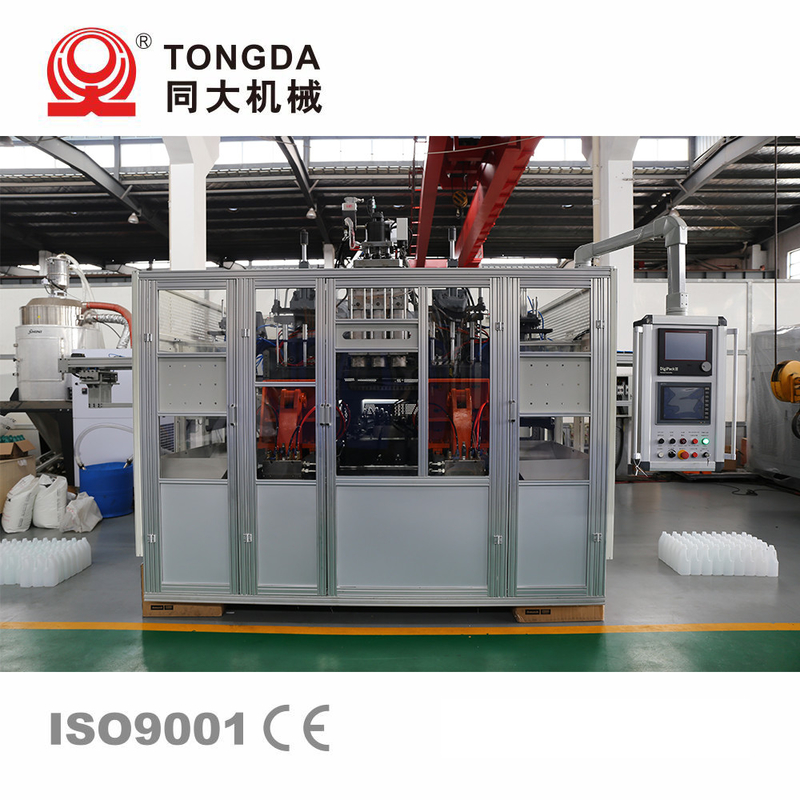

High Speed Plastic Hollow Blow Molding Machine Automatic Double Station 4



FAQ



Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.


Q: How big is your company?
A: our company has 400 employees and A building area of 100,000 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1999.


Q: How long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
