Hollow Plastic Drum Blow Molding Machine Fully Automatic High Performance

Hollow Plastic Drum Blow Molding Machine Fully Automatic High Performance

  • High Light

    Hollow Drum Blow Molding Machine

    ,

    High Performance Drum Blow Molding Machine

    ,

    Drum Fully Automatic Moulding Machine

  • Voltage
    Customized To Customer Needs
  • Dimension(L*W*H)
    6.2x5.5x3.3
  • Clamping Force (kN)
    250
  • Screw Diameter (mm)
    100 Mm
  • Output (kg/h)
    300 Kg/h
  • Air Comsumption(m³/min)
    1.2 M³/min
  • Power (kW)
    156
  • Weight (T)
    24
  • Station
    Double
  • Max. Size Of Mold
    740*650
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Minimum Order Quantity
    1SET
  • Price
    $129,999.00 - $149,999.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

Hollow Plastic Drum Blow Molding Machine Fully Automatic High Performance

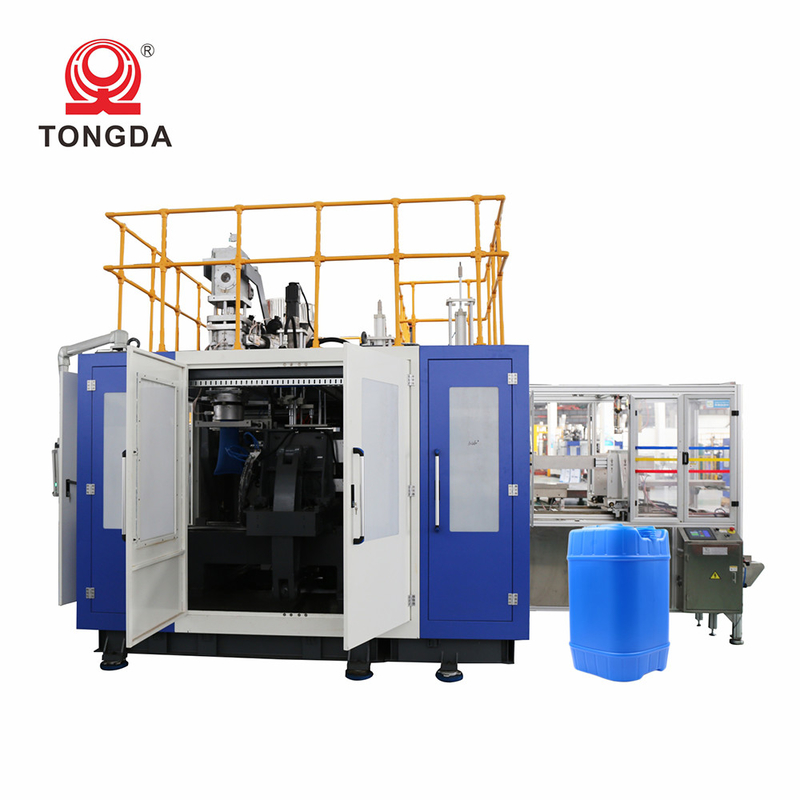

TONGDA HSll30L Fully Automatic high performance Hollow Plastic Extrusion Drums Machine

This is our best series machine. This is double station and this is electric-hydraulic. It is high speed and energy-saving. The blow pin, die-head up & down, platform up & down is controlled by electric. The main movement is controlled by hydraulic servo system. Clamping unit is elbow style and the clamping force is big. This machine is suitable for the 20L~30L stacking jerry can.



Technical parameters





MODEL Units HSII-30L Remarks: The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.
Max. Product volume L 5
Output of HDPE kg/h 110
Clamping force kn 110
Screw diametre mm 80
Screw heating power kw 19
Blow pressure mpa 0.6
Size of machine m 4.5x2.7x3.1

Product Description



Hollow Plastic Drum Blow Molding Machine Fully Automatic High Performance 0

Hollow Plastic Drum Blow Molding Machine Fully Automatic High Performance 1




Product details



Hollow Plastic Drum Blow Molding Machine Fully Automatic High Performance 2



Flex Arm Clamping:Enhanced template structure
Needle blow system:Adjustable angle, suiable for oblique bottles

Hollow Plastic Drum Blow Molding Machine Fully Automatic High Performance 3
Hydraulic Servo:Energy saving and high precision
Electric gauge:Fast speed and high precision



Hollow Plastic Drum Blow Molding Machine Fully Automatic High Performance 4

CE Standard
Modularized components, easy replace
Digitizing and famous



Company information



Hollow Plastic Drum Blow Molding Machine Fully Automatic High Performance 5Hollow Plastic Drum Blow Molding Machine Fully Automatic High Performance 6

Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. We have more than 23 years experience always specialized in R&D and manufacturing of extrusion blow molding machine.



Hollow Plastic Drum Blow Molding Machine Fully Automatic High Performance 7Hollow Plastic Drum Blow Molding Machine Fully Automatic High Performance 8

We have normal spare parts in our warehouse, not only electrical parts, but also mechanical spare parts. It helps us deliver the spare parts customers need promptly.



Service network



Hollow Plastic Drum Blow Molding Machine Fully Automatic High Performance 9

During epidemic period, our team have helped customers start up more than 250sets new Tongda machines by online service, to help customer run the machine as soon, our after sales team helped around 3 hours till the mid-night.

Hollow Plastic Drum Blow Molding Machine Fully Automatic High Performance 10

Hollow Plastic Drum Blow Molding Machine Fully Automatic High Performance 11

Our company has exported over 4000 units machine to more than 120 countries and regions, such as USA, UK, Australia, Greece,Poland.Russia,Belarus,South America, South Africa,Indonesia, Egypt, Syria, Ethiopia.We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.



FAQ



Q: How big is your company?
A: our company has 400 employees and A building area of 100,000 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1999.


Q: How long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.



Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
