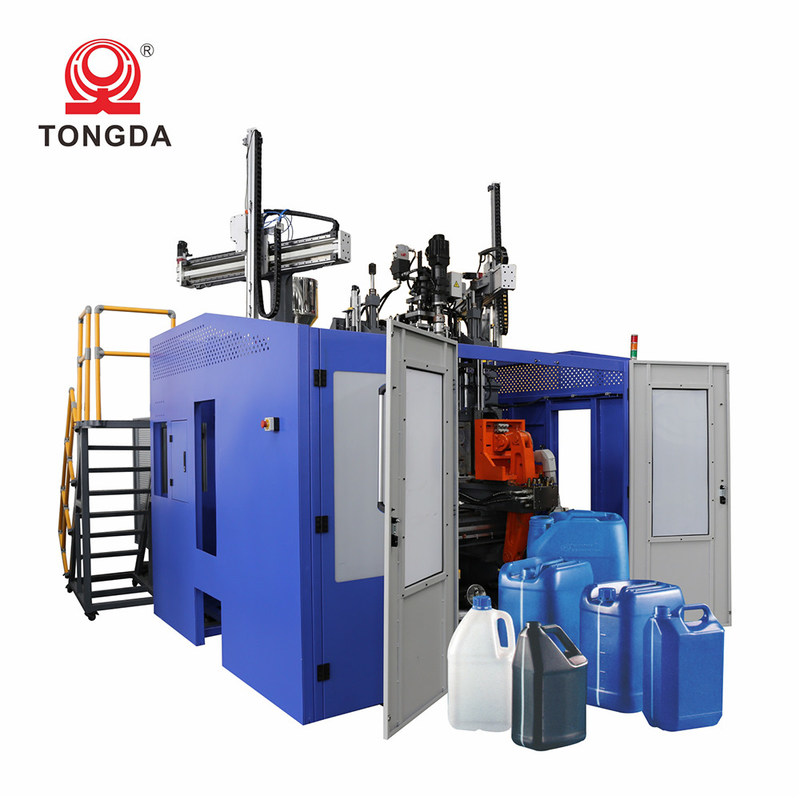

Plastic 10L Full Automatic Blow Moulding Machine hydraulic Double Station

Plastic 10L Full Automatic Blow Moulding Machine hydraulic Double Station

  • High Light

    Plastic Full Automatic Blow Moulding Machine

    ,

    Hydraulic Full Automatic Blow Moulding Machine

    ,

    Double Station 10L Blow Molding Machine

  • Condition
    New
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2020
  • Warranty Of Core Components
    1 Year
  • Core Components
    PLC, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
  • Application
    Bottle
  • Plastic Processed
    PP, HDPE, PC, ABS, PVC, PE, EVA, PA, ABS/PP, PE/PP, HDPE/PP, PETG
  • Year
    2019
  • Voltage
    Customized To Customer Needs
  • Dimension(L*W*H)
    6.8x6.4x3.6
  • Hollow Part Volume
    1-15L
  • Clamping Force (kN)
    158
  • PLC Brand
    MITSUBISHI
  • Screw L/D Ratio
    25
  • Screw Diameter (mm)
    100 Mm
  • Output (kg/h)
    230 Kg/h
  • Automation
    Automatic
  • No. Of Screw Heating Zone
    7
  • Screw Heating Power(kW)
    26 KW
  • Extruder Motor Power(kW)
    75 KW
  • Mold Platen Size(Width)(mm)
    730 Mm
  • Mold Platen Size(Height)(mm)
    540 Mm
  • Air Pressure(MPa)
    0.6 MPa
  • Air Comsumption(m³/min)
    1.2 M³/min
  • Die Head Heating Power(kW)
    15 KW
  • Accumulator Capacity(L)
    0 L
  • Power (kW)
    131.1
  • Weight (T)
    25
  • Key Selling Points
    Long Service Life
  • Warranty
    1 Year
  • Applicable Industries
    Energy & Mining, Hotels, Home Use, Machinery Repair Shops, Restaurant, Food & Beverage Factory, Farms
  • Showroom Location
    Egypt, Indonesia, Pakistan, Thailand, Chile, Algeria
  • Rotary Cylinder Brand
    FESTO
  • Station
    Double
  • Suitable Bottle
    1-15L
  • Key Words
    Automatic Extrusion Blow Moulding Machine
  • Packing
    Wooden
  • Use
    Hollow Moulding
  • Parison Control
    MOOG
  • Max. Size Of Mold
    730*540
  • Hydraulic Valve
    Yuken
  • Color
    Blue
  • Port
    SHANGHAI
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    TONGDA HSll15L
  • Minimum Order Quantity
    1SET
  • Price
    $99,999.00 - $119,999.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

Plastic 10L Full Automatic Blow Moulding Machine hydraulic Double Station

TONGDA HSll15L Fully Automatic Plastic 10l Blow Molding Machine



Product Description



This is our best series machine.This is hydraulic servo system.The clamping unit is elbow style and the clamping force is more uniform.It is high speed and energy-saving. This machine is suitable for stacking product,jerry can, etc.It can be also equipped with several die-heads and then to make the small product.



Technical Parameters



MODEL Units HSII-15L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 12
Output of HDPE kg/h 180
Clamping force kn 158
Screw diametre mm 110
Screw heating power kw 21
Blow pressure mpa 0.6
Size of machine m 4.9*3.1*3.2



Product Details



Hydraulic Servo:Energy saving and high precision

Electric gauge:Fast speed and high precision

Plastic 10L Full Automatic Blow Moulding Machine hydraulic Double Station 0



CE Standard

Modularized components, easy replace

Digitizing and famous

Plastic 10L Full Automatic Blow Moulding Machine hydraulic Double Station 1



Company Information



From negotiation to determining the optimal production plan for customers, from equipment installation and commissioning, maintenance, system operation to production process, we provide you with reasonable suggestions and perfect solutions at each stage, as well as fast spare parts supply and convenience. technical service and support.

Plastic 10L Full Automatic Blow Moulding Machine hydraulic Double Station 2Plastic 10L Full Automatic Blow Moulding Machine hydraulic Double Station 3Plastic 10L Full Automatic Blow Moulding Machine hydraulic Double Station 3





After-sales services



Tongda has a sound service network, perfect after-sales service system, 14 professional after-sales service teams across the country, and a timely response service mechanism to continuously improve user satisfaction. Serve every customer sincerely, respond quickly, and solve the problems raised by customers in a timely manner. We will regularly send debugging engineers to visit customers and solve problems in time.

Plastic 10L Full Automatic Blow Moulding Machine hydraulic Double Station 5



FAQ



TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function


Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.


Q: How big is your company?
A: our company has 400 employees and A building area of 100,000 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1999.


Q: How long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
