PP Plastic Bottle Production Machine Extrusion HDPE Blow Moulding Machine

PP Plastic Bottle Production Machine Extrusion HDPE Blow Moulding Machine

  • High Light

    Extrusion Plastic Bottle Production Machine

    ,

    HDPE Plastic Bottle Production Machine

    ,

    PP HDPE Blow Moulding Machine

  • Marketing Type
    New Product 2020
  • Hollow Part Volume
    1-5L
  • Rotary Cylinder Brand
    FESTO
  • Station
    Double Station
  • Suitable Bottle
    1-5L
  • Parison Control
    MOOG
  • Hydraulic Valve
    Yuken
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    HTSII-5L
  • Minimum Order Quantity
    1SET
  • Price
    $39,999.00 - $54,999.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

PP Plastic Bottle Production Machine Extrusion HDPE Blow Moulding Machine

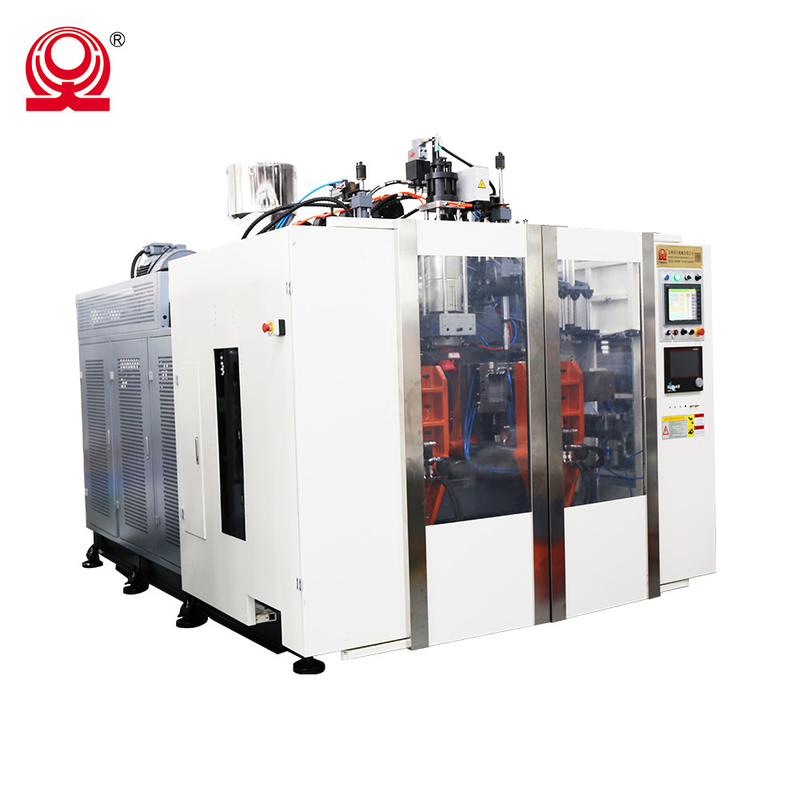

TONGDA HTSII5L Extrusion Blow Moulding Machine Produce HDPE PP Bottles

Product Description


HTS hydraulic series machine.It is double station.This machine is suitable for the jerry can.It can be equipped with several die-heads and then it is also suitable for small bottles.The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.







Technical Parameters


MODEL
Units
HTSll-5L

Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume
L
5

Output of HDPE
kg/h
110

Clamping force
kn
110

Screw diametre
mm
80

Screw heating power
kw
19

Blow pressure
mpa
0.6

Size of machine
m
4.1*2.6*2.7


PP Plastic Bottle Production Machine Extrusion HDPE Blow Moulding Machine 0



Product Details
PP Plastic Bottle Production Machine Extrusion HDPE Blow Moulding Machine 1

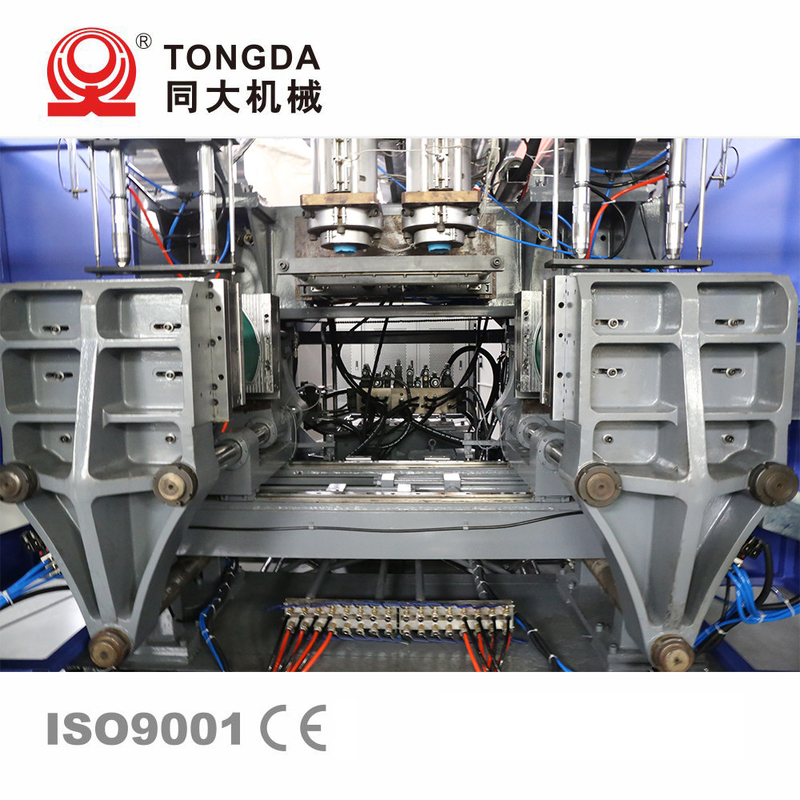

Stable and efficient clamping system

Adjustable rotary type blow pin unit, suitable for oblique bottles



Plasticizing system can be designed for multi-layers, 1-4 layers are definitely available, and have high degree customization space.

Honeycomb ventilation holes to ensure better heat dissipation performance.




Company Information
PP Plastic Bottle Production Machine Extrusion HDPE Blow Moulding Machine 2

Suzhou Tongda Machinery Co., Ltd has established Engineering Technology Research and Development Center, and Jiangsu Province excellent Graduate work station. Jiangsu Enterprise Research and Development Center, Jiangsu Province Extrusion blow Molding Technology Technology Center, Jiangsu Province post-doctoral innovation practice base and other R & D platforms. That means constantly exploring the expansion of new areas.




PP Plastic Bottle Production Machine Extrusion HDPE Blow Moulding Machine 3
Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been focusing on the research, development and product application of extrusion blow molding machines. The factory covers an area of more than 80 acres of land and has more than 270 employees. The company has established Engineering Technology Research and Development Center, and Jiangsu Province excellent Graduate work Jiangsu Enterprise Research and Development Center, Jiangsu Province Extrusion blow Molding Technology Technology Center has more than 50 R & D personnel, including 1 national science and technology talent, Station. Jiangsu Province post-doctoral innovation practice base and other R & D platforms, at present, the that means constantly exploring the expansion of new areas. Warmly welcome new and old customers to visit, to guide, 4 senior masters,15 bachelors, hosting the development of two national standards and participating in the formulation of a national standard. "Working Together to Grow Together" is the spirit of TONGDA company, to cooperate with us and we are always at your service to provide you with strong support.




FAQ
TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function


Q: how big is your company?
A: our company has 270 employees and A building area of 53,330 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1998.

Q: how long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
