Industrial Hollow Blow Molding Machine High Speed Plastic Bottle Blowing Machine

Industrial Hollow Blow Molding Machine High Speed Plastic Bottle Blowing Machine

  • High Light

    High Speed Hollow Blow Molding Machine

    ,

    Industrial Hollow Blow Molding Machine

    ,

    ISO9001 Plastic Bottle Blowing Machine

  • Core Components
    PLC, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
  • Plastic Processed
    PP, HDPE, PC, ABS, PVC, PE, EVA, PA, ABS/PP, PE/PP, HDPE/PP, PETG
  • Voltage
    Customized To Customer Needs
  • Dimension(L*W*H)
    2.78m*1.55m*2.35m
  • Hollow Part Volume
    1-2L
  • Clamping Force (kN)
    44
  • PLC Brand
    MITSUBISHI
  • Screw L/D Ratio
    25
  • Screw Diameter (mm)
    50 Mm
  • Output (kg/h)
    50 Kg/h
  • Automation
    Automatic
  • No. Of Screw Heating Zone
    3
  • Screw Heating Power(kW)
    6.8 KW
  • Extruder Motor Power(kW)
    11 KW
  • Air Pressure(MPa)
    0.6 MPa
  • Die Head Heating Power(kW)
    7 KW
  • Power (kW)
    30.5
  • Showroom Location
    Egypt, Indonesia, Pakistan, Thailand, Chile, Algeria
  • Station
    Single
  • Suitable Bottle
    1-2L
  • Key Words
    Automatic Extrusion Blow Moulding Machine
  • Packing
    Wooden
  • Parison Control
    MOOG
  • Max. Size Of Mold
    360*320
  • Hydraulic Valve
    Yuken
  • Color
    White
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    TONGDA HTS2L
  • Minimum Order Quantity
    1SET
  • Price
    $21,999.00 - $29,999.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

Industrial Hollow Blow Molding Machine High Speed Plastic Bottle Blowing Machine

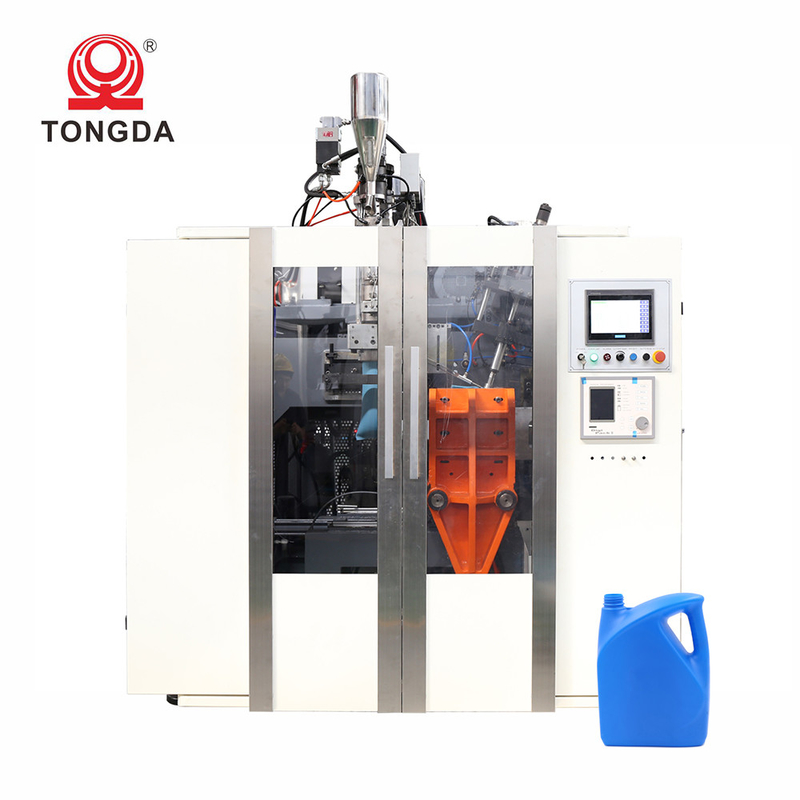

TONGDA HTS2L New Condition High Speed Plastic Bottle Blow Molding Machine



Product Description



This machine is suitable for the small bottles.The main parts of this machine are designed and manufactured by ourself.E.g:cream lotion cosmetic bottle/jar/toilet liquid cleaner bottle/laundry detergent cleaner bottle

Technical Parameters



MODEL Units HTS-2L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 5
Output of HDPE kg/h 50
Clamping force kn 44
Screw diametre mm 50
Screw heating power kw 6.8
Blow pressure mpa 0.6
Size of machine m 2.78*1.55*2.35



Product Details



Air valve enlarged to ensure better shaping.

Multi-layer, durable tubes are used

Industrial Hollow Blow Molding Machine High Speed Plastic Bottle Blowing Machine 0



Plasticizing system can be designed for multi-layers, 1-4 layers are definitely available, and have high degree customization space.

Honeycomb ventilation holes to ensure better heat dissipation performance.

Industrial Hollow Blow Molding Machine High Speed Plastic Bottle Blowing Machine 1



Company Information



"Working Together to Grow Together" is the spirit of Suzhou Tongda Machinery, to cooperate with us and we are always at your service to provide you with strong support.

Industrial Hollow Blow Molding Machine High Speed Plastic Bottle Blowing Machine 2

Industrial Hollow Blow Molding Machine High Speed Plastic Bottle Blowing Machine 3



After-sales services



During epidemic period, our team have helped customers start up more than 250sets new Tongda machines by online service, to help customer run the machine as soon, our after sales team helped around 3 hours till the mid-night.

Industrial Hollow Blow Molding Machine High Speed Plastic Bottle Blowing Machine 4



FAQ



Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.


Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.


Q: How big is your company?
A: our company has 400 employees and A building area of 100,000 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1999.
