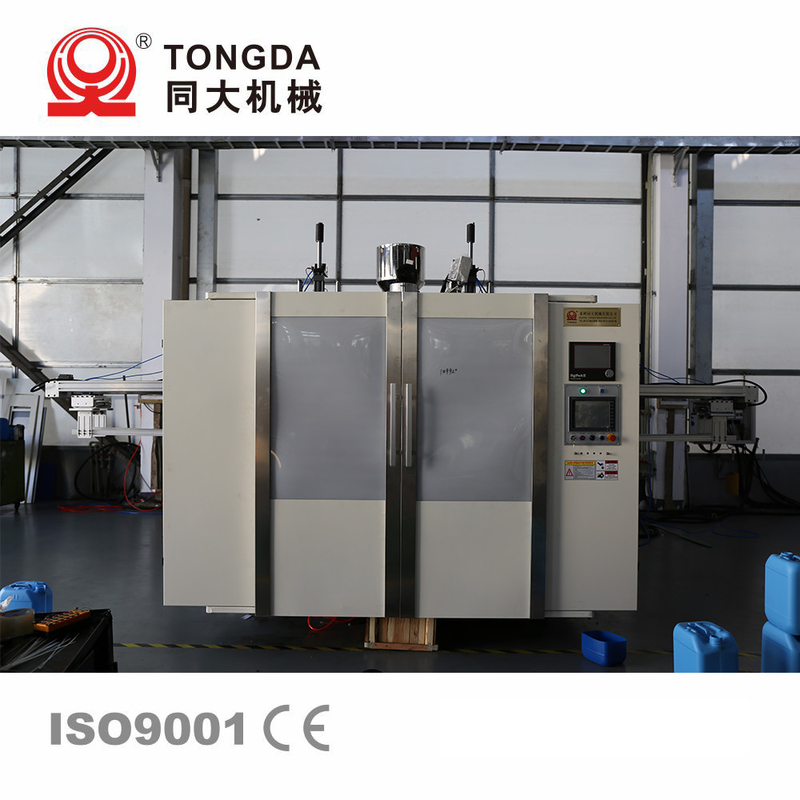

5 Liter Jar Extrusion Double Station Blow Molding Machine Full Automatic

5 Liter Jar Extrusion Double Station Blow Molding Machine Full Automatic

  • High Light

    Jar Double Station Blow Molding Machine

    ,

    Full Automatic Double Station Blow Molding Machine

    ,

    Extrusion 5 Liter Blow Moulding Machine

  • Dimension(L*W*H)
    3.2m*2.12m*2.55m
  • Clamping Force (kN)
    158KN
  • Screw L/D Ratio
    25
  • Screw Diameter (mm)
    90 Mm
  • Output (kg/h)
    130 Kg/h
  • Screw Heating Power(kW)
    17.4 KW
  • Extruder Motor Power(kW)
    37 KW
  • Station
    Double Station
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    HTSII-12L
  • Minimum Order Quantity
    1SET
  • Price
    $64,999.00 - $74,999.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

5 Liter Jar Extrusion Double Station Blow Molding Machine Full Automatic

TONGDA HTSll12L Full Automatic 5 Liter Extrusion Blow Moulding Machine For Bottles 5liter Jar

Product Description


This HTSII-12L machine is our normal series machine.It is double station.This machine is suitable for the stacking product,jerry can.It can be equipped with several die-heads and then it is also suitable for small product.



MODEL
Units
HTSll-12L
Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume
L
12

Output of HDPE
kg/h
130

Clamping force
kn
158

Screw diametre
mm
90

Screw heating power
kw
17.4

Blow pressure
mpa
0.6

Size of machine
m
4.3*2.96*3.1






5 Liter Jar Extrusion Double Station Blow Molding Machine Full Automatic 0





Product Details

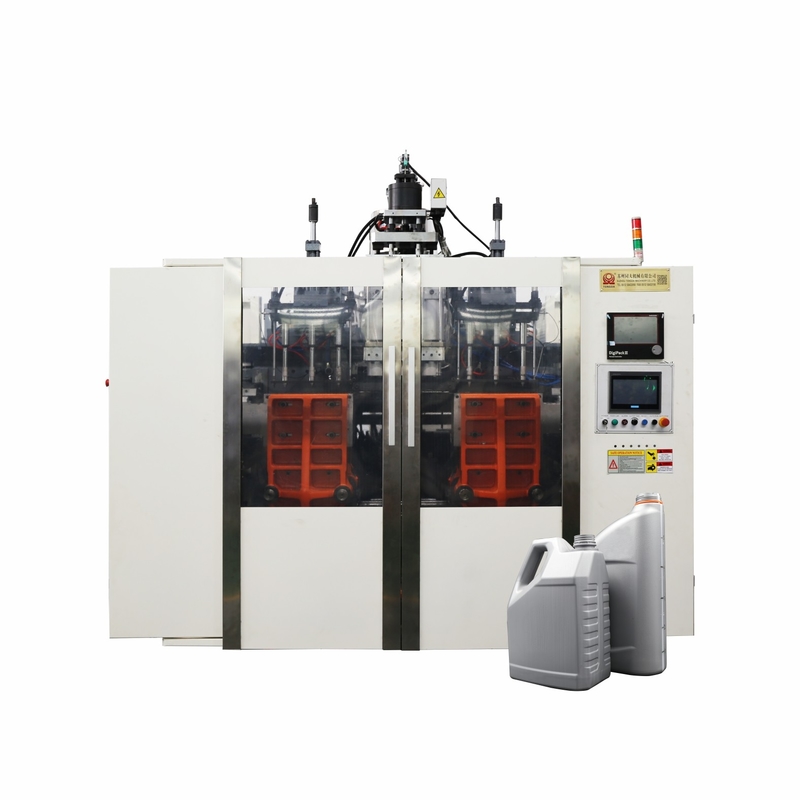

5 Liter Jar Extrusion Double Station Blow Molding Machine Full Automatic 1

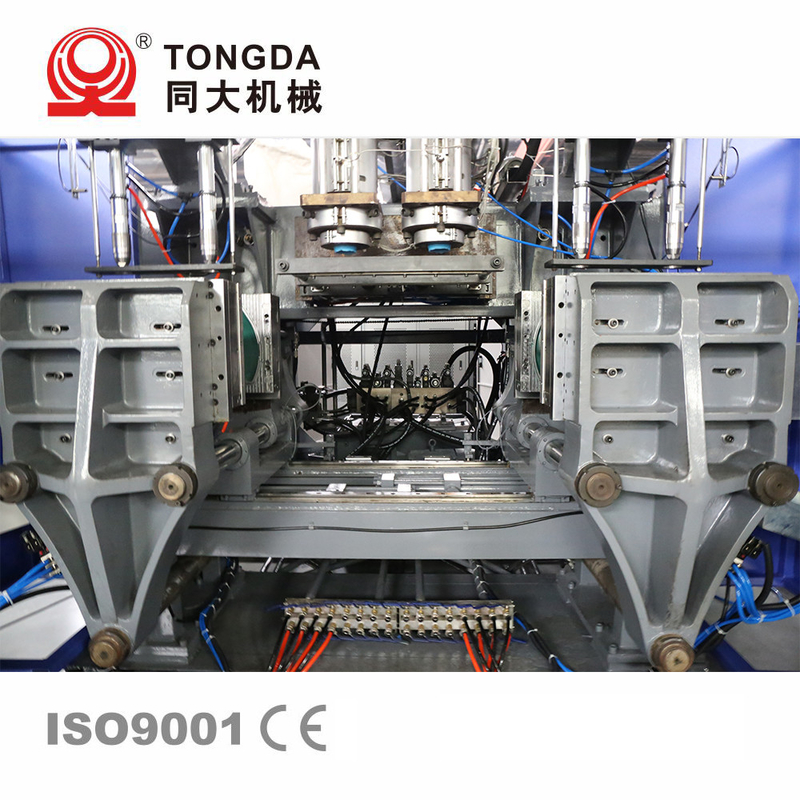

Stable and efficient clamping system

Adjustable rotary type blow pin unit, suitable for oblique bottles

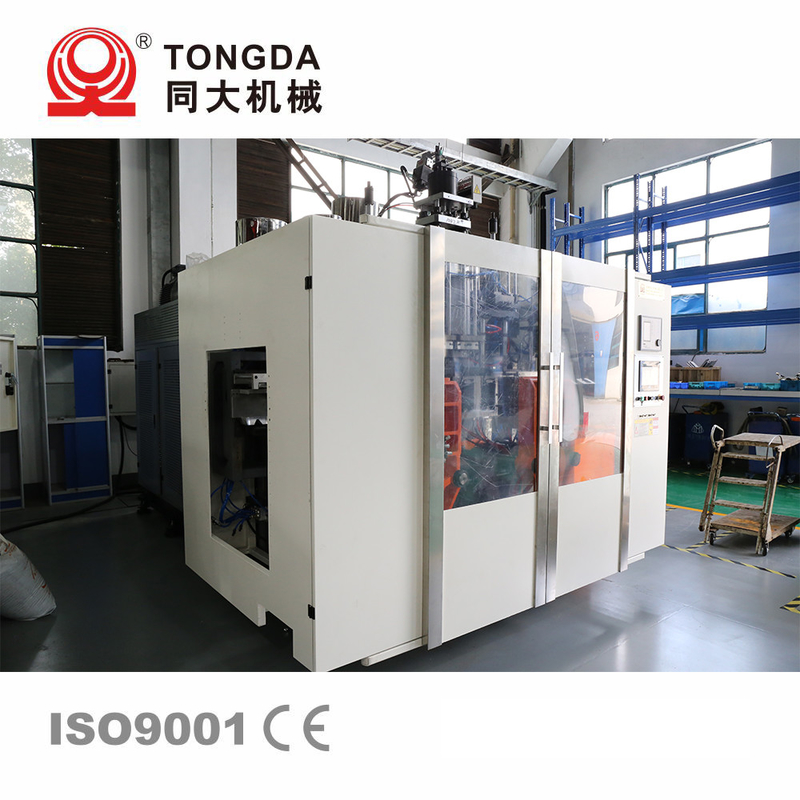

5 Liter Jar Extrusion Double Station Blow Molding Machine Full Automatic 2





Parison controller we use MOOG 200 Points or AUTOMATA 300 Points, with extremely sensitive action.

Touch screen we use large size INNOVANCE

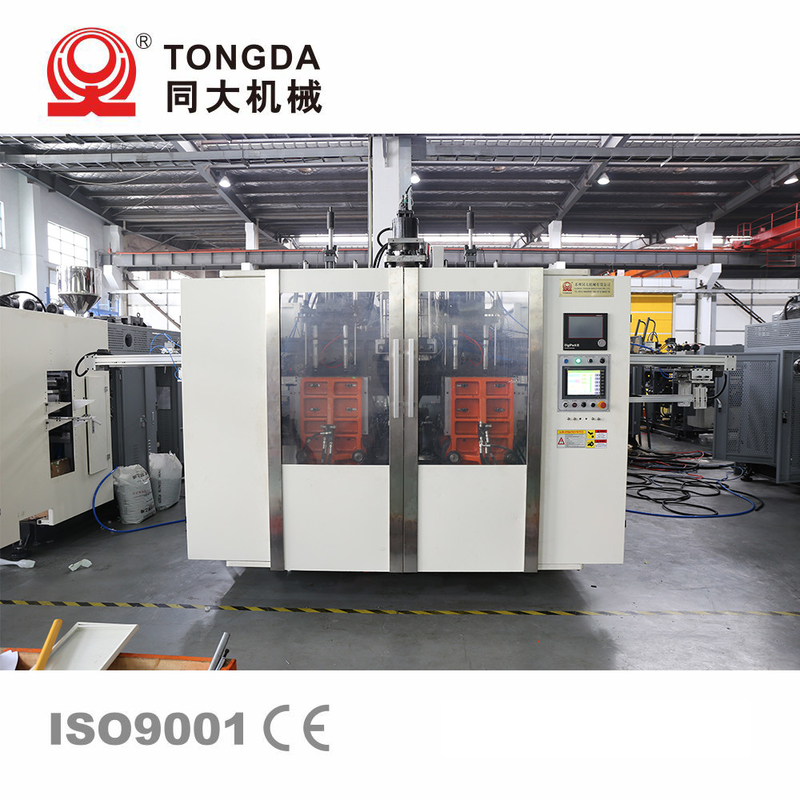

5 Liter Jar Extrusion Double Station Blow Molding Machine Full Automatic 3

Packaging for shipment
5 Liter Jar Extrusion Double Station Blow Molding Machine Full Automatic 4


Company Information


TONGDA TDB-120F Big 120L-220L Plastic Drum Barrel Making Blow Moulding Machine HDPE Drum Extruder Machinery 10

Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. We have more than 23 years experience always specialized in R&D and manufacturing of extrusion blow molding machine.

Our company have a service team with 35 qualified engineers can fly overseas to do the installation and commissioning.

Now we have more than 50 R & D personnel, including 1 national science and technology talent, 4 senior masters,15 bachelors, hosting the development of two national standards and participating in the formulation of a national standard.

TONGDA TDB-120F Big 120L-220L Plastic Drum Barrel Making Blow Moulding Machine HDPE Drum Extruder Machinery 11


Suzhou Tongda Machinery have more than 20,000m2 factory buildings and other facilicities and a new intelligent manufacturing factory with 55,000m2 area. The I phase 20,000m2 area factory will be put into use in June, 2022. And on May 19th, 2022, we just held the II phase intelligent manufacturing base groundbreaking ceremony.


TONGDA TDB-120F Big 120L-220L Plastic Drum Barrel Making Blow Moulding Machine HDPE Drum Extruder Machinery 14TONGDA TDB-120F Big 120L-220L Plastic Drum Barrel Making Blow Moulding Machine HDPE Drum Extruder Machinery 15



After-sales Service


TONGDA TDB-120F Big 120L-220L Plastic Drum Barrel Making Blow Moulding Machine HDPE Drum Extruder Machinery 17

TONGDA TDB-120F Big 120L-220L Plastic Drum Barrel Making Blow Moulding Machine HDPE Drum Extruder Machinery 18

During epidemic period, our team have helped customers start up more than 250sets new Tongda machines by online serviceto help customer run the machine as soon, our after sales team helped around 3 hours till the mid-night.




 Why Choose Us



Over 7000sets Tongda machines are serving customers all over the world

Having service office in Russia, Egypt, Jordan, Thailand, Chile, Indonesia and Algeria

We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.

TONGDA TDB-120F Big 120L-220L Plastic Drum Barrel Making Blow Moulding Machine HDPE Drum Extruder Machinery 19

FAQ


Q: How big is your company?
A: our company has 400 employees and A building area of 100,000 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1999.


Q: How long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.



Q: How you manufacture the machines?
A: We have CNC Gantary machining center, and vertical machining center to processing the machine parts by ourselves to keep the precision.


Q: What brand parison controller youre using?
A: We are using MOOG 200Points and Automata 300Points parison controller.
