Plastic Bottle 30L Jerry Can Blowing Machine Two Station 141kW

Plastic Bottle 30L Jerry Can Blowing Machine Two Station 141kW

Products - Large Blow Molding Machine
  • High Light

    30L Jerry Can Blowing Machine

    ,

    Two Station Jerry Can Blowing Machine

    ,

    Two Station Plastic Bottle Blowing Machine

  • Dimension(L*W*H)
    6.3m*3.4m*3.9m
  • Clamping Force (kN)
    250
  • Screw L/D Ratio
    28
  • Screw Diameter (mm)
    100 Mm
  • Output (kg/h)
    230 Kg/h
  • Air Pressure(MPa)
    0.6 MPa
  • Air Comsumption(m³/min)
    1.2 M³/min
  • Power (kW)
    141
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    TONGDA HTll30L
  • Minimum Order Quantity
    1SET
  • Price
    $79,999.00 - $94,999.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    70 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

Plastic Bottle 30L Jerry Can Blowing Machine Two Station 141kW

  • Plastic Bottle 30L Jerry Can Blowing Machine Two Station 141kW
  • Plastic Bottle 30L Jerry Can Blowing Machine Two Station 141kW
  • Plastic Bottle 30L Jerry Can Blowing Machine Two Station 141kW
  • Plastic Bottle 30L Jerry Can Blowing Machine Two Station 141kW
  • Plastic Bottle 30L Jerry Can Blowing Machine Two Station 141kW
  • Plastic Bottle 30L Jerry Can Blowing Machine Two Station 141kW
Get Price Contact Now

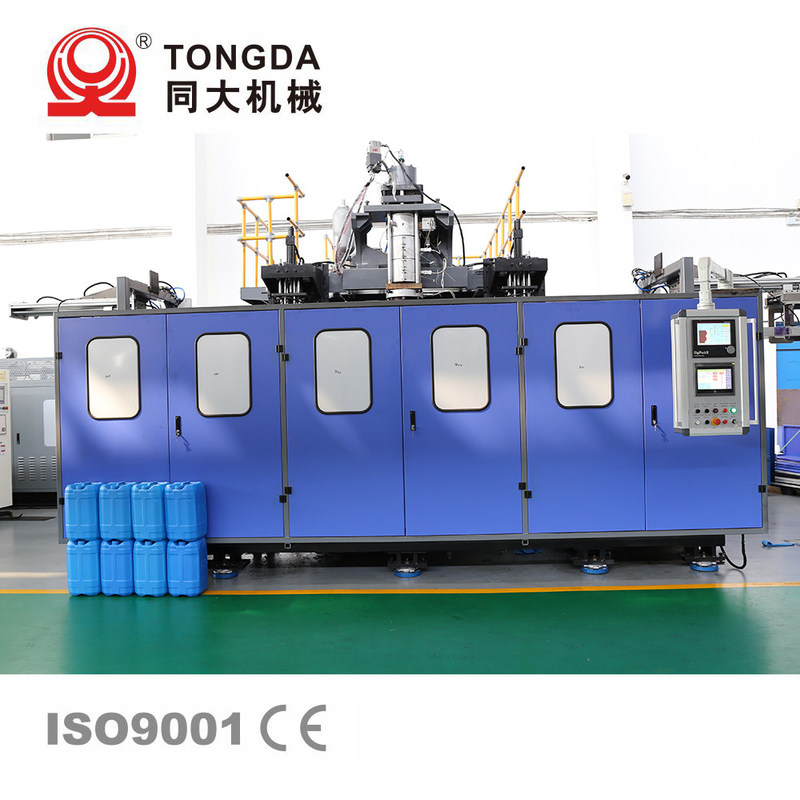

TONGDA HTII30L plastic bottle 30L jerry can blow molding machine two station

Product Description

HTll-30L

This is double station.This is suitable for making the 20L~30Lstacking product.The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements, we can provide customized services for you.

Technical Parameters

MODEL Units HTII-30L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 30
Output of HDPE kg/h 230
Clamping force kn 250
Screw diametre mm 100 28:1
Screw heating power kw 26
Blow pressure mpa 0.6
Size of machine m 6.3×3.4×3.9




Product Details

Plastic Bottle 30L Jerry Can Blowing Machine Two Station 141kW 0

Standard air valve, with stable function

Plastic Bottle 30L Jerry Can Blowing Machine Two Station 141kW 1

Our Advantages

Plastic Bottle 30L Jerry Can Blowing Machine Two Station 141kW 2
Plastic Bottle 30L Jerry Can Blowing Machine Two Station 141kW 3

After-sales service

Plastic Bottle 30L Jerry Can Blowing Machine Two Station 141kW 4
Arrange engineer to customer's factory

Plastic Bottle 30L Jerry Can Blowing Machine Two Station 141kW 5
We supply the after-service online 24 hours

Company Information

Plastic Bottle 30L Jerry Can Blowing Machine Two Station 141kW 6
Plastic Bottle 30L Jerry Can Blowing Machine Two Station 141kW 7

Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. We have more than 23 years experience always specialized in R&D and manufacturing of extrusion blow molding machine.

Plastic Bottle 30L Jerry Can Blowing Machine Two Station 141kW 8

Plastic Bottle 30L Jerry Can Blowing Machine Two Station 141kW 9

Plastic Bottle 30L Jerry Can Blowing Machine Two Station 141kW 10
Under normal conditions,the blow molding machine to abroad will be packaged in wooden case. ln addition,we will also pack the machine according to the requirements of specific customers.Subject to the measurement of main blower,we will choose corresponding wooden case, TONGDA is a professional mould machinery company we will try our best to satisfy the kinds of demand of customers.
Why Choose Us
Plastic Bottle 30L Jerry Can Blowing Machine Two Station 141kW 11

Service Marketing Network

1.Over four thousand Tongda machines have been serving customers all over the world.
2.The company has service outlets in Russia, Egypt, Jordan, Thailand, Chile, Indonesia and Algeria.
3.our company has exported over 4000 units machine to more than 89 countries and regions, such as USA, UK, Australia, Greece,Poland.Russia,Belarus,South America, South Africa,Indonesia, Egypt, Syria, Ethiopia.We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.
Plastic Bottle 30L Jerry Can Blowing Machine Two Station 141kW 12
Our Machinery has been keeping good cooperative relationship with customers since our establishing.
The satisfaction of our customers are the pursuit of every member of Tongda,The only way we service in the competitive market is to help our customers to full fill their requirement.

FAQ

Advantages of TONGDA tech teams
1. 600 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.

Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.

Q: how big is your company?
A: our company has 270 employees and A building area of 53,330 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1998.
