20L Drum Plastic Blow Molding Machine Two Station Container Manufacturing Machine

20L Drum Plastic Blow Molding Machine Two Station Container Manufacturing Machine

Products - Plastic Blow Molding Machine
  • High Light

    Two Station Plastic Blow Molding Machine

    ,

    CE Plastic Blow Molding Machine

    ,

    20L Plastic Container Manufacturing Machine

  • Clamping Force (kN)
    250KN
  • Output (kg/h)
    230 Kg/h
  • Mold Platen Size(Width)(mm)
    680 Mm
  • Mold Platen Size(Height)(mm)
    830 Mm
  • Air Pressure(MPa)
    0.6 MPa
  • Air Comsumption(m³/min)
    1.2 M³/min
  • Suitable Bottle
    Max 30L
  • Max. Size Of Mold
    680*830mm
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    HTII-30L
  • Minimum Order Quantity
    1SET
  • Price
    $79,999.00 - $94,999.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

20L Drum Plastic Blow Molding Machine Two Station Container Manufacturing Machine

  • 20L Drum Plastic Blow Molding Machine Two Station Container Manufacturing Machine
  • 20L Drum Plastic Blow Molding Machine Two Station Container Manufacturing Machine
  • 20L Drum Plastic Blow Molding Machine Two Station Container Manufacturing Machine
  • 20L Drum Plastic Blow Molding Machine Two Station Container Manufacturing Machine
  • 20L Drum Plastic Blow Molding Machine Two Station Container Manufacturing Machine
  • 20L Drum Plastic Blow Molding Machine Two Station Container Manufacturing Machine
Get Price Contact Now

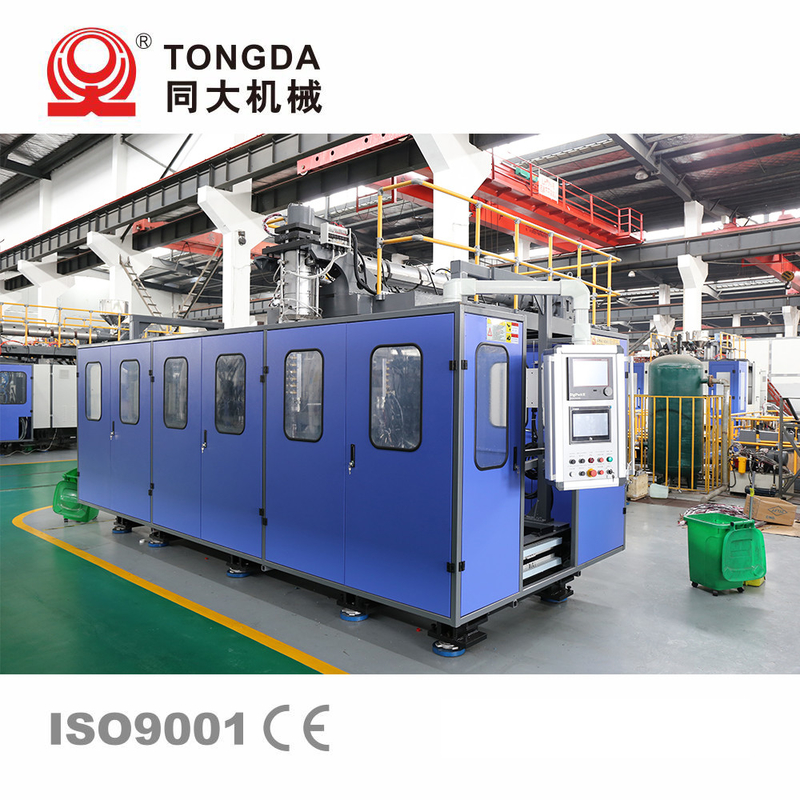

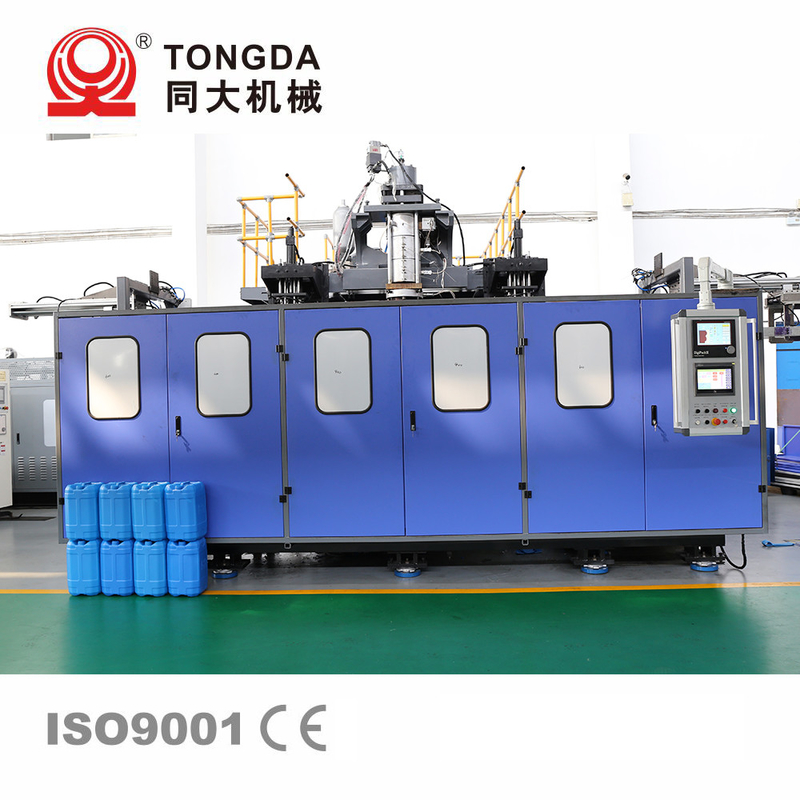

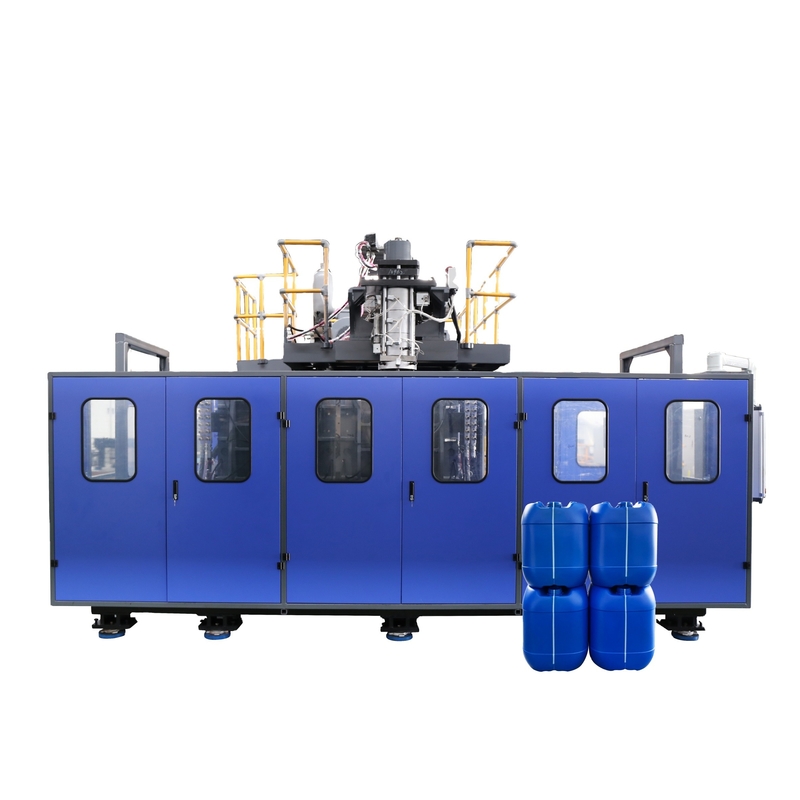

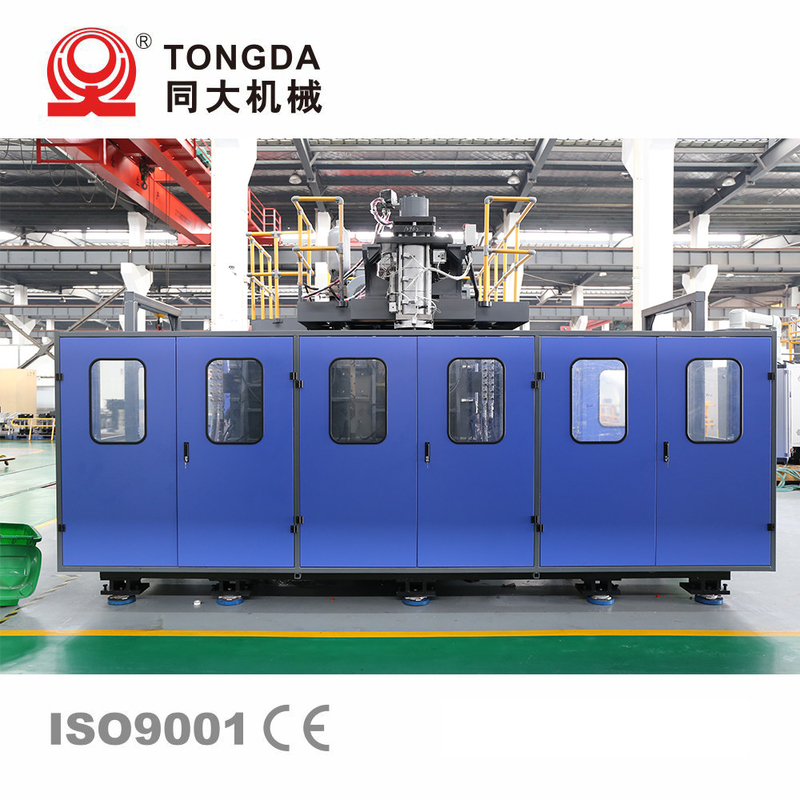

TONGDA HTll-30L Two Station HDPE 20L Plastic Drum Container Manufacturing Extrusion Blow Moulding Machine


Product Description


HTII-30L machine is one of our popular machine for customers, with wide application, are suitable for producing 20-30L plastic container drums, stackable jerry can with higher output demand. The stackable jerry can is the most popular product it produce.

It is very mature machine, with high reliablity and durablity.



Equipped with continuous die head, it is suitable for adding view strip line screw, and the parison control is stable because it is equipped with energy accumulator.



Technical Parameters

MODEL
Units
HTll-30L
Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume
L
30

Output of HDPE
kg/h
230

Clamping force
kn
250

Screw diametre
mm
100

Screw heating power
kw
26

Blow pressure
mpa
0.6

Size of machine
m
6.3*3.4*3.9




Product Details

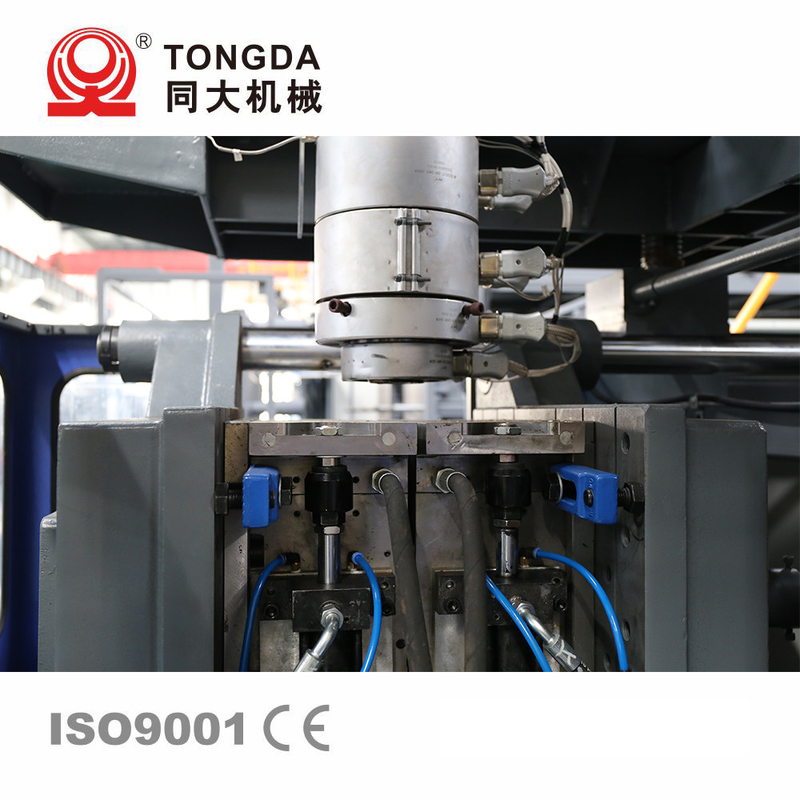

20L Drum Plastic Blow Molding Machine Two Station Container Manufacturing Machine 0



Air valve enlarged, to make the shaping function better
Tiebar-less type mould locking, with higher clamping force, and easy for mould changing.

CE Standard modularized components, eady to replace



20L Drum Plastic Blow Molding Machine Two Station Container Manufacturing Machine 1







Company Information

Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. We have more than 23 years experience always specialized in R&D and manufacturing of extrusion blow molding machine.
"Working Together to Grow Together" is the spirit of Suzhou Tongda Machinery, to cooperate with us and we are always at your service to provide you with strong support.

Our company have a service team with 35 qualified engineers can fly overseas to do the installation and commissioning.

Now we have more than 50 R & D personnel, including 1 national science and technology talent, 4 senior masters,15 bachelors, hosting the development of two national standards and participating in the formulation of a national standard.

20L Drum Plastic Blow Molding Machine Two Station Container Manufacturing Machine 220L Drum Plastic Blow Molding Machine Two Station Container Manufacturing Machine 3






After-sales Service



During epidemic period, our team have helped customers start up more than 250sets new Tongda machines by online service, to help customer run the machine as soon, our after sales team helped around 3 hours till the mid-night.
20L Drum Plastic Blow Molding Machine Two Station Container Manufacturing Machine 4


Why Choose Us



  • Over 7000sets Tongda machines are serving customers all over the world
  • Having service office in Russia, Egypt, Jordan, Thailand, Chile, Indonesia and Algeria
  • We are not only providing our customers with high quality products, but also provide high quality service which will be rapidly and timely sent to every customer.

20L Drum Plastic Blow Molding Machine Two Station Container Manufacturing Machine 5



FAQ​





Q: How big is your company?
A: our company has 400 employees and A building area of 100,000 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1999.


Q: How long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.



Q: How you manufacture the machines?
A: We have CNC Gantary machining center, and vertical machining center to processing the machine parts by ourselves to keep the precision.
Q: What brand parison controller you’re using?
A: We are using MOOG 200Points and Automata 300Points parison controller.

Our company have a service team with 35 qualified engineers can fly overseas to do the installation and commissioning.

Now we have more than 50 R & D personnel, including 1 national science and technology talent, 4 senior masters,15 bachelors, hosting the development of two national standards and participating in the formulation of a national standard.
