Polycarbonate Drum Blow Molding Machine Extrusion Molding Plastic Machine

Polycarbonate Drum Blow Molding Machine Extrusion Molding Plastic Machine

Products - Jerry Can Blow Molding Machine
  • High Light

    Polycarbonate Drum Blow Molding Machine

    ,

    ISO9001 Drum Blow Molding Machine

    ,

    Extrusion Molding Plastic Machine

  • Dimension(L*W*H)
    4.3m*2.9m*3.1m
  • Clamping Force (kN)
    158
  • Screw Diameter (mm)
    90 Mm
  • Output (kg/h)
    130 Kg/h
  • Die Head Heating Power(kW)
    9.1 KW
  • Weight (T)
    11
  • Showroom Location
    Egypt, Indonesia, Pakistan, Thailand, Chile, Algeria
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    HTSll12L
  • Minimum Order Quantity
    1SET
  • Price
    $64,999.00 - $89,999.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

Polycarbonate Drum Blow Molding Machine Extrusion Molding Plastic Machine

  • Polycarbonate Drum Blow Molding Machine Extrusion Molding Plastic Machine
  • Polycarbonate Drum Blow Molding Machine Extrusion Molding Plastic Machine
  • Polycarbonate Drum Blow Molding Machine Extrusion Molding Plastic Machine
  • Polycarbonate Drum Blow Molding Machine Extrusion Molding Plastic Machine
  • Polycarbonate Drum Blow Molding Machine Extrusion Molding Plastic Machine
  • Polycarbonate Drum Blow Molding Machine Extrusion Molding Plastic Machine
Get Price Contact Now
TONGDA HTSll12L Fully automatic polycarbonate extrusion drum blow molding machine


Product Description



This is our normal series machine.It is double station.This machine is suitable for the stacking product,jerry can.It can be equipped with several die-heads and then it is also suitable for small product.The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.



Technical Parameters



MODEL
Units
HTSll-12L
Click for the latest discount details




Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume
L
12

Output of HDPE
kg/h
130

Clamping force
kn
158

Screw diametre
mm
90

Screw heating power
kw
15.6

Blow pressure
mpa
0.6

Size of machine
m
4.3*2.9*3.1



Product Details

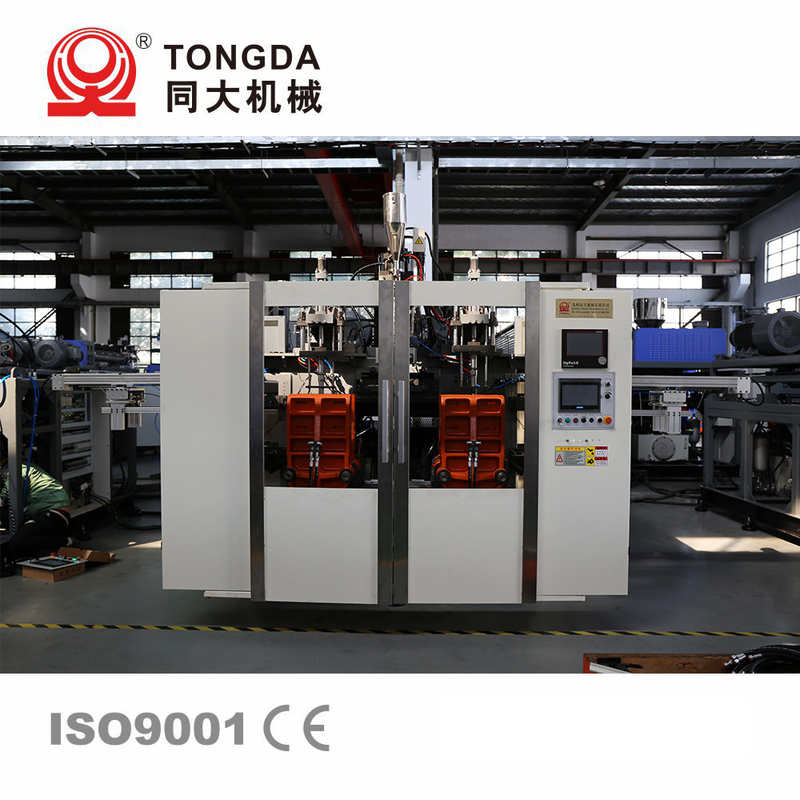

Polycarbonate Drum Blow Molding Machine Extrusion Molding Plastic Machine 0

Air valve enlarged to ensure better shaping.

Multi-layer, durable tubes are used

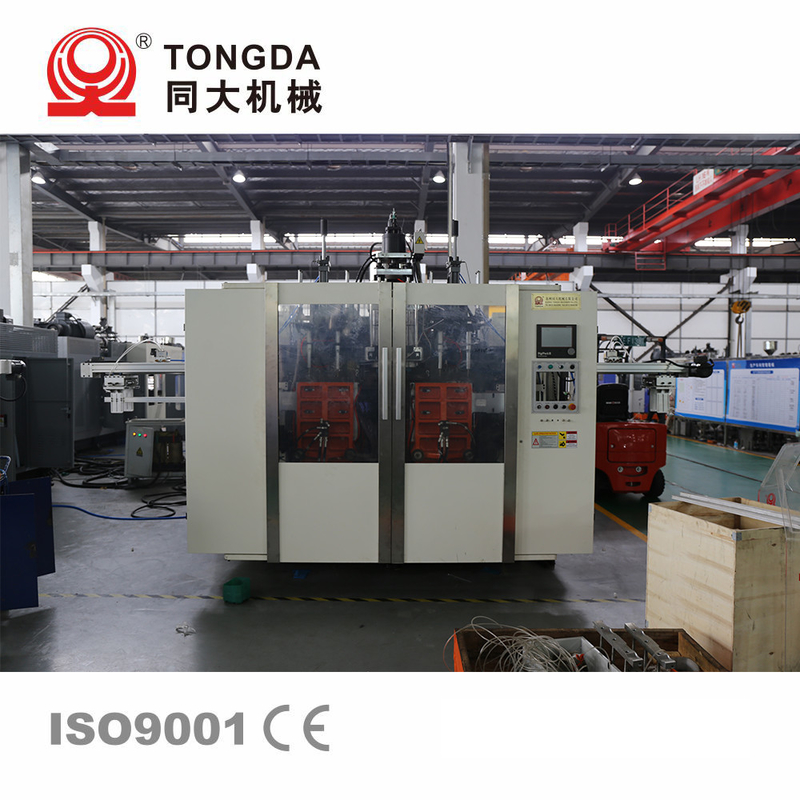

Polycarbonate Drum Blow Molding Machine Extrusion Molding Plastic Machine 1

Plasticizing system can be designed for multi-layers, 1-4 layers are definitely available, and have high degree customization space.

Honeycomb ventilation holes to ensure better heat dissipation performance.

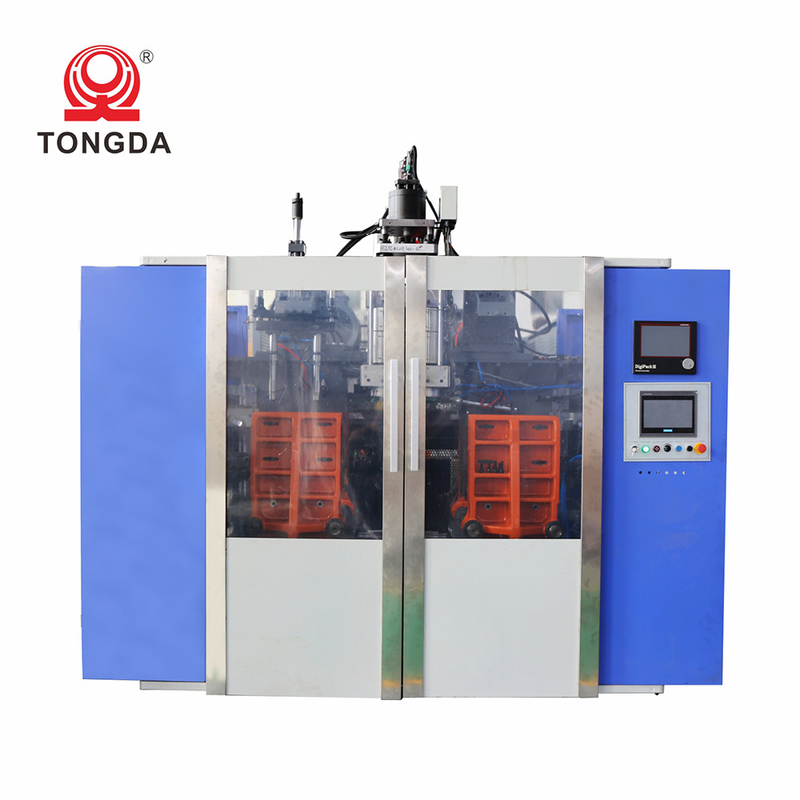

Polycarbonate Drum Blow Molding Machine Extrusion Molding Plastic Machine 2

Hydraulic valve group, cost effective, fast reaction, the clamping force is strengthened for the molding locking



Company Information

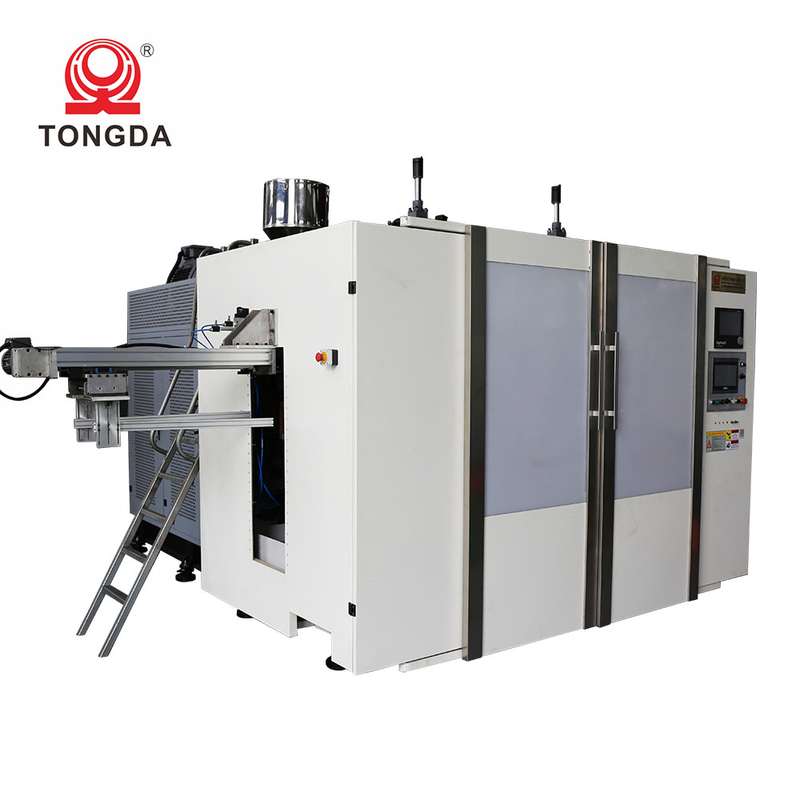

Polycarbonate Drum Blow Molding Machine Extrusion Molding Plastic Machine 3

Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. We have more than 23 years experience always specialized in R&D and manufacturing of extrusion blow molding machine.



After-sales Service

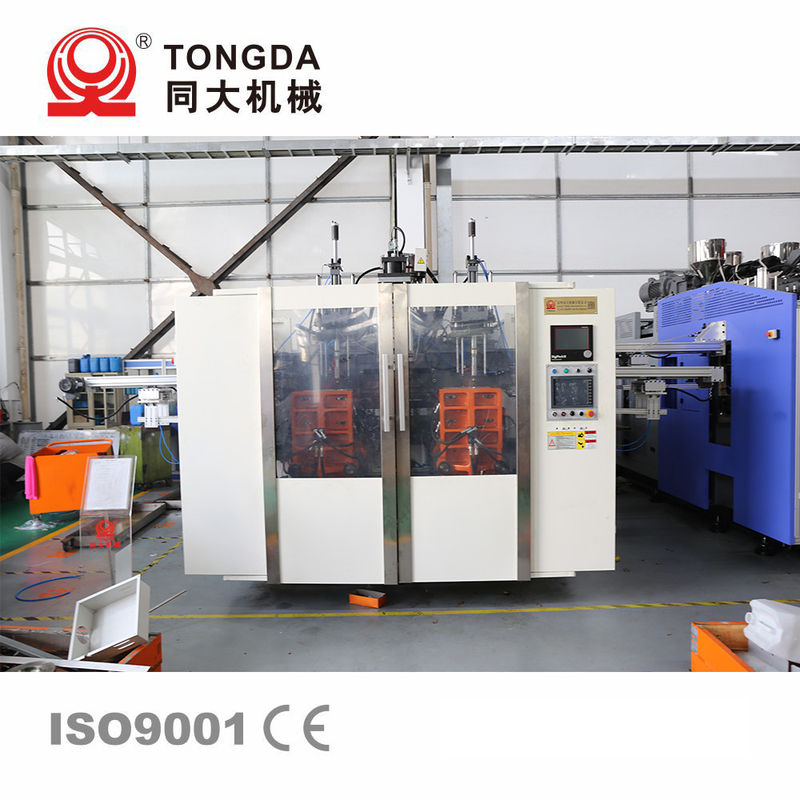

Polycarbonate Drum Blow Molding Machine Extrusion Molding Plastic Machine 4
Arrange engineer to customer's factory

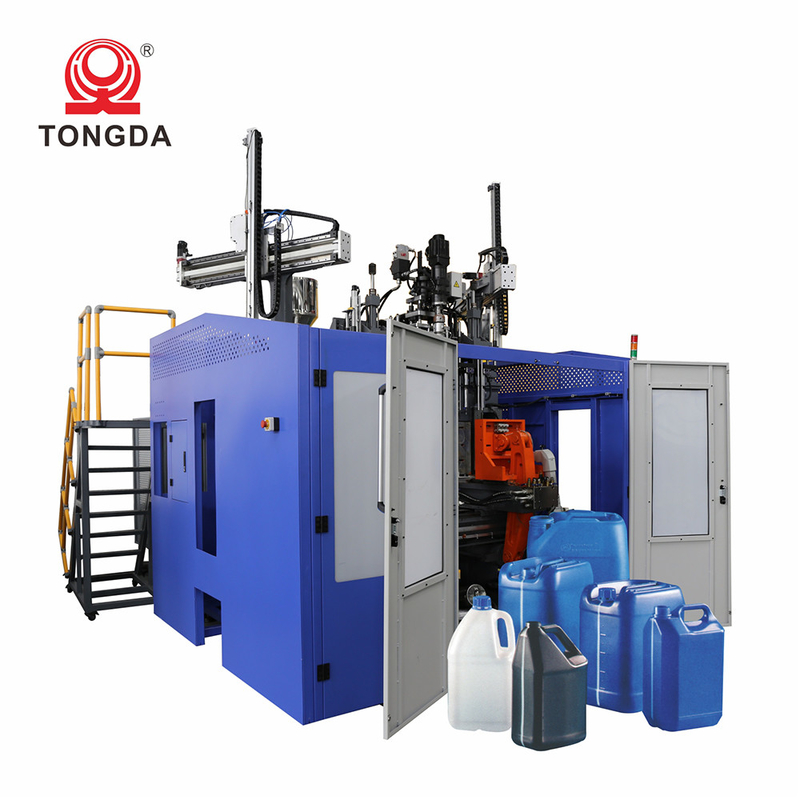

Polycarbonate Drum Blow Molding Machine Extrusion Molding Plastic Machine 5

During epidemic period, our team have helped customers start up more than 250sets new Tongda machines by online service, to help customer run the machine as soon, our after sales team helped around 3 hours till the mid-night.





FAQ


TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function

Advantages of TONGDA tech teams
1. 600 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.

Q: how big is your company?
A: our company has 270 employees and A building area of 53,330 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1998.
