Product Description

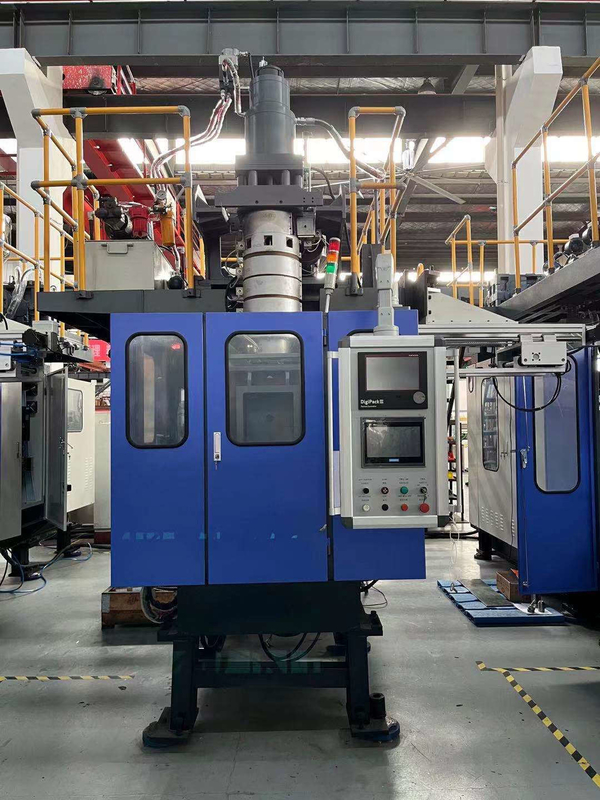

This machine is suitable for 10~25L product and it‘s bottom blow.The die-head is accumulator. It equipped with servo motor.The main parts of this machine are designed and manufactured by ourself. We do the independent R&D and inspection. If you have other special requirements, we can provide customized services for you.
Technical Parameters
|
MODEL
|
Units
|
TDB-25F
|
Click for the latest discount details
Remarks: If you have other special requirements,we can provide customized services for you.
|
|
Max. Product volume
|
L
|
30
|
|
|
Output of HDPE
|
kg/h
|
110
|
|
|
Clamping force
|
kn
|
215
|
|
|
Screw diametre
|
mm
|
80
|
|
|
Screw heating power
|
kw
|
17.6
|
|
|
Blow pressure
|
mpa
|
0.8
|
|
|
Size of machine
|
m
|
4.1*2.2*3.5
|
|
Product Details
Material injection: Independent single (large) oil cylinder injection to ensure the concentricity of the injection material, and absolutely avoid the asynchronous phenomenon of double oil cylinders. Tongda's unique technology:10-stage pressure wall thickness control function, which reduces the difference in the upper and lower widths of the parison due to vertical stretching, so that improves the uniformity of product wall thickness.
Electronic control system: Japanese Mitsubishi PLC, HMI operation screen(Chinese & English), All data settings, changes, search, monitoring, fault diagnosis and other functions can be achieved on the touch screen, touchless working principle, durable components.
Hydraulic system: proportional pressure control, equipped with famous brand hydraulic components, which are stable and reliable.
