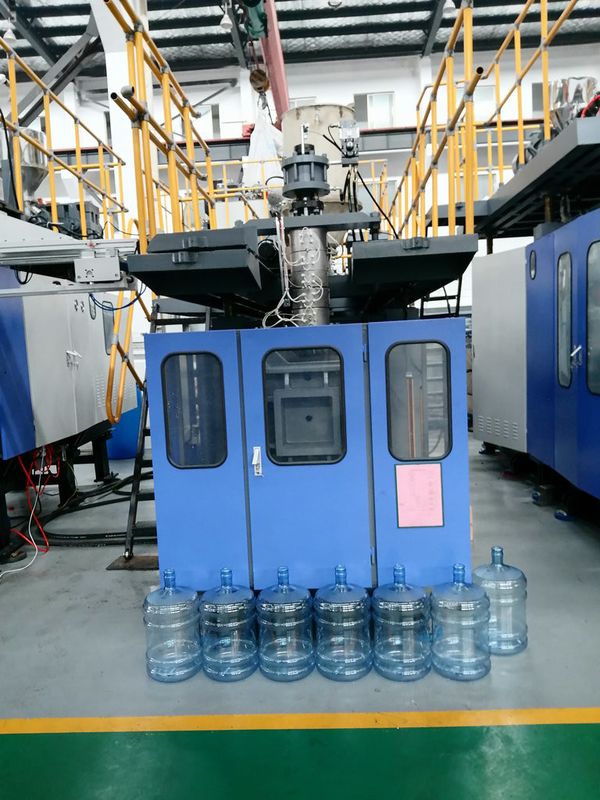

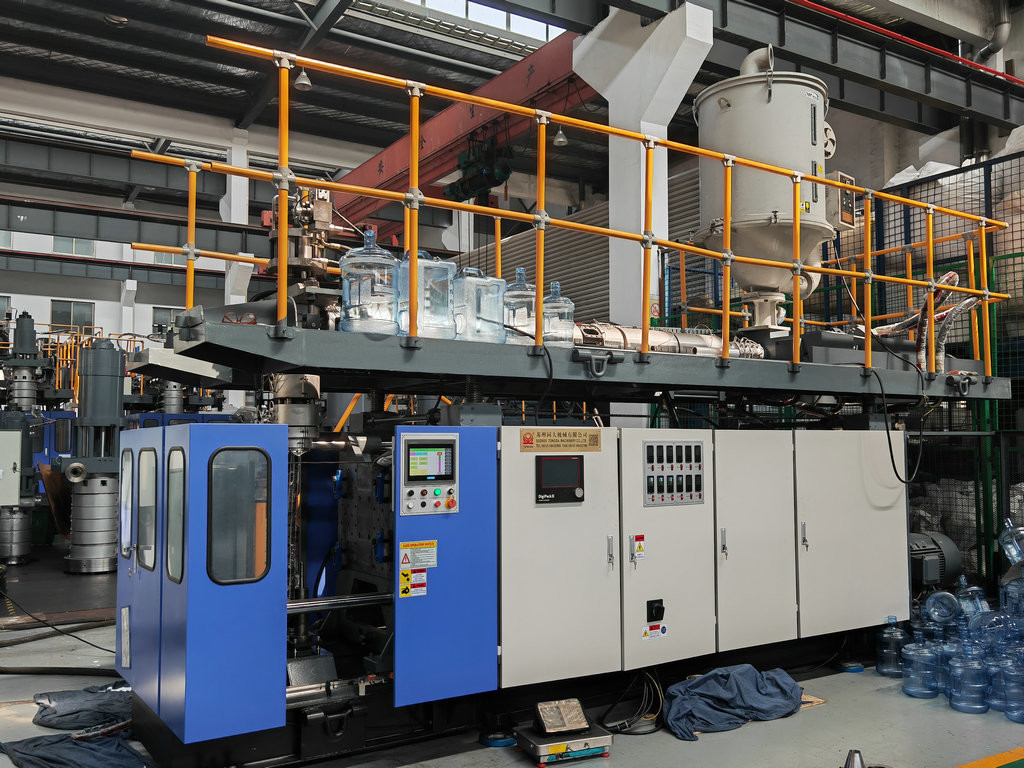

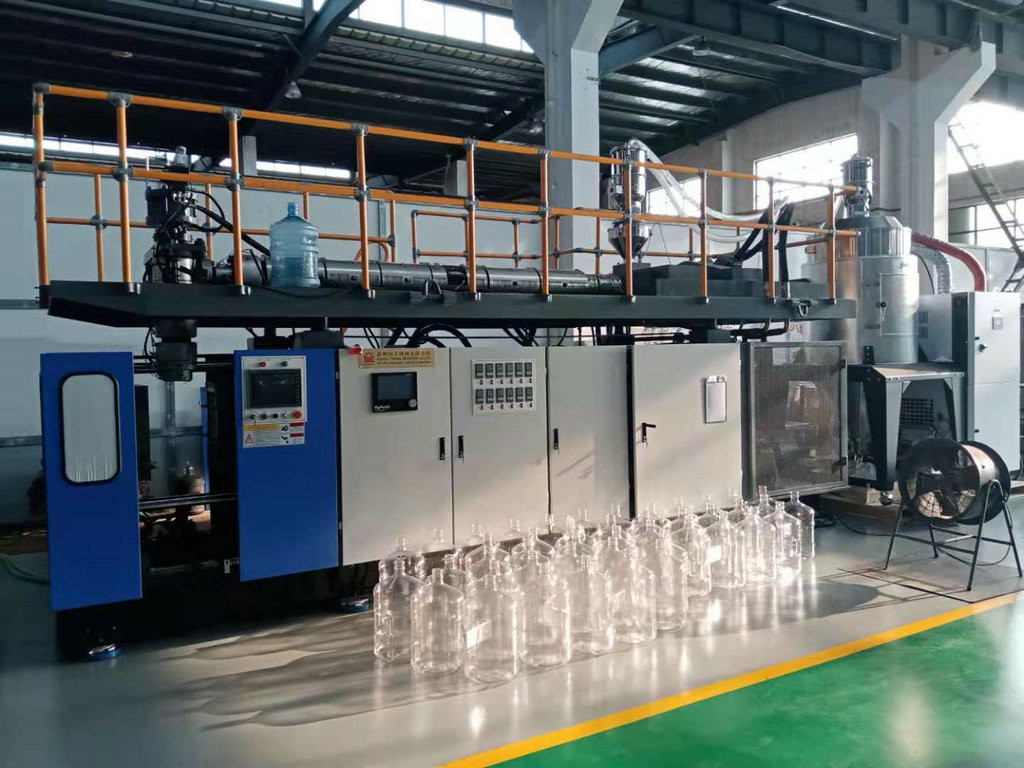

Water Bottle PC Extrusion Blow Molding Machine 5 Gallon Rectangular Shape

Water Bottle PC Extrusion Blow Molding Machine 5 Gallon Rectangular Shape

  • High Light

    Bottle PC Extrusion Blow Molding Machine

    ,

    25L PC Extrusion Blow Molding Machine

    ,

    Rectangular Shape PC Blow Molding Machine

  • Max. Product Volume
    25L
  • Die Head
    Single Head Continuous Type
  • Clamping Force
    215KN
  • Screw Diameter
    82
  • Screw Length/diameter Ratio
    38
  • Warranty
    1 Year
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    TDB-25APC
  • Minimum Order Quantity
    1SET
  • Price
    $60,000.00 - $70,000.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc. for our extrusion blow molding machine and auxiliary equipments
  • Delivery Time
    50-60 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year extrusion blow molding machine

Water Bottle PC Extrusion Blow Molding Machine 5 Gallon Rectangular Shape

5 Gallon Rectangular Shape PC Water Bottle Making Extrusion Blow Molding Machine



Product Description of our TDB-25APC PC Bottle Extrusion Blow Molding Machine

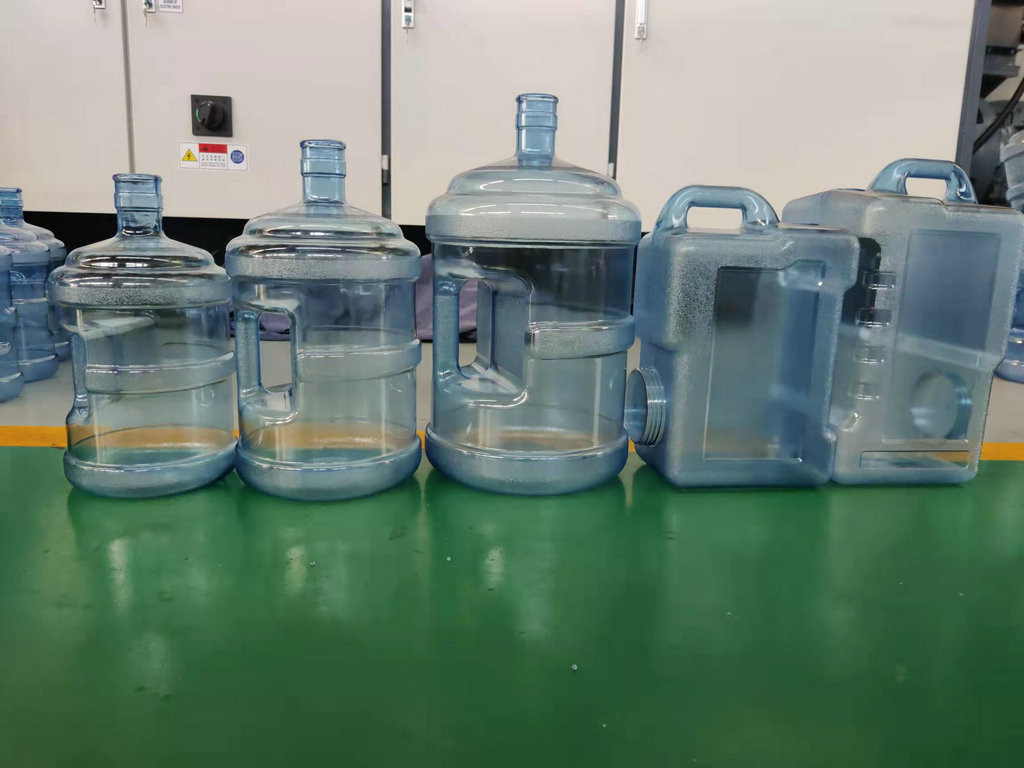

The PC gallon water bottle is more food safety, because this material is with high temperature resistance. And the PC water bottles are one step formed, directly from raw PC resin to formed PC water bottle. Besides this, if you want to produce bottles with handle, the handle is also one-step formed.

Our TDB-25APC model PC bottle extrusion blow molding machine, is specially designed for producing the PC water bottles, size from 1 gallon to 5 gallon. Suitable for producing handle bottles and normal round bottles, rectangular bottles, etc.

Because the PC material's special feature, our machine's plasticizing system is very special, is accumulator type 3 section screw, and continuous type die head to control the material better.

The machine is very stable and have helped many customers earn profit for years.





Technical Parameters of our TDB-25APC PC Bottle Extrusion Blow Molding Machine



MODEL
Units
TDB-25APC
Remarks: we will customize the most suitable extrusion blow molding machine for you according to your requirements
Max. Product volume
L
25
Output of HDPE
kg/h
160
Clamping force
kn
215
Accumulator head Capacity
mm
1.9L
Platen Distance
mm 450-1200
Screw Motor Power
KW
37


Product Details of our TDB-25APC PC Bottle Extrusion Blow Molding Machine

Water Bottle PC Extrusion Blow Molding Machine 5 Gallon Rectangular Shape 0

Water Bottle PC Extrusion Blow Molding Machine 5 Gallon Rectangular Shape 1

Because of the speciality of PC material, we specially designed this type of blow pin head to produce the PC water bottle with much better bottom surface.





Company Information



Water Bottle PC Extrusion Blow Molding Machine 5 Gallon Rectangular Shape 2Water Bottle PC Extrusion Blow Molding Machine 5 Gallon Rectangular Shape 3

In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been focusing on the research, development and product application of extrusion blow molding machines. The factory covers an area of more than 80 acres of land and has more than 350 employees.

Warmly welcome new and old customers to visit, to guide.



Service Network

Water Bottle PC Extrusion Blow Molding Machine 5 Gallon Rectangular Shape 4

Water Bottle PC Extrusion Blow Molding Machine 5 Gallon Rectangular Shape 5

Over 7000sets Tongda machines are serving customers all over the world

Having service office in Russia, Egypt, Jordan, Thailand, Chile, Indonesia and Algeria

We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.



Advantages of TONGDA tech teams

  • 800 sets of customized machines per year enable us to have rich experience across multiple industries.
  • Customize equipment according to customer product characteristics.
  • Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
  • Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
  • Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.
