HDPE Daily Chemical Blow Molding Machine EBM Laundry Detergent Bottles 5L 12L

HDPE Daily Chemical Blow Molding Machine EBM Laundry Detergent Bottles 5L 12L

  • High Light

    HDPE Daily Chemical Blow Molding Machine

    ,

    12L Chemical Blow Molding Machine

    ,

    130 kg/h Chemical Blow Molding Machine

  • Dimension(L*W*H)
    4.3m*2.9m*3.1m
  • Clamping Force (kN)
    158
  • Screw Diameter (mm)
    90 Mm
  • Output (kg/h)
    130 Kg/h
  • Die Head Heating Power(kW)
    9.1 KW
  • Weight (T)
    11
  • Showroom Location
    Egypt, Indonesia, Pakistan, Thailand, Chile, Algeria
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    HTSll12L
  • Minimum Order Quantity
    1SET
  • Price
    $64,999.00 - $89,999.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

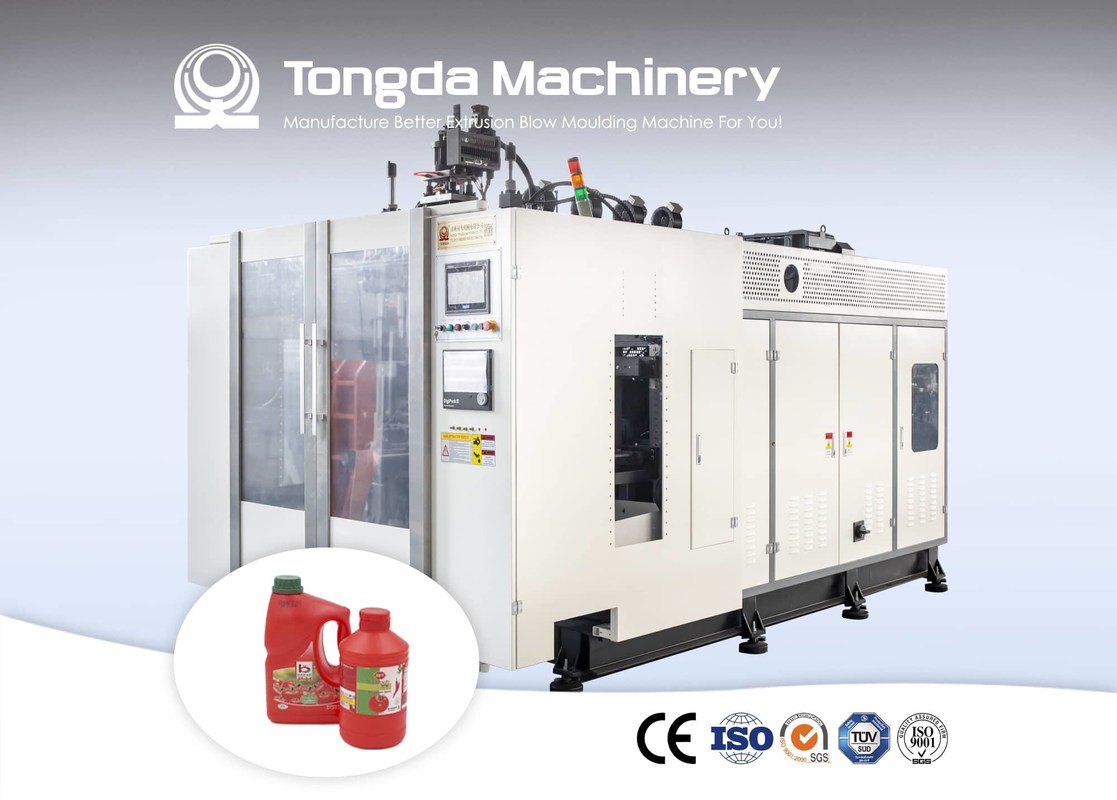

HDPE Daily Chemical Blow Molding Machine EBM Laundry Detergent Bottles 5L 12L

Laundry detergent bottles 5L 12L HDPE Daily Chemical Blow Molding Machine EBM


Product Description of HTSII-12L

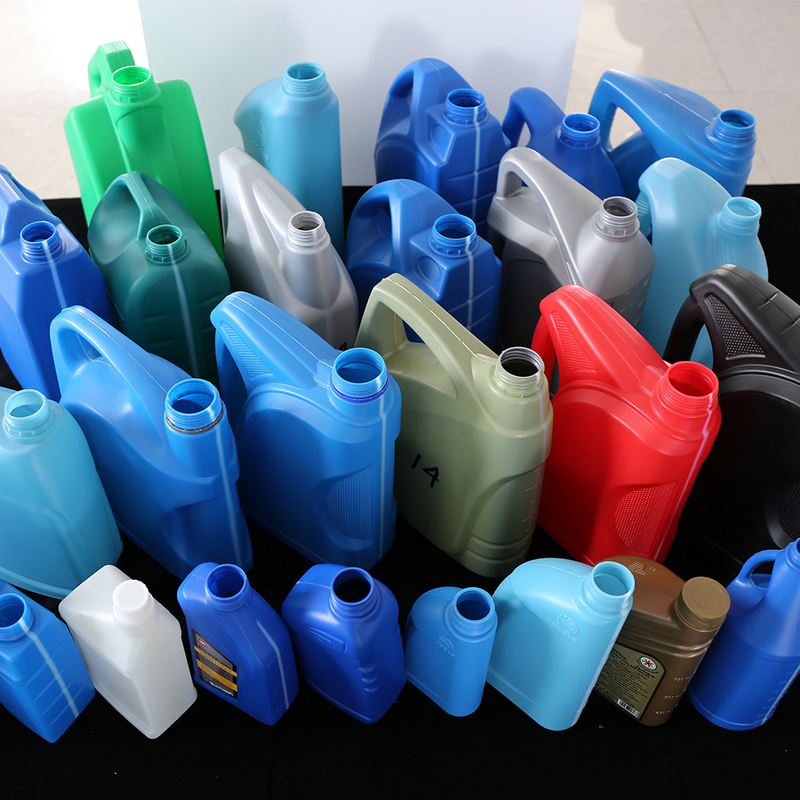

This is our normal series machine.It is double station.This machine is suitable for the stacking product,jerry can.It can be equipped with several die-heads and then it is also suitable for small product.The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.



Technical Parameters of HTSII-12L



MODEL
Units
HTSll-12L
Click for the latest discount details




Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume
L
12

Output of HDPE
kg/h
130

Clamping force
kn
158

Screw diametre
mm
90

Screw heating power
kw
15.6

Blow pressure
mpa
0.6

Size of machine
m
4.3*2.9*3.1



Product Details

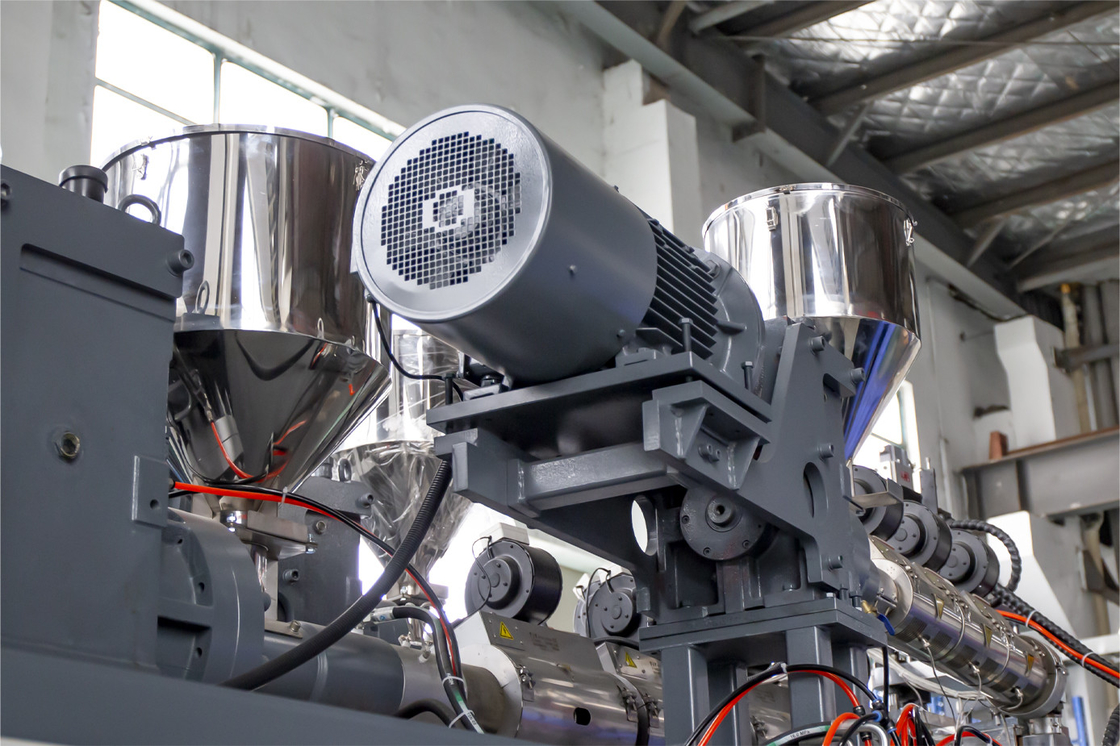

Plasticizing system can be designed for multi-layers, 1-4 layers are definitely available, and have high degree customization space.

HDPE Daily Chemical Blow Molding Machine EBM Laundry Detergent Bottles 5L 12L 0



Large touch screen, equipped with Japanese moog 100 poinst Parison control, simpler operation and more perfect products

HDPE Daily Chemical Blow Molding Machine EBM Laundry Detergent Bottles 5L 12L 1





Company Information



Suzhou Tongda Machinery have more than 20,000m2 factory buildings and other facilicities and a new intelligent manufacturing factory with 55,000m2 area. The I phase 20,000m2 area factory will be put into use in June, 2022. And on May 19th, 2022, we just held the II phase intelligent manufacturing base groundbreaking ceremony.

HDPE Daily Chemical Blow Molding Machine EBM Laundry Detergent Bottles 5L 12L 2HDPE Daily Chemical Blow Molding Machine EBM Laundry Detergent Bottles 5L 12L 3



FAQ

TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function


Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.


Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
