EBM Extrusion Jerry Can Blow Molding Machine 4L Non Transparent HDPE Lubricant Oil Bottle

EBM Extrusion Jerry Can Blow Molding Machine 4L Non Transparent HDPE Lubricant Oil Bottle

  • High Light

    EBM Jerry Can Blow Molding Machine

    ,

    4L Extrusion Jerry Can Blow Machine

    ,

    180KG/Hour Jerry Can Blow Machine

  • Max. Product Volume
    12
  • Output Of HDPE
    180KG/Hour
  • Clamping Force
    158KN
  • Screw Diametre
    100
  • Blow Moulding Type
    Extrusion Blow Moulding
  • Application
    Bottle,Jerry Can
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    HSII 12L
  • Minimum Order Quantity
    1SET
  • Price
    $60,000.00 - $70,000.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    50-60 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year extrusion blow molding machine

EBM Extrusion Jerry Can Blow Molding Machine 4L Non Transparent HDPE Lubricant Oil Bottle

4L Non Transparent HDPE Lubricant Oil Bottle Making Lube Oil Jerry Can EBM Extrusion Blow Molding Machine

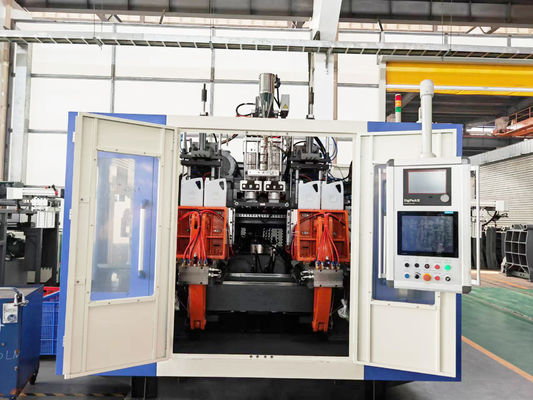

Product Description of our HSII-12L Extrusion Blow Molding Machine



HSII-12L model machine is our high level series extrusion blow molding machine. It is double station, with servo motor for hydraulic system to save energy. Now equipped with double die head, producing the 4L lube oil jerry can, with double die head, can produce max 5L HDPE jerry cans, if equipped with single die head, is suitable to produce max 12L HDPE jerry cans. To meet customers' different requirement, also can be equipped with triple die head, four die head, six die head, and can also equip multi layers, liquid level line screw,

If equipped with robot arms or 3Dimensional robot arms, conveyors, leak tester, IML in mold labeling machine, the automation will be upgraded.





Technical Parameters our HSII-12L Extrusion Blow Molding Machine



MODEL
Units
HSll-12L
Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume
L
12
Output of HDPE
kg/h
180
Clamping force
kn
158
Screw diametre
mm
100
Screw heating power
kw
21
Blow pressure
mpa
0.6
Size of machine
m

4.9*3.1*3.2



Product Details our HSII-12L Extrusion Blow Molding Machine

EBM Extrusion Jerry Can Blow Molding Machine 4L Non Transparent HDPE Lubricant Oil Bottle 0

Servo Valve:

High Speed, high precision, energy-efficient, advanced servo system

EBM Extrusion Jerry Can Blow Molding Machine 4L Non Transparent HDPE Lubricant Oil Bottle 1

Flex Arm Clamping:Enhanced template structure

Needle blow system:Adjustable angle, suiable for oblique bottles



Company Information



EBM Extrusion Jerry Can Blow Molding Machine 4L Non Transparent HDPE Lubricant Oil Bottle 2EBM Extrusion Jerry Can Blow Molding Machine 4L Non Transparent HDPE Lubricant Oil Bottle 3

Suzhou Tongda Machinery is a professional manufacturer of extrusion blow molding machine with over 23 years experience. And we have won the NO. 1 in China domestic extrusion blow molding field for continuously 10 years.

We have sold more than 7,000sets machines to customers from more than 120 countries and regions, annual output is 800sets/year now.

EBM Extrusion Jerry Can Blow Molding Machine 4L Non Transparent HDPE Lubricant Oil Bottle 4

In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been focusing on the research, development and product application of extrusion blow molding machines. The factory covers an area of more than 80 acres of land and has more than 350 employees.

Warmly welcome new and old customers to visit, to guide.

Service Network

EBM Extrusion Jerry Can Blow Molding Machine 4L Non Transparent HDPE Lubricant Oil Bottle 5

EBM Extrusion Jerry Can Blow Molding Machine 4L Non Transparent HDPE Lubricant Oil Bottle 6

Our Machinery has been keeping good cooperative relationship with customers since our establishing.

The satisfaction of our customers are the pursuit of every member of Tongda,The only way we service in the competitive market is to help our customers to full fill their requirement.



FAQ



TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function


Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.


Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
