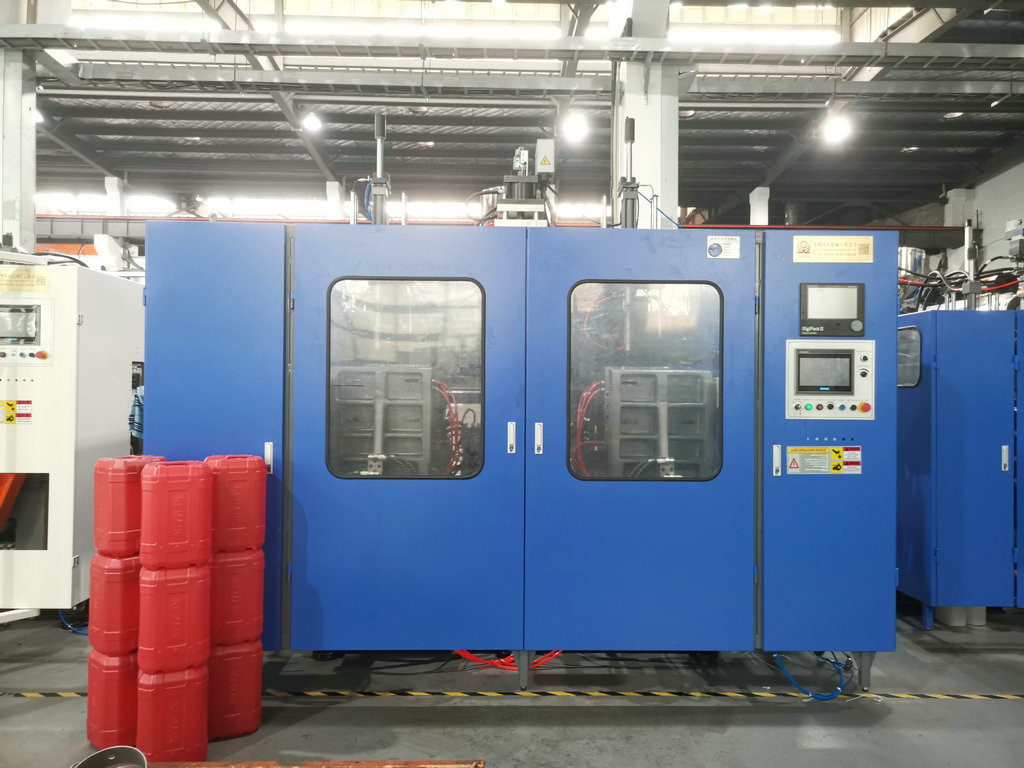

Big Mineral Water Bottle Blow Molding Machine 3 Phase Plastic 11 KW

Big Mineral Water Bottle Blow Molding Machine 3 Phase Plastic 11 KW

  • High Light

    Mineral Water Bottle Blow Molding Machine

    ,

    3Phase Bottle Blow Molding Machine

    ,

    Plastic 11kW Bottle Blow Molding Machine

  • Hollow Part Volume
    2L
  • Clamping Force (kN)
    44
  • Output (kg/h)
    50 Kg/h
  • No. Of Screw Heating Zone
    3
  • Extruder Motor Power(kW)
    11 KW
  • Air Pressure(MPa)
    0.6 MPa
  • Air Comsumption(m³/min)
    0.4 M³/min
  • Weight (T)
    3.3
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    TONGDA HTll2L
  • Minimum Order Quantity
    1SET
  • Price
    $39,999.00/Sets >=1 Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

Big Mineral Water Bottle Blow Molding Machine 3 Phase Plastic 11 KW

TTONGDA HTll2L Plastic mineral water bottle maker big bottle making machine



Product Description



This is our basic series machine.It is double station.This machine is suitable for the small bottles and toys.Most cost effective series machine for high production capacity choice.



Technical Parameters



MODEL Units HTII-2L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 2
Output of HDPE kg/h 60
Clamping force kn 44
Screw diametre mm 60
Screw heating power kw 11.2
Blow pressure mpa 0.6
Size of machine m 3.2*2.12*2.55



Product Details



Large touch screen, equipped with Japanese moog 100 poinst Parison control, simpler operation and more perfect products

Big Mineral Water Bottle Blow Molding Machine 3 Phase Plastic 11 KW 0



Most cost effective series machine for high production capacity choice.

Big Mineral Water Bottle Blow Molding Machine 3 Phase Plastic 11 KW 1





Company Information



Our Machinery has been keeping good cooperative relationship with customers since our establishing.

The satisfaction of our customers are the pursuit of every member of Tongda,The only way we service in the competitive market is to help our customers to full fill their requirement.

Big Mineral Water Bottle Blow Molding Machine 3 Phase Plastic 11 KW 2Big Mineral Water Bottle Blow Molding Machine 3 Phase Plastic 11 KW 3





After-sales services



During epidemic period, our team have helped customers start up more than 250sets new Tongda machines by online service, to help customer run the machine as soon, our after sales team helped around 3 hours till the mid-night.

Big Mineral Water Bottle Blow Molding Machine 3 Phase Plastic 11 KW 4



FAQ



Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.



Q: How big is your company?
A: our company has 400 employees and A building area of 100,000 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1999.


Q: How long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
