Disinfectant Daily Chemical Bottle Blow Molding Machine 5L Automatic Double Station

Disinfectant Daily Chemical Bottle Blow Molding Machine 5L Automatic Double Station

  • High Light

    Disinfectant Bottle Blow Molding Machine

    ,

    5L Chemical Bottle Blow Molding Machine

    ,

    HDPE Chemical Bottle Blow Molding Machine

  • Warranty Of Core Components
    1 Year
  • Plastic Processed
    PP, HDPE, PC, ABS, PVC, PE, EVA, PA, ABS/PP, PE/PP, HDPE/PP, PETG
  • Dimension(L*W*H)
    3.2m*2.12m*2.55m
  • Hollow Part Volume
    1-5L
  • Clamping Force (kN)
    110
  • PLC Brand
    MITSUBISHI
  • Screw L/D Ratio
    25
  • Screw Diameter (mm)
    80 Mm
  • Air Pressure(MPa)
    0.6 MPa
  • Station
    Double Station
  • Suitable Bottle
    1-5L
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    TONGDA HTSll5L
  • Minimum Order Quantity
    1SET
  • Price
    $39,999.00 - $54,999.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

Disinfectant Daily Chemical Bottle Blow Molding Machine 5L Automatic Double Station

Daily Chemical Disinfectant Bottle Automatic Blow Molding Machine



HTSII-5L Description



This is our normal series machine.It is double station. This machine is suitable for the jerry can.It can be equipped with several die-heads and then it is also suitable for small bottles. E.g:household cleaning bottles wash cleaner/ bath powder bottles/dry pack wipes disinfecting wet wipes canister



Technical Parameters of HTSII-5L



MODEL Units HTSII-5L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 5
Output of HDPE kg/h 110
Clamping force kn 110
Screw diametre mm 80
Screw heating power kw 19
Blow pressure mpa 0.6
Size of machine m 4.1*2.6*2.7



Product Details

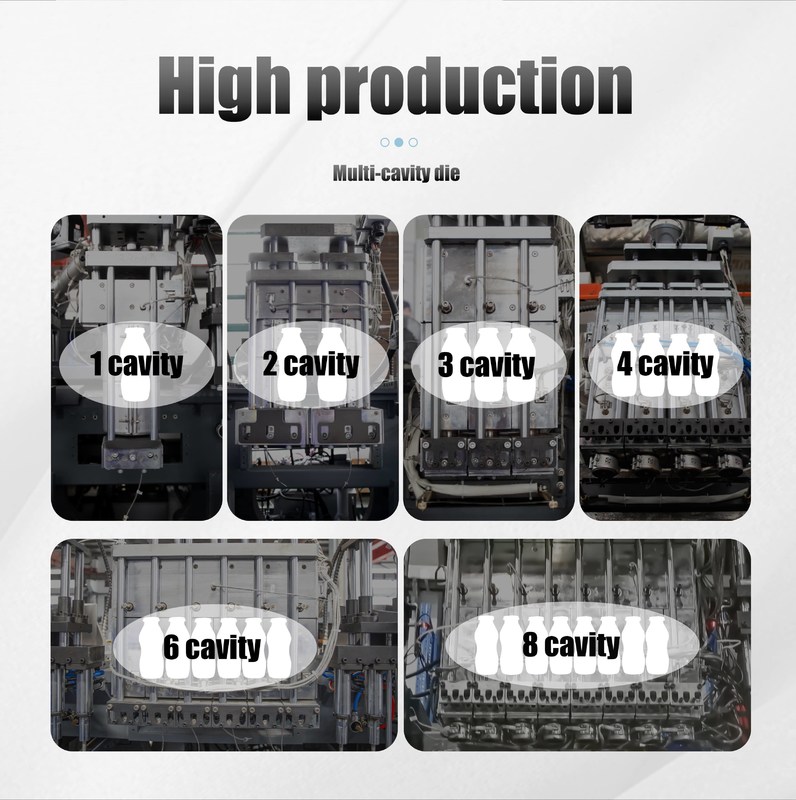

Multi-head die head confituration available for different output requirement, from 1 cavity to 8 cavity, we all can supply.

Disinfectant Daily Chemical Bottle Blow Molding Machine 5L Automatic Double Station 0

Plasticizing system can be designed for multi-layers, 1-4 layers are definitely available, and have high degree customization space.

Honeycomb ventilation holes to ensure better heat dissipation performance.

Disinfectant Daily Chemical Bottle Blow Molding Machine 5L Automatic Double Station 1





Company Information



Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. We have more than 23 years experience always specialized in R&D and manufacturing of extrusion blow molding machine.

Disinfectant Daily Chemical Bottle Blow Molding Machine 5L Automatic Double Station 2Disinfectant Daily Chemical Bottle Blow Molding Machine 5L Automatic Double Station 3





FAQ




TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function



How big is your company?
A: our company has 400 employees and A building area of 100,000 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1999.


Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
