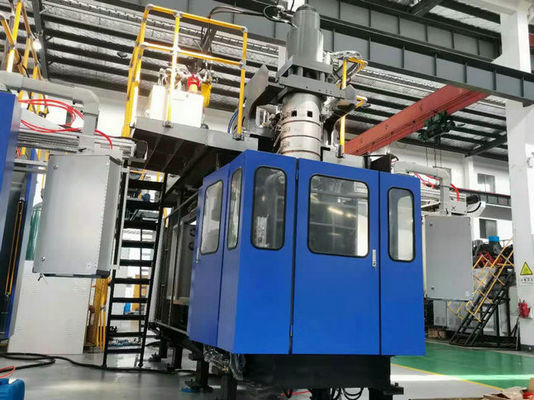

TONGDA TDB-50F Plastic Big Ice Brick Cooler Blowing Extrusion Blow Moulding 50L Plastic Container Blow Molding Machine
Product Description
Our TDB-50F model machine is one of our hot sale model extrusion blow molding machine. It is with wide applilcations, not only can produce plastic containers, such as 20L, 25L, 30Lstackable jerry can, 40L,50L open top chemical drums, also can produce diffent usage plastic hollow products, such as plastic big ice brick cooler, mannequin base, sports items, toys, furniture, industrial products, etc.
Equipped with servo motor not only for hydraulic system, also the extruder, so it will save 10-30% energy.
Our efficient plasticizing mixing screw, which ensures the plastic is fully and evenly plasticized, then improve product surface quality and effectively prevent screw temperature rise.
Technical Parameters
| MODEL | Units | TDB-50F | Remarks: we will customize the most suitable machinery according to your requirements |
| Max. Product volume | L | 50 | |
| Output of HDPE | kg/h | 130-160 | |
| Clamping force | kn | 260 | |
| Screw diametre | mm | 90 25:1 | |
| Screw heating power | kw | 17.4 | |
| Blow pressure | mpa | 0.6 | |
| Size of machine | m | 5×2.4×3.8 |
Product Details
Hydraulic system: proportional pressure control, equipped with famous brand hydraulic components, which are stable and reliable.
Material injection: Independent single (large) oil cylinder injection to ensure the concentricity of the injection material, and absolutely avoid the asynchronous phenomenon of double oil cylinders. Tongda's unique technology:10-stage pressure wall thickness control function, which reduces the difference in the upper and lower widths of the parison due to vertical stretching, so that improves the uniformity of product wall thickness.
Equipped with servo motor for oil pump, can save about 10 kWh of electricity per hour. The longer cycle of the product, the more significant energy saving effect is. And we use appropriate power, so that the motor works at a suitable speed to extend the service life of the motor and reduce the temperature of the hydraulic oil. If equip with small power, then the motor will keep running at a high speed, the motor will easy be damaged.
Excellent flow channel technology and precise machining accuracy, make the color change and material change more efficient. From dark to white, normally can be completed within 3hours. Much quicker than other suppliers. Save cost for you if you need to produce different color products.
Company Information
Suzhou Tongda Machinery Co., Ltd., established in year 1999, now is a leading manufacturer of hollow plastic hollow product extrusion blow molding machine.
In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been focusing on the research, development and product application of extrusion blow molding machines. The factory covers an area of more than 80 acres of land and has more than 350 employees.
Warmly welcome new and old customers to visit, to guide.
Service Marketing Network
FAQ
Q: How big is your company?
A: our company has 400 employees and A building area of 100,000 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1999.
Q: How long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
Q: How you manufacture the machines?
A: We have CNC Gantary machining center, and vertical machining center to processing the machine parts by ourselves to keep the precision.
Q: What brand parison controller you’re using?
A: We are using MOOG 200Points and Automata 300Points parison controller.
