TONGDA TDB-120F 120L Open Top Chemical Drum Multi Layer Extrusion Blow Moulding Plastic Container Blow Molding Machine
Product Description
Our TDB-120F model extrusion blow molding machine is with wide applications. Not only suitable for producing plastic big barrel, open top containers, such as 50L-120L open top single ring chemical drums, also are suitable for extrusion molding diffent usage plastic hollow products, such as medical bed board, hollow rescue stretcher, plastic female mannequin half body and full body, table sheet, desk board, etc.
Equipped with servo motor not only for hydraulic system, also the extruder, so it will save 10-30% energy.
Our efficient plasticizing mixing screw, which ensures the plastic is fully and evenly plasticized, then improve product surface quality and effectively prevent screw temperature rise.
Technical Parameters
| MODEL | Units | TDB-120F | Remarks: we will customize the most suitable machinery according to your requirements |
| Max. Product volume | L | 120 | |
| Output of HDPE | kg/h | 180 | |
| Clamping force | kn | 740 | |
| Screw diametre | mm | 100 25:1 | |
| Screw heating power | kw | 21 | |
| Blow pressure | mpa | 0.6 | |
| Size of machine | m | 5.8×2.9×4.3 |
Product Details

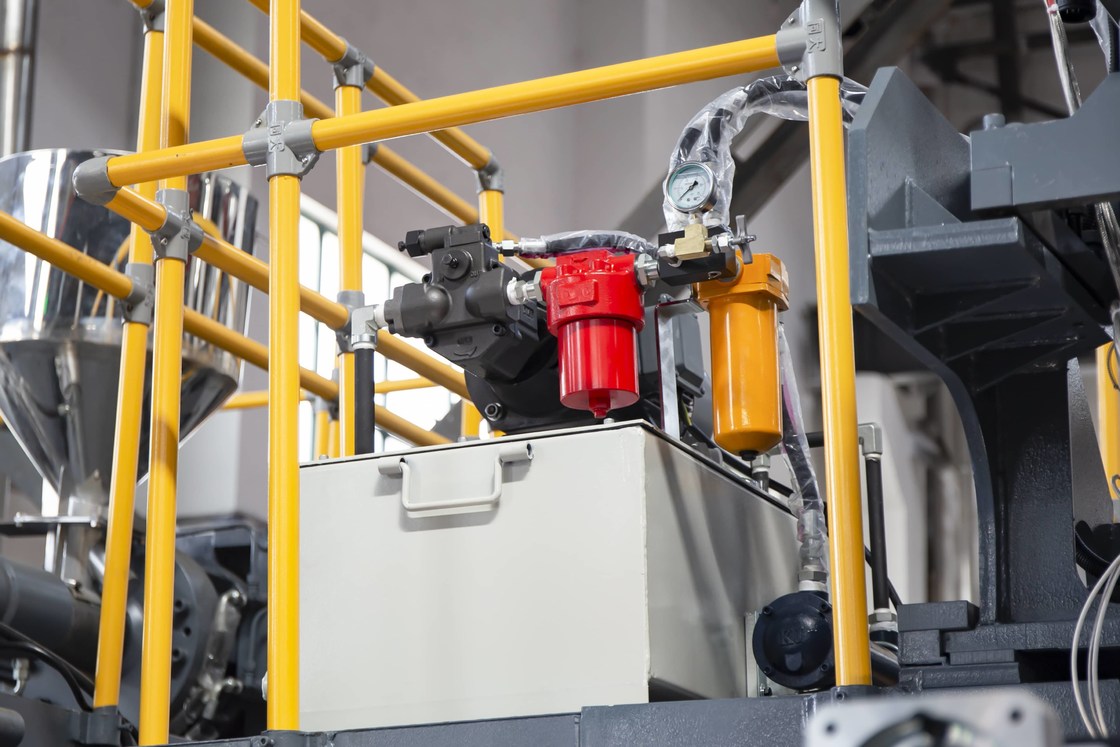

Hydraulic system: proportional pressure control, equipped with famous brand hydraulic components, which are stable and reliable.
Excellent flow channel technology and precise machining accuracy, make the color change and material change more efficient. From dark to white, normally can be completed within 3hours. Much quicker than other suppliers. Save cost for you if you need to produce different color products.
Company Information
Suzhou Tongda Machinery Co., Ltd., located in Zhangjiagang City, 2 hours away from Shanghai City by car.
The factory covers an area of more than 80 acres of land and has more than 350 employees.
From negotiation to determining the optimal production plan for customers, from equipment installation and commissioning, maintenance, system operation to production process, we provide you with reasonable suggestions and perfect solutions at each stage, as well as fast spare parts supply and convenience. technical service and support.
