Suzhou Tongda Machinery Co., Ltd. 86-512-56370105 info@tongdamachine.com
Furniture  Blow Molding Machine Plastic Chair Desk Extrusion Blow Molding Machine

Furniture Blow Molding Machine Plastic Chair Desk Extrusion Blow Molding Machine

  • High Light

    Plastic Drum Blow Molding Machine

    ,

    Extrusion Drum Blow Molding Machine

    ,

    Extrusion Plastic Container Making Machine

  • Station
    Single
  • Max. Product Volume
    50L
  • Output Of HDPE
    130-160 Kg/hour
  • Clamping Force
    260KN
  • Platen Distance
    450-1000mm
  • Air Consumption
    1.0 M3/min
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    TDB-50F
  • Minimum Order Quantity
    1SET
  • Price
    USD 70,000 per set
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

Furniture Blow Molding Machine Plastic Chair Desk Extrusion Blow Molding Machine

Furniture Blow Molding Machine Plastic Chair Desk Extrusion Blow Molding Machine



Product Description

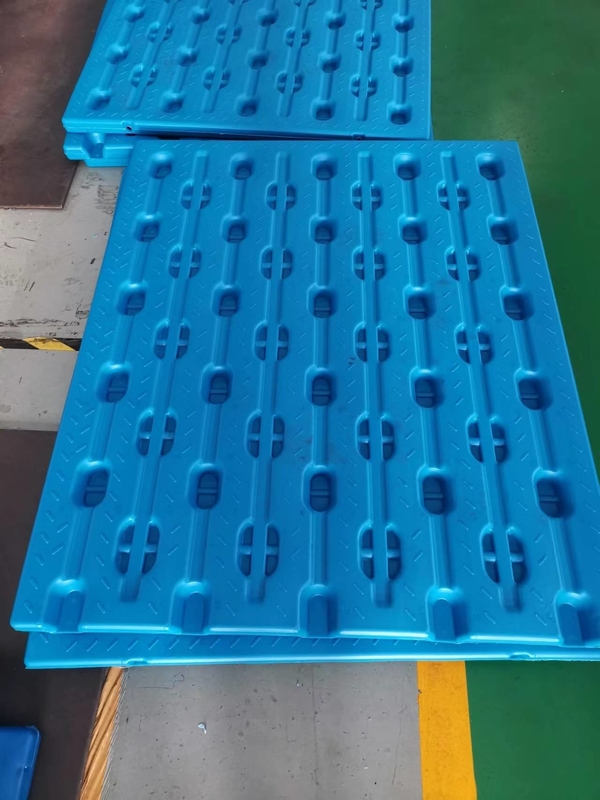

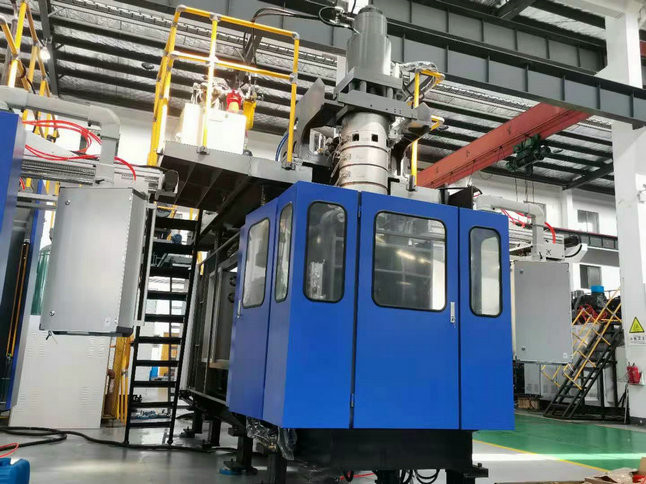

Our TDB-50F model machine is one of our hot sale model extrusion blow molding machine. It is with wide applilcations, not only can produce plastic containers, such as 20L, 25L, 30Lstackable jerry can, 40L,50L open top chemical drums, also can produce diffent shape plastic hollow products, such as plastic mannequin base, sports items, toys, furniture, industrial products, etc.

Equipped with servo motor not only for hydraulic system, also the extruder, so it will save 10-30% energy.



Technical Parameters




MODEL Units TDB-50F Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 50
Output of HDPE kg/h 130-160
Clamping force kn 260
Screw diametre mm 90 25:1
Screw heating power kw 17.4
Blow pressure mpa 0.6
Size of machine m 5×2.4×3.8






Product Details

Die head: Is designed by our own R&D department, manufactured and assembled by our assembling center, to ensure the confidentiality of the core technology and the manufacturing precision, and at the same time facilitate the later debugging and maintenance.

Bottom Blowing Unit, with high precission of component assembly, can also be equipped with down seal device

Upper parison sealing device, stable and reliable

Low energy consumption:If the screw speed of TDB-50F is around 70%, then the average power consumption is 35KW/h

Linear guide rails with high quality, so with high running accuracy and longer service life.



Company Information



In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been focusing on the research, development and product application of extrusion blow molding machines. The factory covers an area of more than 80 acres of land and has more than 350 employees.

Warmly welcome new and old customers to visit, to guide.







Service Marketing Network





TONGDA TDB-120F Plastic Adult Mannequinn Making Machine Big HDPE Hollow Product Extrusion Blow Molding Machine 9
1. We have office in Poland, Peru, Chile, Russia, Egypt, Jordan, Thailand,  Indonesia, Algeria, Ethiopia, Poland, etc
2. We have benchmark customers in America, Saudi Arabia, Jordan, Qatar, Thailand, Indonesia, etc.
3. Our company has exported over 4000 units machine to more than 120 countries and regions, such as USA, UK, Australia, Greece,Poland.Russia,Belarus,South America, South Africa,Indonesia, Egypt, Syria, Ethiopia.We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.





FAQ





Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.


Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.


Q: How big is your company?
A: our company has 400 employees and A building area of 100,000 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1999.
