HDPE Chemical Drum Blow Molding Machine 50L Plastic Container Blowing Machine

HDPE Chemical Drum Blow Molding Machine 50L Plastic Container Blowing Machine

  • High Light

    50L Drum Blow Molding Machine

    ,

    Chemical Drum Blow Molding Machine

    ,

    HDPE Plastic Container Blowing Machine

  • Screw Diametre
    90mm
  • Screw Length/diameter Ratio
    25
  • Output Of HDPE
    130-160 Kg/hour
  • Clamping Force
    260KN
  • Platen Distance
    450-1000mm
  • Max.Size Of Mold
    700*950mm
  • Air Consumption
    1.0 M3/min
  • Water Consumption
    85 L/min
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    TDB-50F
  • Minimum Order Quantity
    1SET
  • Price
    USD 94,499~99,999 per set
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

HDPE Chemical Drum Blow Molding Machine 50L Plastic Container Blowing Machine

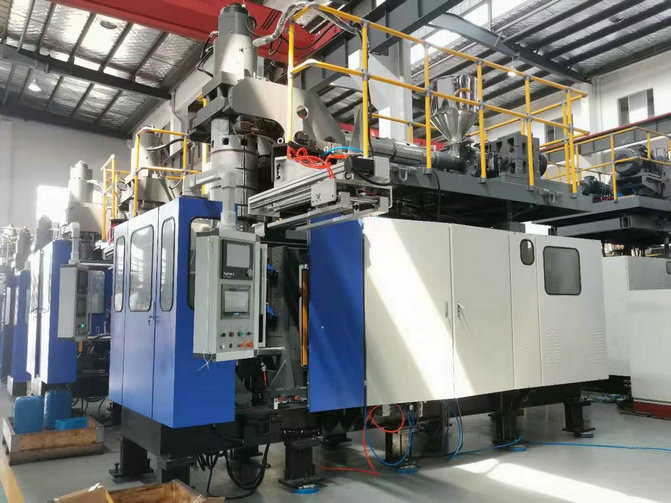

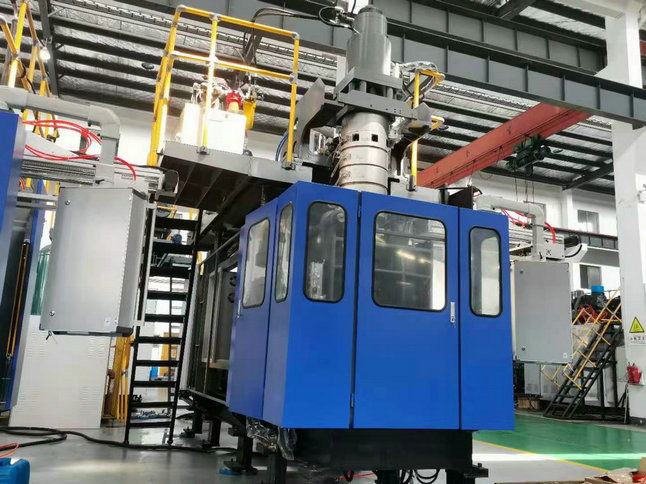

TONGDA TDB-50F HDPE 50L Open Top Container Extrusion Blow Molding Machine Plastic Chemical Drum Blow Molding Machine

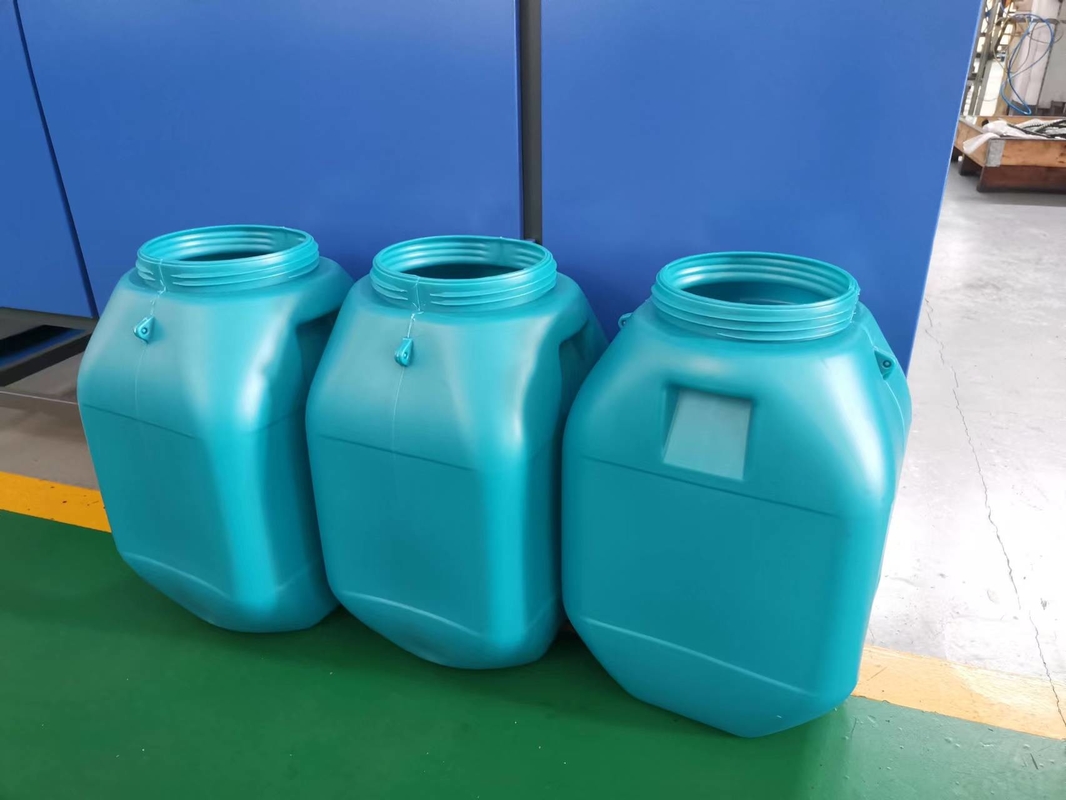

Our TDB-50F model machine is one of our hot sale model extrusion blow molding machine. It is with wide applilcations, not only can produce plastic containers, such as 20L, 25L, 30Lstackable jerry can, 40L,50L open top chemical drums, also can produce diffent shape plastic hollow products, such as plastic mannequin base, sports items, toys, furniture, industrial products, etc.

Equipped with servo motor not only for hydraulic system, also the extruder, so it will save 10-30% energy.

Our efficient plasticizing mixing screw, which ensures the plastic is fully and evenly plasticized, then improve product surface quality and effectively prevent screw temperature rise.





Technical Parameters


MODEL Units TDB-50F Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 50
Output of HDPE kg/h 130-160
Clamping force kn 260
Screw diametre mm 90 25:1
Screw heating power kw 17.4
Blow pressure mpa 0.6
Size of machine m 5×2.4×3.8




Product Description

HDPE Chemical Drum Blow Molding Machine 50L Plastic Container Blowing Machine 0

HDPE Chemical Drum Blow Molding Machine 50L Plastic Container Blowing Machine 1





Product Details



TONGDA TDB-120F Plastic Adult Mannequinn Making Machine Big HDPE Hollow Product Extrusion Blow Molding Machine 2

Electronic control system: Japanese Mitsubishi PLC, HMI operation screen(Chinese & English), All data settings, changes, search, monitoring, fault diagnosis and other functions can be achieved on the touch screen, touchless working principle, durable components.

HDPE Chemical Drum Blow Molding Machine 50L Plastic Container Blowing Machine 3

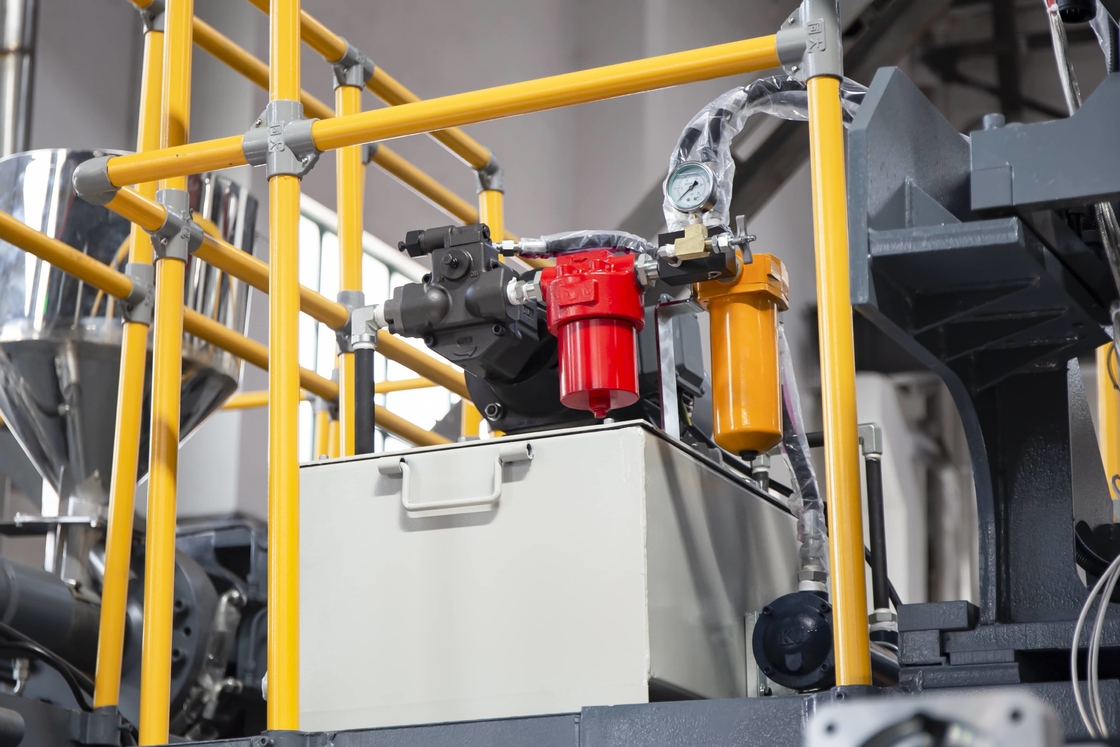

Hydraulic system: proportional pressure control, equipped with famous brand hydraulic components, which are stable and reliable.

HDPE Chemical Drum Blow Molding Machine 50L Plastic Container Blowing Machine 4

Equipped with servo motor for oil pump, can save about 10 kWh of electricity per hour. The longer cycle of the product, the more significant energy saving effect is. And we use appropriate power, so that the motor works at a suitable speed to extend the service life of the motor and reduce the temperature of the hydraulic oil. If equip with small power, then the motor will keep running at a high speed, the motor will easy be damaged.








Company Information



Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been focusing on the research, development and product application of extrusion blow molding machines. The factory covers an area of more than 80 acres of land and has more than 270 employees. The company has established Engineering Technology Research and Development Center, and Jiangsu Province excellent Graduate work Jiangsu Enterprise Research and Development Center, Jiangsu Province Extrusion blow Molding Technology Technology Center has more than 50 R & D personnel, including 1 national science and technology talent, Station. Jiangsu Province post-doctoral innovation practice base and other R & D platforms, at present, the that means constantly exploring the expansion of new areas. Warmly welcome new and old customers to visit, to guide, 4 senior masters,15 bachelors, hosting the development of two national standards and participating in the formulation of a national standard. "Working Together to Grow Together" is the spirit of TONGDA company, to cooperate with us and we are always at your service to provide you with strong support.

TONGDA TDB-120F Plastic Adult Mannequinn Making Machine Big HDPE Hollow Product Extrusion Blow Molding Machine 7





Service Marketing Network



TONGDA TDB-120F Plastic Adult Mannequinn Making Machine Big HDPE Hollow Product Extrusion Blow Molding Machine 9
1. We have office in Poland, Peru, Chile, Russia, Egypt, Jordan, Thailand,  Indonesia, Algeria, Ethiopia, Poland, etc
2. We have benchmark customers in America, Saudi Arabia, Jordan, Qatar, Thailand, Indonesia, etc.
3. Our company has exported over 4000 units machine to more than 120 countries and regions, such as USA, UK, Australia, Greece,Poland.Russia,Belarus,South America, South Africa,Indonesia, Egypt, Syria, Ethiopia.We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.

TONGDA TDB-120F Plastic Adult Mannequinn Making Machine Big HDPE Hollow Product Extrusion Blow Molding Machine 10
Our Machinery has been keeping good cooperative relationship with customers since our establishing.
The satisfaction of our customers are the pursuit of every member of Tongda,The only way we service in the competitive market is to help our customers to full fill their requirement.



FAQ

TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function




Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.




Q: How long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
