1 Litre Lube Oil Jerry Can Blow Molding Machine Automatic Extrusion

1 Litre Lube Oil Jerry Can Blow Molding Machine Automatic Extrusion

  • High Light

    1 Litre Jerry Can Blow Molding Machine

    ,

    Lube Oil Jerry Can Blow Molding Machine

    ,

    Extrusion 1 Litre Blow Moulding Machine

  • Station
    Double Station
  • Suitable Bottle
    1-2L
  • Screw Diameter (mm)
    60 Mm
  • Screw L/D Ratio
    25
  • Output
    60 Kg/h
  • Clamping Force
    44KN
  • Mold Moving Stroke
    370mm
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    HTSII-2L
  • Minimum Order Quantity
    1SET
  • Price
    $39,999.00 - $54,999.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

1 Litre Lube Oil Jerry Can Blow Molding Machine Automatic Extrusion

TONGDA HTSII2L Automatic Blowing Machine 1liter Lube Oil Jerry Can Container Extrusion Blow Molding Machine

Product Description

This HTS series machine is our most cost effective series machine. HTSII-2L machine is suitable for producing HDPE bottles size below 2 liters. If equipped with multi heads die-head, it also suitable for small HDPE/PP plastic bottles lube oil jerry cans blow molding.

Also can be equipped with view strip line on the die head, and multi layer configuration is also available.

The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.


Technical Parameters
MODEL
Units
HTSll-2L
Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume
L
2

Output of HDPE
kg/h
60

Clamping force
kn
44

Screw diametre
mm
60

Screw heating power
kw
9.7

Blow pressure
mpa
0.6

Size of machine
m
3.2*2.12*2.55

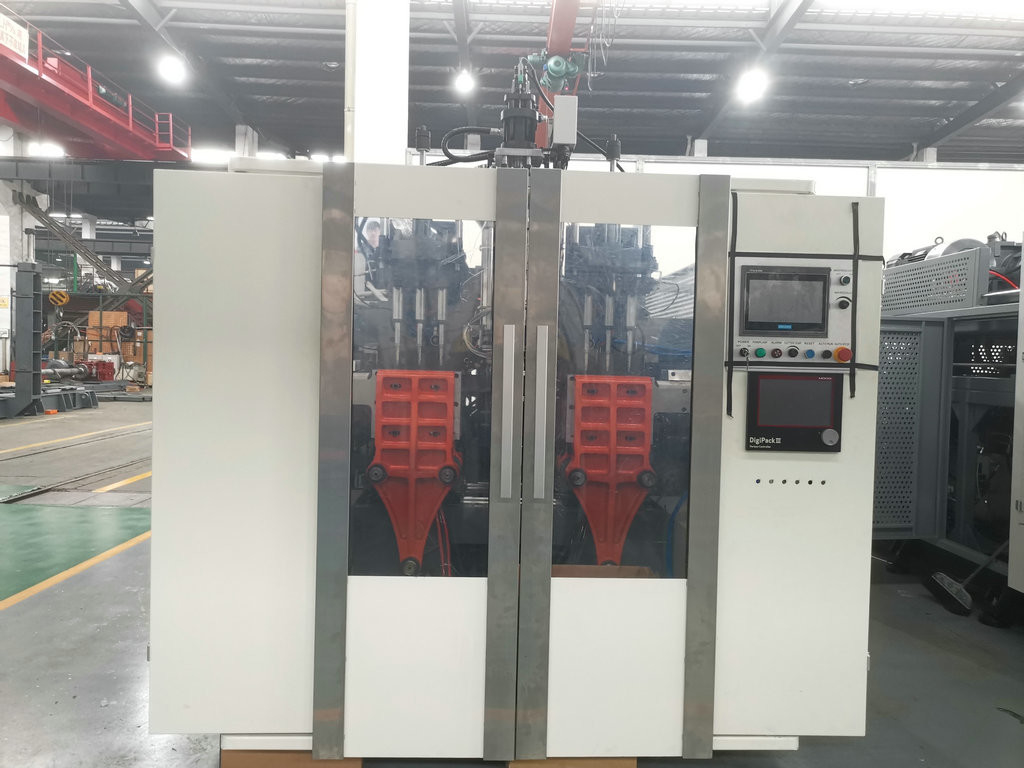

1 Litre Lube Oil Jerry Can Blow Molding Machine Automatic Extrusion 0

Product Details

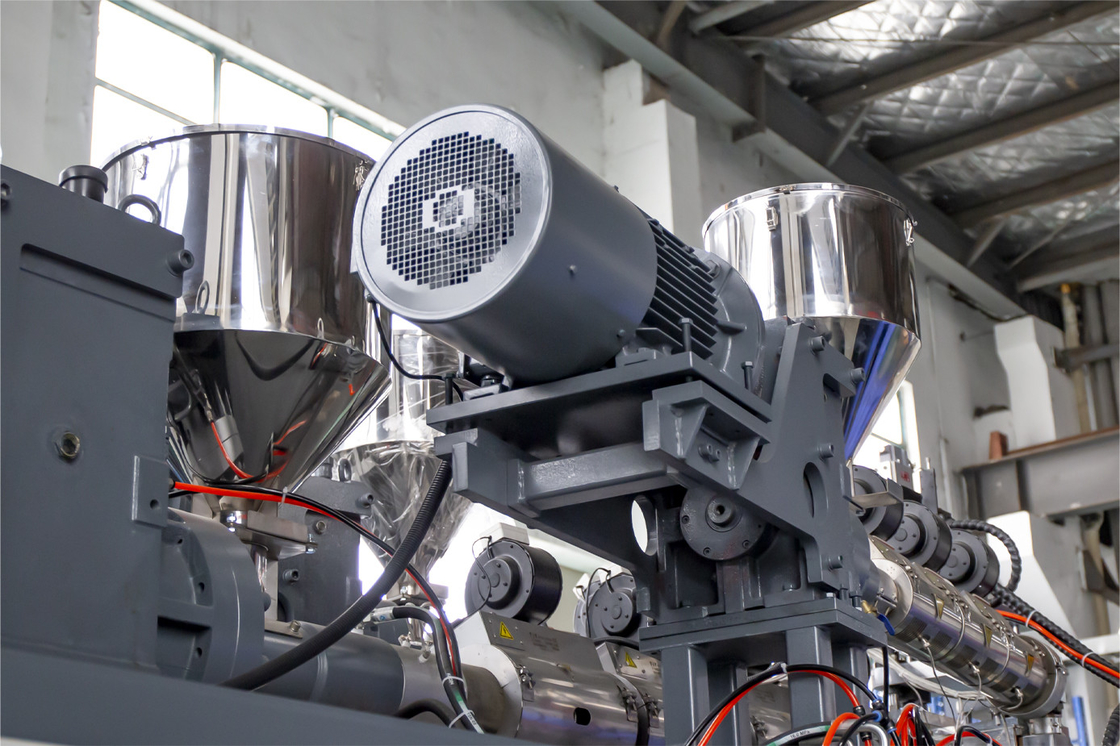

1 Litre Lube Oil Jerry Can Blow Molding Machine Automatic Extrusion 1

Multi-head die head confituration available for different output requirement, from 1 cavity to 8 cavity, we all can supply.

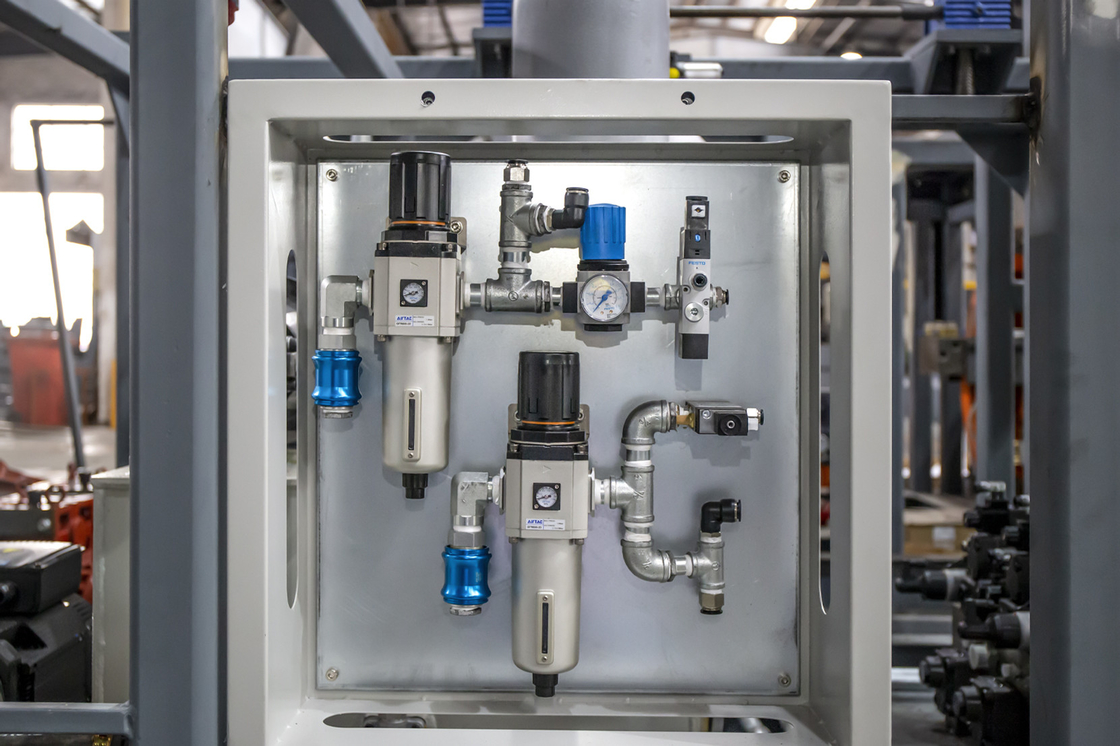

1 Litre Lube Oil Jerry Can Blow Molding Machine Automatic Extrusion 2

Hydraulic valve group, cost effective, fast reaction, the clamping force is strengthened for the molding locking

After-sales service

1 Litre Lube Oil Jerry Can Blow Molding Machine Automatic Extrusion 3
Arrange engineer to customer's factory

Why Choose Us

1 Litre Lube Oil Jerry Can Blow Molding Machine Automatic Extrusion 4

FAQ

TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function

Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.

Q: how long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
