PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW

PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW

Products - PC Blow Molding Machine
  • High Light

    Single Station Water Bottle Blow Molding Machine

    ,

    PC Water Bottle Blow Molding Machine

    ,

    Single Station 5 Gallon Bottle Blow Molding Machine

  • Condition
    New
  • Core Components
    PLC, Engine, Bearing, Gearbox, Pressure Vessel, Gear, Pump
  • Application
    Bottle
  • Plastic Processed
    PP, HDPE, PC, PVC, PE, ABS/PP, PE/PP, HDPE/PP, Tritan
  • Voltage
    Customized To Customer Needs
  • Dimension(L*W*H)
    6.3*2.2*3.8
  • Hollow Part Volume
    1-25L
  • Clamping Force (kN)
    215 KN
  • PLC Brand
    MITSUBISHI
  • Screw L/D Ratio
    38
  • Screw Diameter (mm)
    82 Mm
  • Output (kg/h)
    160 Kg/h
  • Automation
    Automatic
  • Screw Heating Power(kW)
    40 KW
  • Extruder Motor Power(kW)
    30 KW
  • Mold Platen Size(Width)(mm)
    550 Mm
  • Mold Platen Size(Height)(mm)
    650 Mm
  • Die Head Heating Power(kW)
    40 KW
  • Accumulator Capacity(L)
    1.9 L
  • Power (kW)
    106
  • Weight (T)
    12
  • Key Selling Points
    Long Service Life
  • Applicable Industries
    Energy & Mining, Hotels, Home Use, Machinery Repair Shops, Restaurant, Food & Beverage Factory, Farms
  • Showroom Location
    Egypt, Indonesia, Pakistan, Thailand, Chile, Algeria
  • Rotary Cylinder Brand
    FESTO
  • Station
    Single
  • Key Words
    Automatic Extrusion Blow Moulding Machine
  • Packing
    Wooden
  • Use
    Hollow Moulding
  • Max. Size Of Mold
    550*650
  • Hydraulic Valve
    Yuken
  • Water Consumption
    150
  • High Pressure Valve Brand
    YUKEN
  • After-sales Service Provided
    Field Maintenance And Repair Service, Field Installation, Commissioning And Training, Free Spare Parts, Video Technical Support, Online Support
  • After Warranty Service
    Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
  • Local Service Location
    Egypt, Indonesia, Pakistan, Thailand, Argentina, Chile
  • Port
    SHANGHAI
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    TONGDA TDB25APC
  • Minimum Order Quantity
    1SET
  • Price
    $89,999.00 - $99,999.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW

  • PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW
  • PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW
  • PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW
  • PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW
  • PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW
  • PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW
Get Price Contact Now
TONGDA TDB25APC Fully automatic pc 5 gallon water bottle blow molding machine



Product Description

This TDB-25APC extrusion blow molding machine is suitable for 25L product and it is bottom blow. The die-head is accumulator. It equipped with servo motor.

Technical Parameters


MODEL
Units
TDB-25APC
Remarks: If you have other special requirements,we can provide customized services for you.
Max. Product volume
L
25

Output of HDPE
kg/h
16

Clamping force
kn
215

Screw diametre
mm
82

Screw heating power
kw
40

Blow pressure
mpa
0.6

Size of machine
m
6.3-*2.2*3.8



PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW 0



Product Details

PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW 1

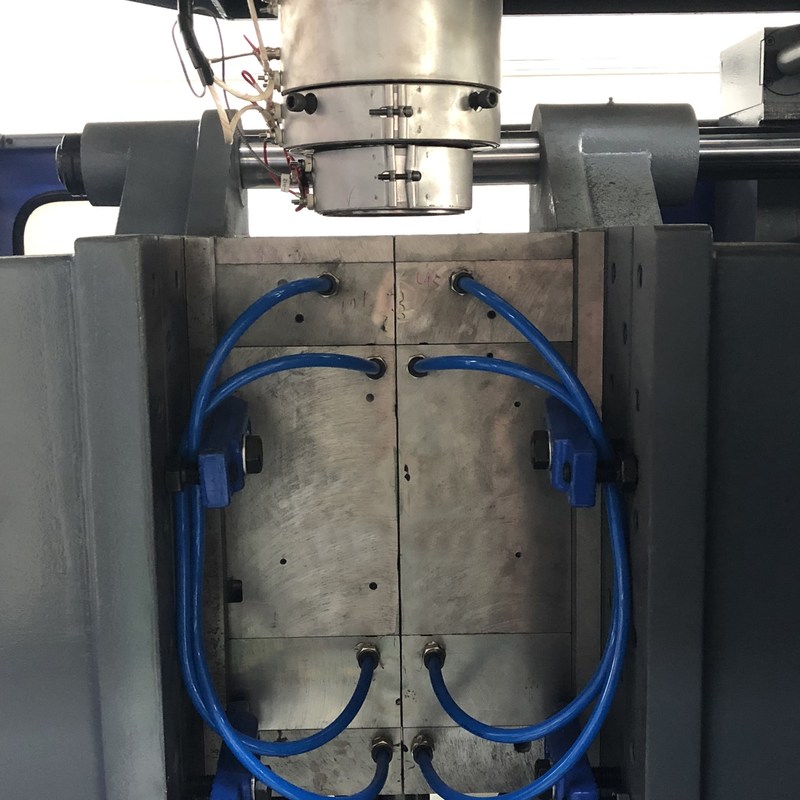

Clamping structure, we use 3 plate type design, with more stable clamping function

Separate oil source, for parison controller, to ensure better and more stable reaction speed.



PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW 2

Mold temperature controller, can monitor the temperature more precisely

Servo pump, with significant energy saving effect



Company Information

Suzhou Tongda Machinery have more than 20,000m2 factory buildings and other facilicities and a new intelligent manufacturing factory with 55,000m2 area. The I phase 20,000m2 area factory will be put into use in June, 2022. And on May 19th, 2022, we just held the II phase intelligent manufacturing base groundbreaking ceremony.

PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW 3PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW 4




FAQ


Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.


Q: How big is your company?
A: our company has 400 employees and A building area of 100,000 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1999.


Q: How long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
