Pesticide Chemical Bottle Making Machine Extrusion Blow Moulding Machines

Pesticide Chemical Bottle Making Machine Extrusion Blow Moulding Machines

  • High Light

    Pesticide Chemical Bottle Making Machine

    ,

    Extrusion Chemical Bottle Making Machine

    ,

    Extrusion Blow Moulding Machines

  • Condition
    New
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2020
  • Warranty Of Core Components
    1 Year
  • Core Components
    PLC, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
  • Plastic Processed
    PP, HDPE, PC, ABS, PVC, PE, EVA, PA, ABS/PP, PE/PP, HDPE/PP, PETG
  • Year
    2019
  • Voltage
    Customized To Customer Needs
  • Dimension(L*W*H)
    4.9m*3.1m*3.2m
  • Hollow Part Volume
    1-5L
  • Clamping Force (kN)
    110
  • PLC Brand
    MITSUBISHI
  • Screw L/D Ratio
    25
  • Screw Diameter (mm)
    80 Mm
  • Output (kg/h)
    110 Kg/h
  • Automation
    Automatic
  • No. Of Screw Heating Zone
    5
  • Screw Heating Power(kW)
    19 KW
  • Extruder Motor Power(kW)
    30 KW
  • Mold Platen Size(Width)(mm)
    480 Mm
  • Mold Platen Size(Height)(mm)
    450 Mm
  • Air Pressure(MPa)
    0.6 MPa
  • Air Comsumption(m³/min)
    0.8 M³/min
  • Die Head Heating Power(kW)
    10.7 KW
  • Accumulator Capacity(L)
    0 L
  • Power (kW)
    80
  • Weight (T)
    9
  • Key Selling Points
    Long Service Life
  • Warranty
    1 Year
  • Applicable Industries
    Energy & Mining, Hotels, Home Use, Machinery Repair Shops, Restaurant, Food & Beverage Factory, Farms
  • Showroom Location
    Egypt, Indonesia, Pakistan, Thailand, Chile, Algeria
  • Rotary Cylinder Brand
    FESTO
  • Station
    Double Station
  • Suitable Bottle
    1-5L
  • Key Words
    Automatic Extrusion Blow Moulding Machine
  • Packing
    Wooden
  • Use
    Hollow Moulding
  • Parison Control
    MOOG
  • Max. Size Of Mold
    480*450
  • Hydraulic Valve
    Yuken
  • Color
    Blue
  • Port
    Shanghai
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    TONGDA HSll5L
  • Minimum Order Quantity
    1SET
  • Price
    $69,999.00 - $84,999.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

Pesticide Chemical Bottle Making Machine Extrusion Blow Moulding Machines

TONGDA HSll15L Fully Automatic Plastic 10l Blow Molding Machine

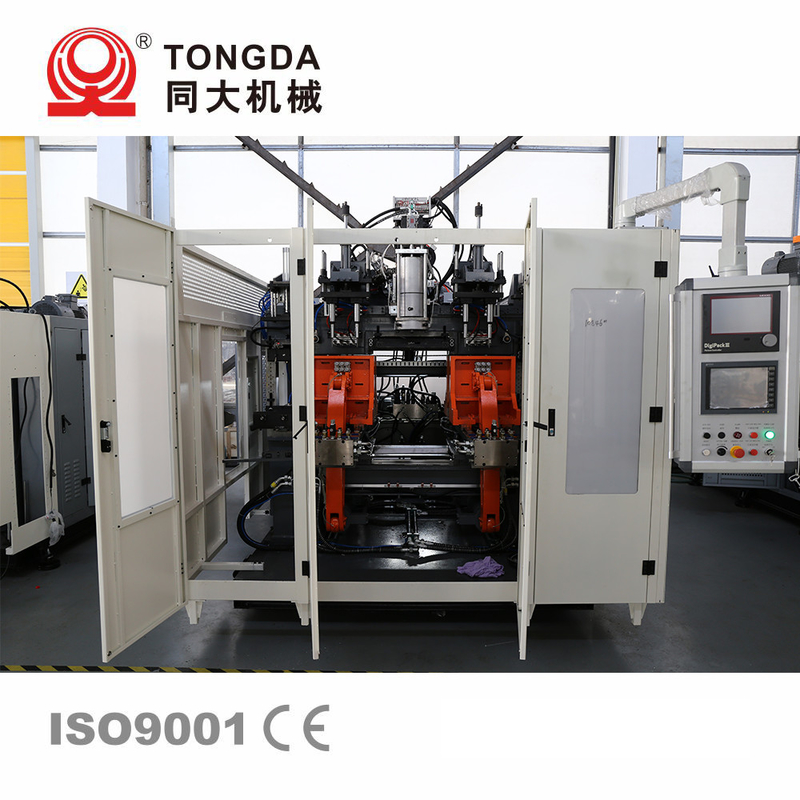

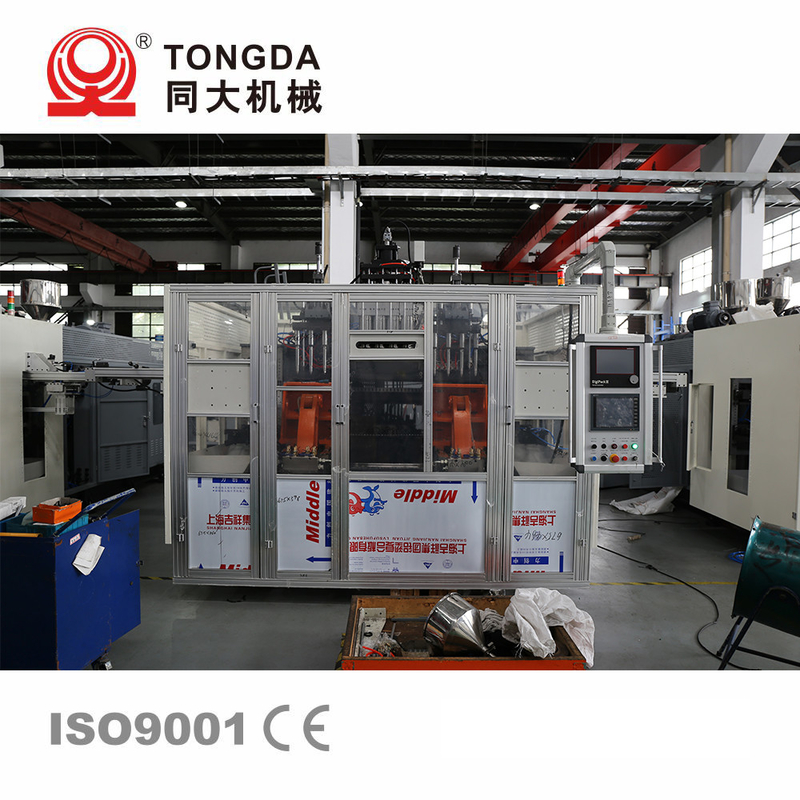

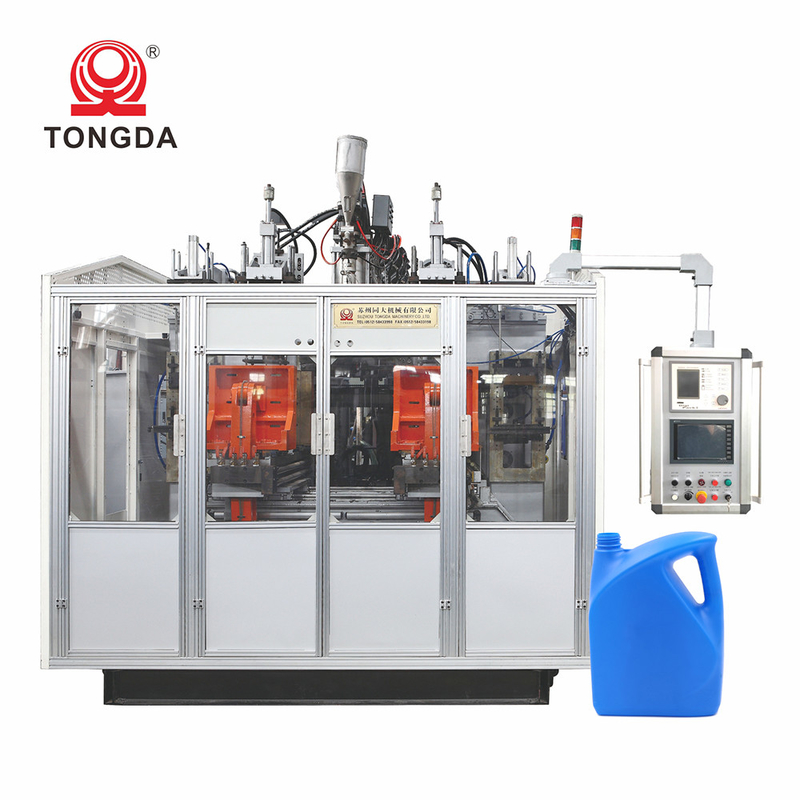

Product Description



This is our best series machine.This is hydraulic servo system.The clamping unit is elbow style and the clamping force is more uniform.It is high speed and energy-saving. This machine is suitable for 5 Litre container/ spray bottle / wide mouth jar, etc.It can be also equipped with several die-heads and then to make the small product.



Technical Parameters



MODEL Units HSII-5L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 5
Output of HDPE kg/h 110
Clamping force kn 110
Screw diametre mm 80
Screw heating power kw 19
Blow pressure mpa 0.6
Size of machine m 4.5*2.7*3.1



Product Details



15 Inches

Color Control Screen

More Convenient Operation

Pesticide Chemical Bottle Making Machine Extrusion Blow Moulding Machines 0

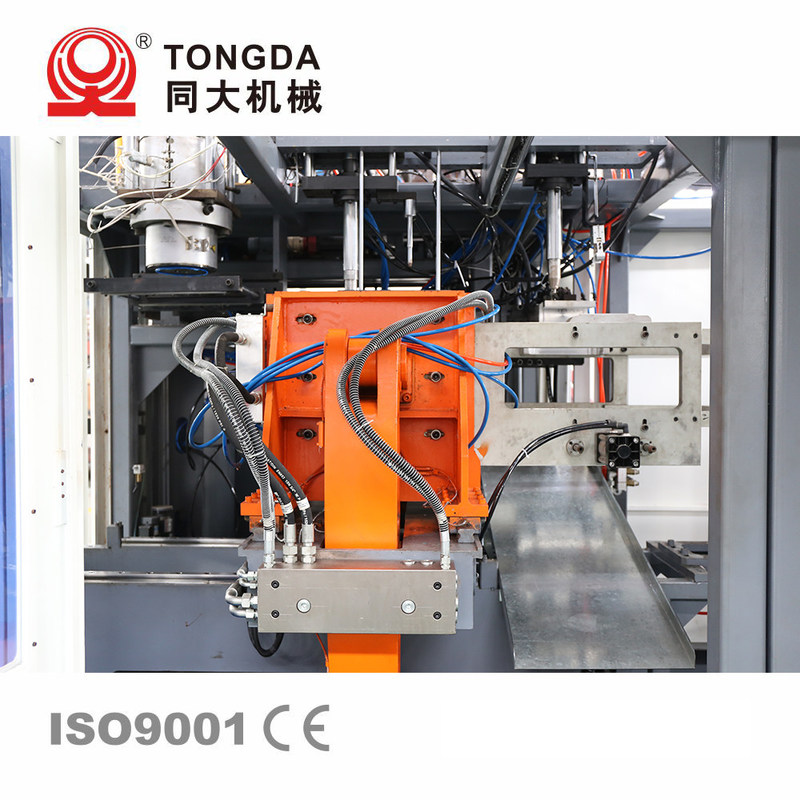

Conveyor

Inside the machine body, save space

Pesticide Chemical Bottle Making Machine Extrusion Blow Moulding Machines 1



Company Information



From negotiation to determining the optimal production plan for customers, from equipment installation and commissioning, maintenance, system Suzhou Tongda Machinery have more than 20,000m2 factory buildings and other facilicities and a new intelligent manufacturing factory with 55,000m2 area. The I phase 20,000m2 area factory will be put into use in June, 2022. And on May 19th, 2022, we just held the II phase intelligent manufacturing base groundbreaking ceremony.

Pesticide Chemical Bottle Making Machine Extrusion Blow Moulding Machines 2Pesticide Chemical Bottle Making Machine Extrusion Blow Moulding Machines 3Pesticide Chemical Bottle Making Machine Extrusion Blow Moulding Machines 4





After-sales services



Tongda has a sound service network, perfect after-sales service system, 14 professional after-sales service teams across the country, and a timely response service mechanism to continuously improve user satisfaction. Serve every customer sincerely, respond quickly, and solve the problems raised by customers in a timely manner. We will regularly send debugging engineers to visit customers and solve problems in time.

Pesticide Chemical Bottle Making Machine Extrusion Blow Moulding Machines 5



FAQ



TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function


Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.


Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
