2 Cavity Milk Bottle Blow Moulding Machine Two Station 80mm Screw Diameter

2 Cavity Milk Bottle Blow Moulding Machine Two Station 80mm Screw Diameter

  • High Light

    2 Cavity Milk Bottle Blow Moulding Machine

    ,

    Two Station Milk Bottle Blow Moulding Machine

  • Clamping Force (kN)
    70
  • PLC Brand
    MITSUBISHI
  • Screw L/D Ratio
    25
  • Screw Diameter (mm)
    80 Mm
  • Output (kg/h)
    110 Kg/h
  • No. Of Screw Heating Zone
    4
  • Screw Heating Power(kW)
    19 KW
  • Extruder Motor Power(kW)
    30 KW
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    TONGDA HTSll3L
  • Minimum Order Quantity
    1SET
  • Price
    $37,999.00 - $49,999.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    70-80 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

2 Cavity Milk Bottle Blow Moulding Machine Two Station 80mm Screw Diameter

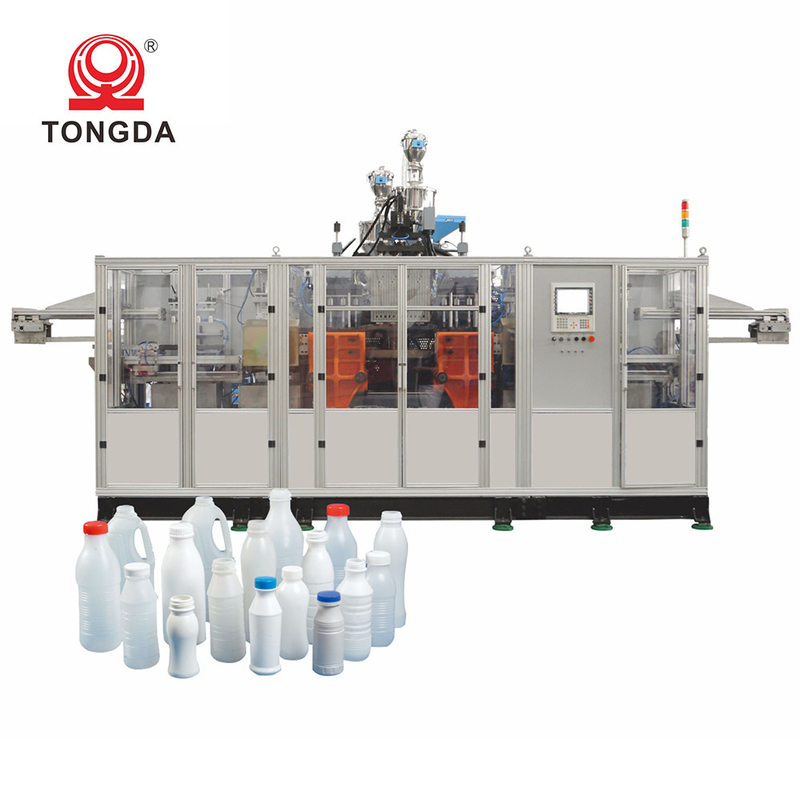

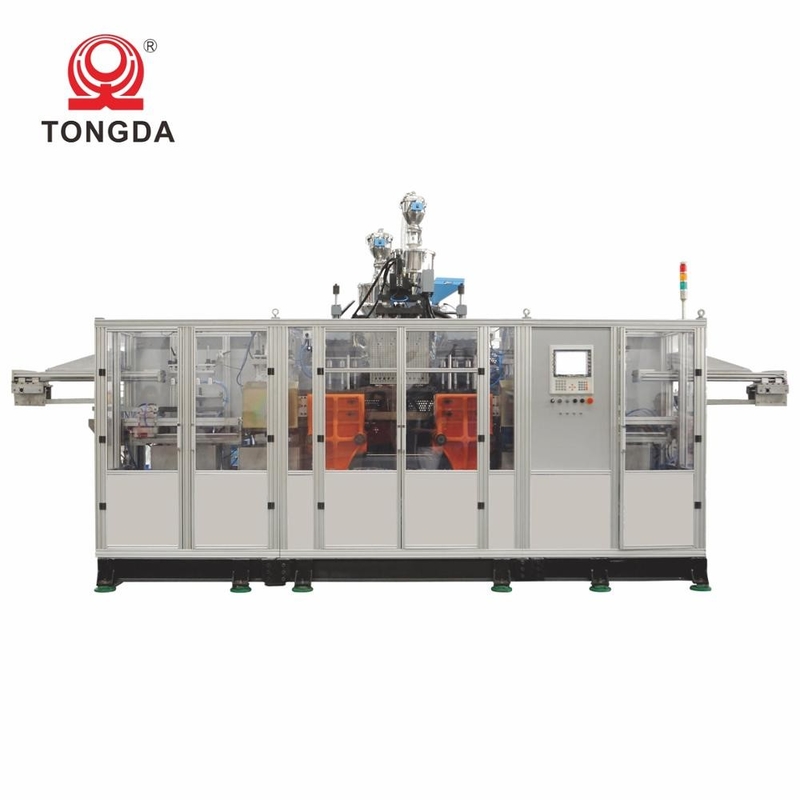

TONGDA HTSII3L Fully automatic 2 cavities blow molding machine

Product Description

HTSll-3L

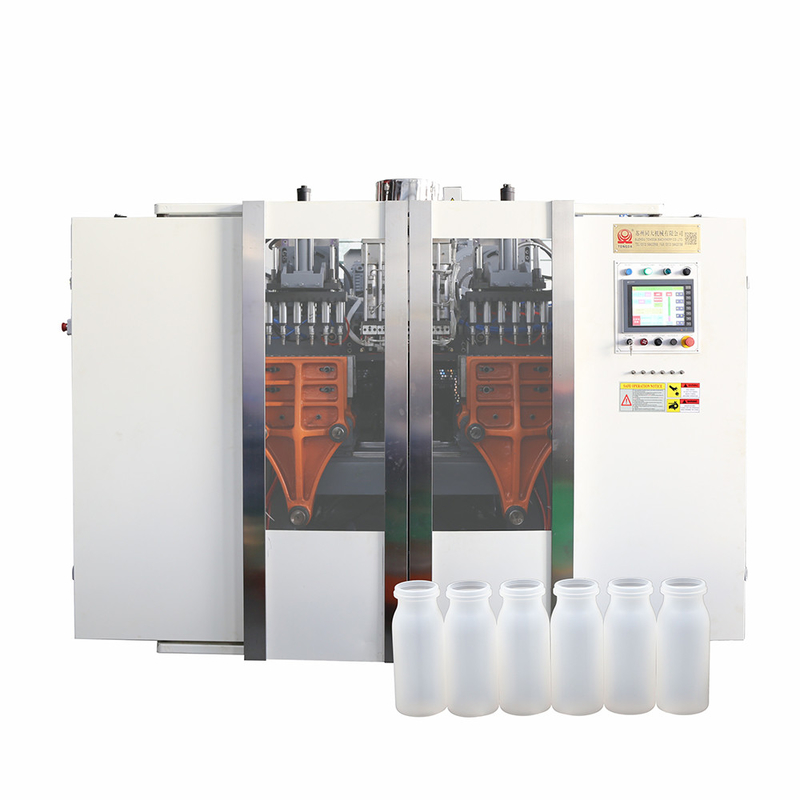

This is double station, 4 or 6 die-heads.This is suitable for making milk bottles and other small bottles.The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.

Technical Parameters

MODEL Units HTSII-3L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 0.35
Output of HDPE kg/h 110
Clamping force kn 70
Screw diametre mm 80 25:1
Screw heating power kw 19
Blow pressure mpa 0.6
Size of machine m 4.1×2.76×2.5

Product Details

2 Cavity Milk Bottle Blow Moulding Machine Two Station 80mm Screw Diameter 0

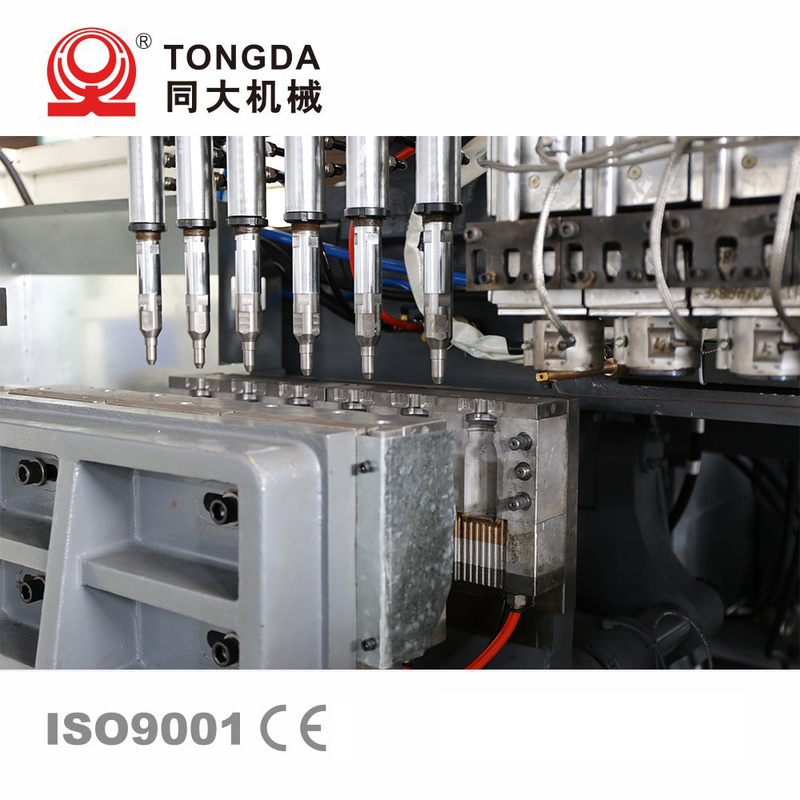

Multi-head die head confituration available for different output requirement, from 1 cavity to 8 cavity, we all can supply.



2 Cavity Milk Bottle Blow Moulding Machine Two Station 80mm Screw Diameter 1


Plasticizing system can be designed for multi-layers, 1-4 layers are definitely available, and have high degree customization space.

Honeycomb ventilation holes to ensure better heat dissipation performance.



Our Advantages

2 Cavity Milk Bottle Blow Moulding Machine Two Station 80mm Screw Diameter 2
2 Cavity Milk Bottle Blow Moulding Machine Two Station 80mm Screw Diameter 3
2 Cavity Milk Bottle Blow Moulding Machine Two Station 80mm Screw Diameter 4

After-sales service

2 Cavity Milk Bottle Blow Moulding Machine Two Station 80mm Screw Diameter 5
Arrange engineer to customer's factory
2 Cavity Milk Bottle Blow Moulding Machine Two Station 80mm Screw Diameter 6
We supply the after-service online 24 hours

Company Information

2 Cavity Milk Bottle Blow Moulding Machine Two Station 80mm Screw Diameter 7
Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been focusing on the research, development and product application of extrusion blow molding machines. The factory covers an area of more than 80 acres of land and has more than 270 employees. The company has established Engineering Technology Research and Development Center, and Jiangsu Province excellent Graduate work Jiangsu Enterprise Research and Development Center, Jiangsu Province Extrusion blow Molding Technology Technology Center has more than 50 R & D personnel, including 1 national science and technology talent, Station. Jiangsu Province post-doctoral innovation practice base and other R & D platforms, at present, the that means constantly exploring the expansion of new areas. Warmly welcome new and old customers to visit, to guide, 4 senior masters,15 bachelors, hosting the development of two national standards and participating in the formulation of a national standard. "Working Together to Grow Together" is the spirit of TONGDA company, to cooperate with us and we are always at your service to provide you with strong support.
2 Cavity Milk Bottle Blow Moulding Machine Two Station 80mm Screw Diameter 8


Suzhou Tongda Machinery Co., Ltd has established Engineering Technology Research and Development Center, and Jiangsu Province excellent Graduate work station. Jiangsu Enterprise Research and Development Center, Jiangsu Province Extrusion blow Molding Technology Technology Center, Jiangsu Province post-doctoral innovation practice base and other R & D platforms. That means constantly exploring the expansion of new areas.



2 Cavity Milk Bottle Blow Moulding Machine Two Station 80mm Screw Diameter 9

Suzhou Tongda Machinery has won TOP 1 in China domestic extrusion blow molding machine for continuous 10 years.


2 Cavity Milk Bottle Blow Moulding Machine Two Station 80mm Screw Diameter 10
Under normal conditions,the blow molding machine to abroad will be packaged in wooden case. ln addition,we will also pack the machine according to the requirements of specific customers.Subject to the measurement of main blower,we will choose corresponding wooden case, TONGDA is a professional mould machinery company we will try our best to satisfy the kinds of demand of customers.

Why Choose Us

2 Cavity Milk Bottle Blow Moulding Machine Two Station 80mm Screw Diameter 11

Our Machinery has been keeping good cooperative relationship with customers since our establishing.
The satisfaction of our customers are the pursuit of every member of Tongda,The only way we service in the competitive market is to help our customers to full fill their requirement.

FAQ

TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function

Advantages of TONGDA tech teams
1. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
2. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
3. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.

Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
