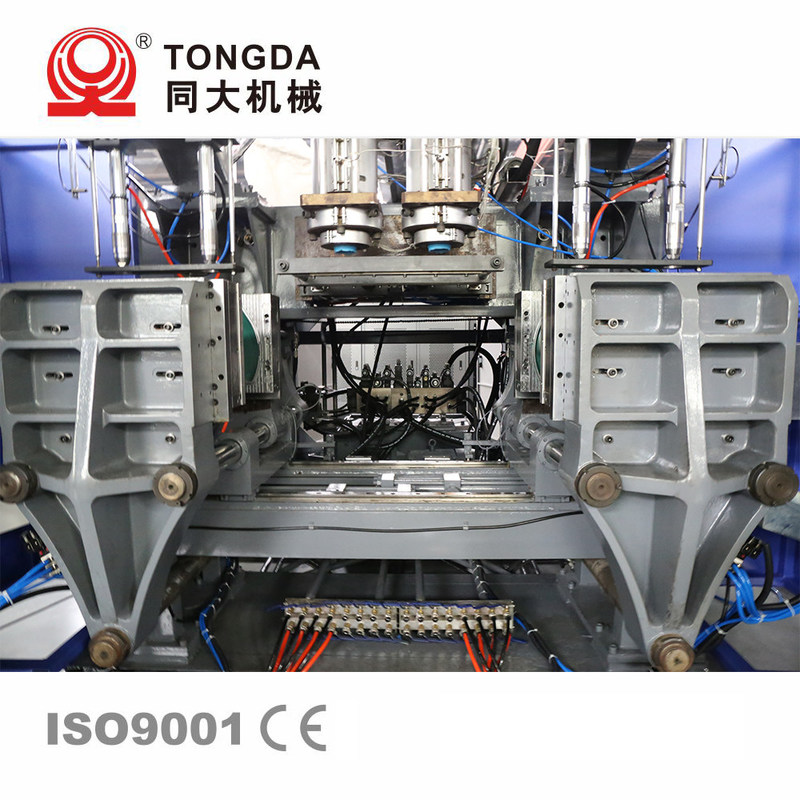

ABS Plastic Water Bottle Blow Molding Machine 1 - 5L double station

ABS Plastic Water Bottle Blow Molding Machine 1 - 5L double station

  • Highlight

    ABS Water Bottle Blow Molding Machine

    ,

    Double Station Water Bottle Blow Molding Machine

    ,

    5L Plastic Bottle Molding Machine

  • Condition
    New
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2020
  • Warranty Of Core Components
    1 Year
  • Core Components
    PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
  • Plastic Processed
    PP, HDPE, PC, ABS, PVC, PE, EVA, PA, ABS/PP, PE/PP, HDPE/PP, PETG
  • Year
    2019
  • Voltage
    Customized To Customer Needs
  • Dimension(L*W*H)
    3.43m*2.3m*2.65m
  • Hollow Part Volume
    1-5L
  • Clamping Force (kN)
    70
  • PLC Brand
    MITSUBISHI
  • Screw L/D Ratio
    25
  • Screw Diameter (mm)
    70 Mm
  • Output (kg/h)
    85 Kg/h
  • Automation
    Automatic
  • No. Of Screw Heating Zone
    3
  • Screw Heating Power(kW)
    13.2 KW
  • Extruder Motor Power(kW)
    22 KW
  • Mold Platen Size(Width)(mm)
    390 Mm
  • Mold Platen Size(Height)(mm)
    390 Mm
  • Air Pressure(MPa)
    0.4 MPa
  • Air Comsumption(m³/min)
    0.6 M³/min
  • Die Head Heating Power(kW)
    10.7 KW
  • Accumulator Capacity(L)
    0 L
  • Power (kW)
    53.8
  • Weight (T)
    5.5
  • Key Selling Points
    Long Service Life
  • Warranty
    1 Year
  • Applicable Industries
    Energy & Mining, Hotels, Home Use, Machinery Repair Shops, Restaurant, Food & Beverage Factory, Farms
  • Showroom Location
    Egypt, Indonesia, Pakistan, Thailand, Chile, Algeria
  • Rotary Cylinder Brand
    FESTO
  • Station
    Double Station
  • Suitable Bottle
    1-5L
  • Key Words
    Automatic Extrusion Blow Moulding Machine
  • Packing
    Wooden
  • Use
    Hollow Moulding
  • Parison Control
    MOOG
  • Max. Size Of Mold
    390*390
  • Hydraulic Valve
    Yuken
  • Color
    Blue
  • Port
    Shanghai
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    TONGDA HTll5L
  • Minimum Order Quantity
    1SET
  • Price
    $37,999.00 - $44,999.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

ABS Plastic Water Bottle Blow Molding Machine 1 - 5L double station

TONGDA HTll5L Fully automatic water bottle abs plastic blow molding machine



Product Description



This is our basic series machine.It is double station.This machine is suitable for the small bottles and toys.Most cost effective series machine for high production capacity choice.



Technical Parameters



MODEL Units HTII-5L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 5
Output of HDPE kg/h 85
Clamping force kn 70
Screw diametre mm 70
Screw heating power kw 13.2
Blow pressure mpa 0.6
Size of machine m 3.43*2.3*2.65



Product Details



Most cost effective series machine for high production capacity choice.

ABS Plastic Water Bottle Blow Molding Machine 1 - 5L double station 0

Automatic lubrication system, ensure the machine works more smoothly and the service life of parts longer

ABS Plastic Water Bottle Blow Molding Machine 1 - 5L double station 1



Company Information



Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. We have more than 23 years experience always specialized in R&D and manufacturing of extrusion blow molding machine.

ABS Plastic Water Bottle Blow Molding Machine 1 - 5L double station 2ABS Plastic Water Bottle Blow Molding Machine 1 - 5L double station 3







After-sales services



During epidemic period, our team have helped customers start up more than 250sets new Tongda machines by online service, to help customer run the machine as soon, our after sales team helped around 3 hours till the mid-night.

ABS Plastic Water Bottle Blow Molding Machine 1 - 5L double station 4



FAQ



TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function


Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.


Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
