2L HDPE Bottle Making Machine Fully Automatic 4 Cavity Blow Moulding Machine

2L HDPE Bottle Making Machine Fully Automatic 4 Cavity Blow Moulding Machine

  • High Light

    2L HDPE Bottle Making Machine

    ,

    4 Cavity HDPE Bottle Making Machine

    ,

    Fully Automatic 4 Cavity Blow Moulding Machine

  • Plastic Processed
    PP, HDPE, PC, ABS, PVC, PE, EVA, PA, ABS/PP, PE/PP, HDPE/PP, PETG
  • Voltage
    Customized To Customer Needs
  • No. Of Screw Heating Zone
    3
  • Station
    Double Station
  • Packing
    Wooden
  • Max. Size Of Mold
    310*320
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    HTll2L
  • Minimum Order Quantity
    1SET
  • Price
    $27,999.00 - $39,999.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

2L HDPE Bottle Making Machine Fully Automatic 4 Cavity Blow Moulding Machine

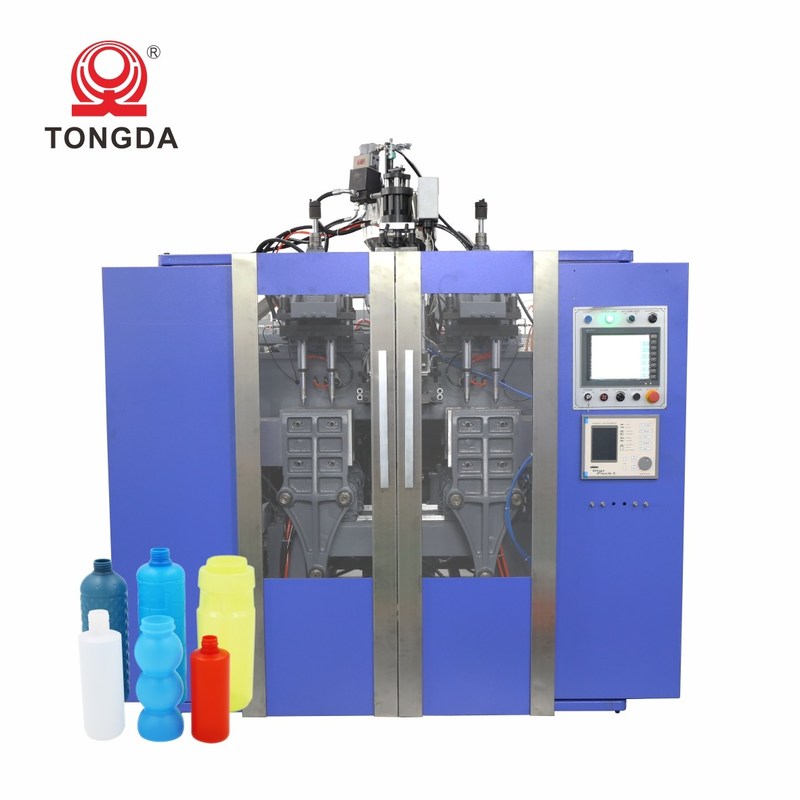

TONGDA HTll2L Fully automatic 4 cavity hdpe bottle blow moulding machine 2l
Product Description



This is our basic series machine.It is double station.This machine is suitable for the small bottles and toys.Most cost effective series machine for high production capacity choice.



Technical Parameters



MODEL Units HTII-2L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 2
Output of HDPE kg/h 60
Clamping force kn 44
Screw diametre mm 60
Screw heating power kw 11.2
Blow pressure mpa 0.6
Size of machine m 3.2*2.12*2.55



2L HDPE Bottle Making Machine Fully Automatic 4 Cavity Blow Moulding Machine 0

Product Details







2L HDPE Bottle Making Machine Fully Automatic 4 Cavity Blow Moulding Machine 1

We upgraded the configuration of power source for hydraulic movements and parison controller. Before we equip one big oil tank for hydraulic movements, and a small oil tank for parison controller, and need 2 motors. Now we use one big oil tank for whole power source, use an energy accumulator to save the energy for the parison controller to replace of a small oil tank and motor, not only save space, and save power energy. Also if the power supply is not stable in customer’s factory, the energy accumulator can protect the parison controller not be damaged because of suddenly power shut off



2L HDPE Bottle Making Machine Fully Automatic 4 Cavity Blow Moulding Machine 2

Our classic type machine, running stable, and easy operate.



Company Information



2L HDPE Bottle Making Machine Fully Automatic 4 Cavity Blow Moulding Machine 3

Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. We have more than 23 years experience always specialized in R&D and manufacturing of extrusion blow molding machine.



2L HDPE Bottle Making Machine Fully Automatic 4 Cavity Blow Moulding Machine 4

Suzhou Tongda Machinery have more than 20,000m2 factory buildings and other facilicities and a new intelligent manufacturing factory with 55,000m2 area. The I phase 20,000m2 area factory will be put into use in June, 2022. And on May 19th, 2022, we just held the II phase intelligent manufacturing base groundbreaking ceremony.





Service Network



2L HDPE Bottle Making Machine Fully Automatic 4 Cavity Blow Moulding Machine 5

1. We have office in Poland, Peru, Chile, Russia, Egypt, Jordan, Thailand,  Indonesia, Algeria, Ethiopia, Poland, etc
2. We have benchmark customers in America, Saudi Arabia, Jordan, Qatar, Thailand, Indonesia, etc.
3. Our company has exported over 4000 units machine to more than 120 countries and regions, such as USA, UK, Australia, Greece,Poland.Russia,Belarus,South America, South Africa,Indonesia, Egypt, Syria, Ethiopia.We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.



FAQ



Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.


Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.


Q: How big is your company?
A: our company has 400 employees and A building area of 100,000 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1999.
