Blue Plastic Drum Extrusion Blow Molding Machine Industrial Accumulator Type

Blue Plastic Drum Extrusion Blow Molding Machine Industrial Accumulator Type

Products - Extrusion Blow Molding Machine
  • High Light

    Accumulator Extrusion Blow Molding Machine

    ,

    Industrial Extrusion Blow Molding Machine

    ,

    Blue Plastic Drum Blow Molding Machine

  • Hollow Part Volume
    1-120L
  • Clamping Force (kN)
    740KN
  • PLC Brand
    MITSUBISHI
  • Screw L/D Ratio
    25
  • Screw Diameter (mm)
    100 Mm
  • Output (kg/h)
    200 Kg/h
  • Accumulator Capacity(L)
    12.8 L
  • Warranty
    1 Year
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    TDB-120F
  • Minimum Order Quantity
    1SET
  • Price
    $99,999.00/Sets >=1 Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

Blue Plastic Drum Extrusion Blow Molding Machine Industrial Accumulator Type

  • Blue Plastic Drum Extrusion Blow Molding Machine Industrial Accumulator Type
  • Blue Plastic Drum Extrusion Blow Molding Machine Industrial Accumulator Type
  • Blue Plastic Drum Extrusion Blow Molding Machine Industrial Accumulator Type
  • Blue Plastic Drum Extrusion Blow Molding Machine Industrial Accumulator Type
  • Blue Plastic Drum Extrusion Blow Molding Machine Industrial Accumulator Type
  • Blue Plastic Drum Extrusion Blow Molding Machine Industrial Accumulator Type
Get Price Contact Now

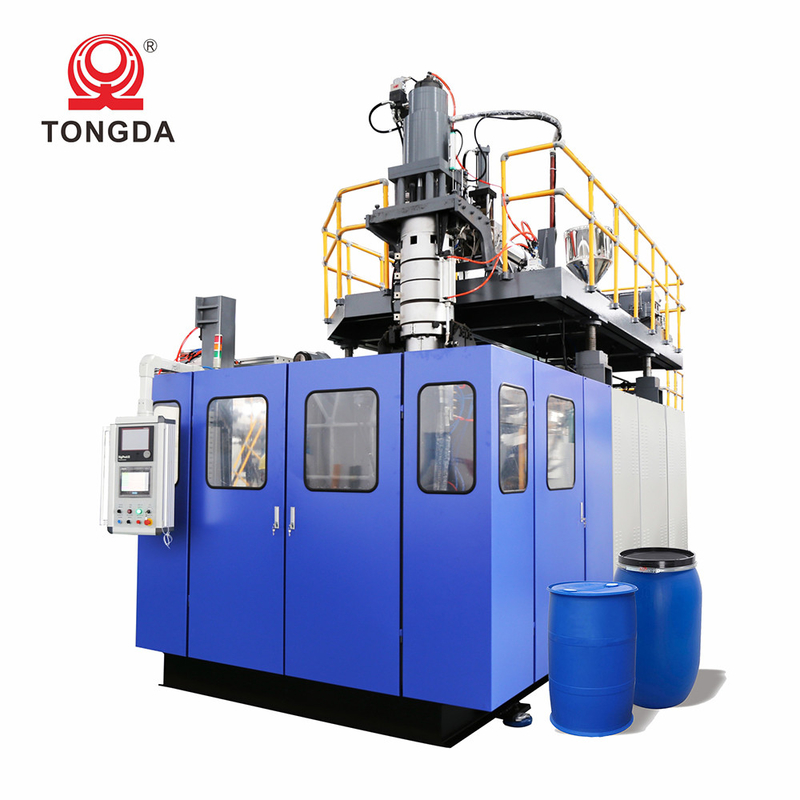

TONGDA TDB-120F Plastic Accumulator Type Industrial Blue Plastic Drum Container Extrusion Blow Molding Machine

Product Description

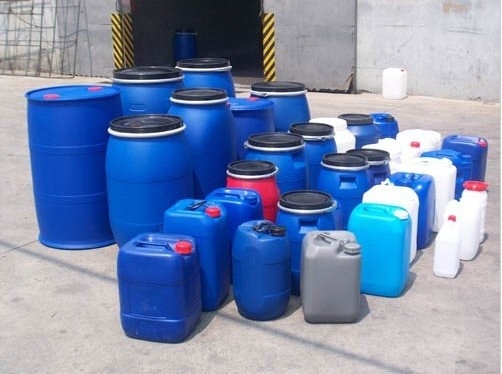

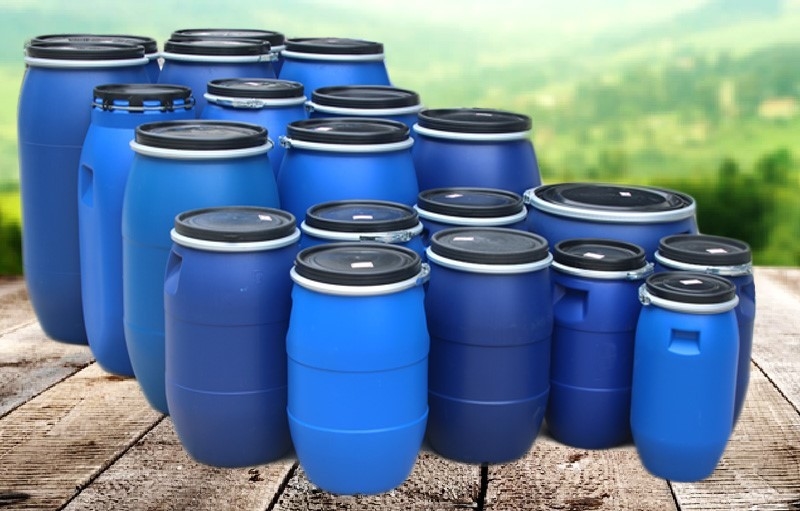

This TDB-120F model extrusion blow molding machine is our hot sale series machine, suitable for producing below 120L plastic hollow products.

Many customers purchase it to produce plastic mannequins, can used to produce male, female and children full body, half body, and base, just by changing the moulds.

With accumulator die head, and filling material driven by the servo motor to save electrical energy when the motor will stop working when the filling is end.
We also can customized the machine according to your requirements.

Technical Parameters

MODEL
Units
TDB-120F
Remarks: If you have other special requirements,we can provide customized services for you.
Max. Product volume
L
120

Output of HDPE
kg/h
180

Clamping force
kn
740

Screw diametre
mm
100

Screw heating power
kw
21

Blow pressure
mpa
0.6

Size of machine
m
5.8*2.9*4.3


Product Details

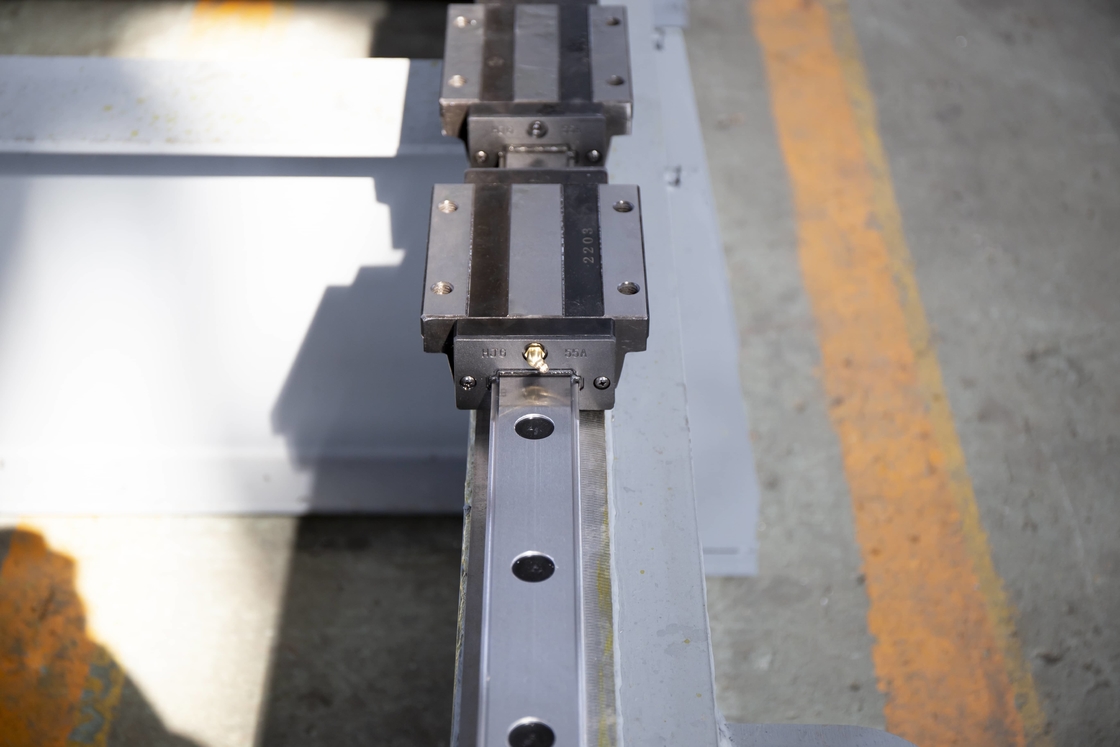

Clamping structure, we use 3 plate type design, with more stable clamping function

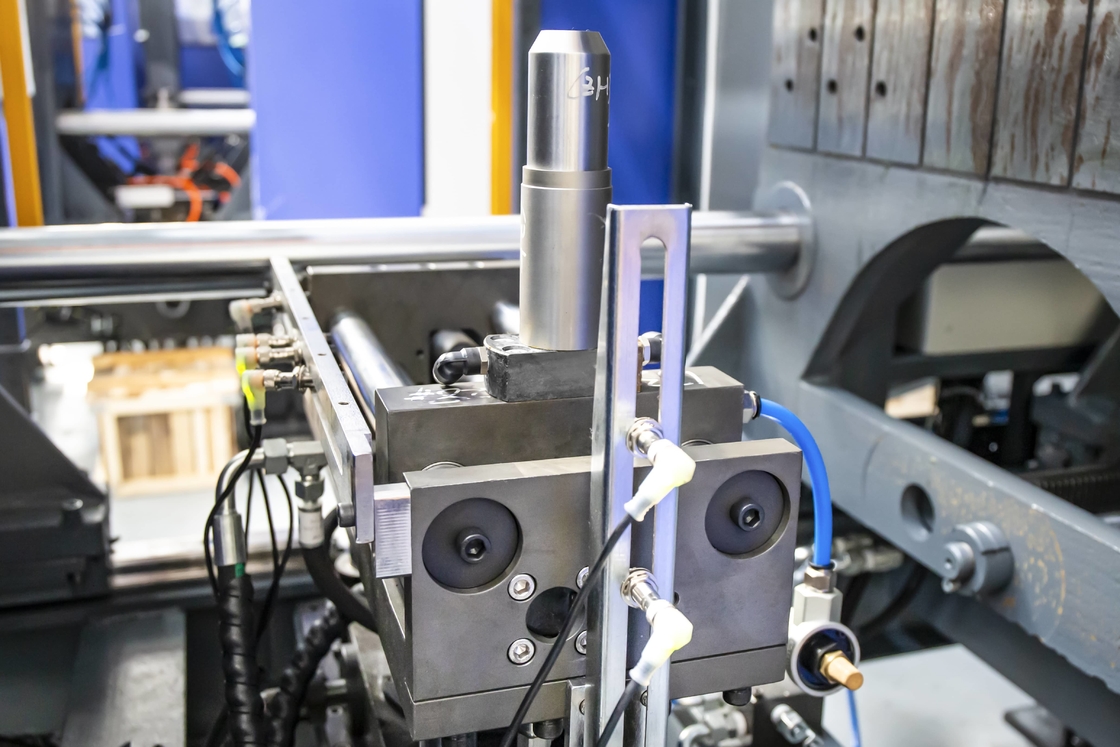

Separate oil source, for parison controller, to ensure better and more stable reaction speed.



Blue Plastic Drum Extrusion Blow Molding Machine Industrial Accumulator Type 0

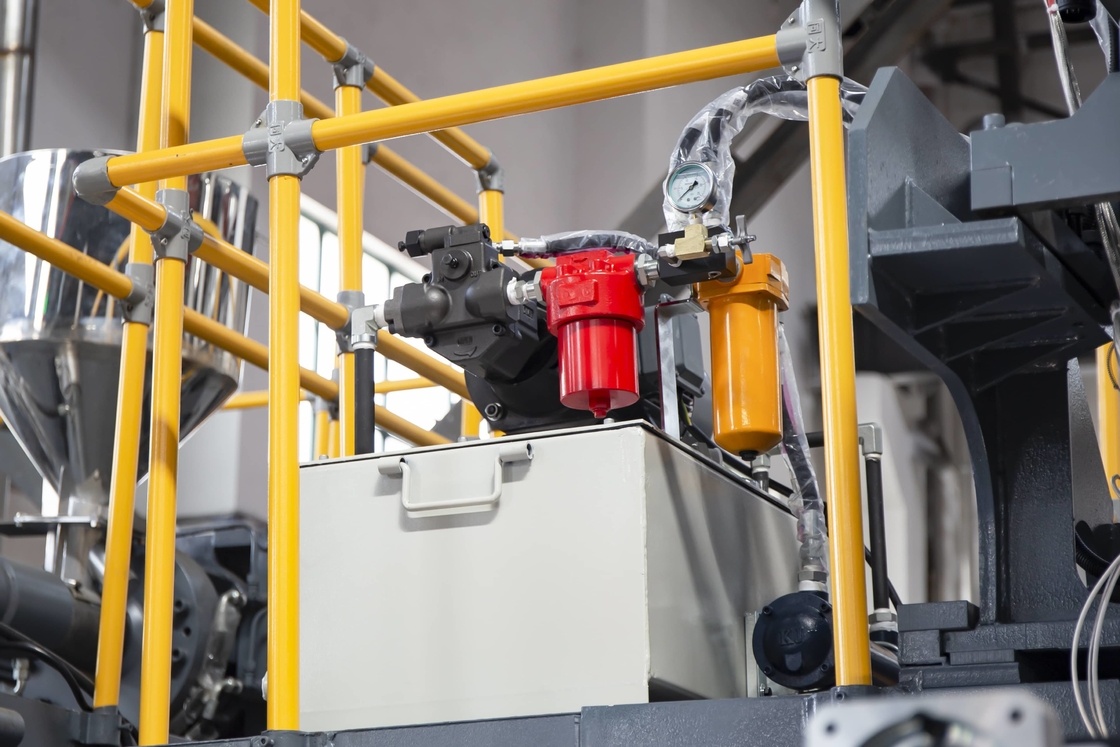

Hydraulic system: proportional pressure control, equipped with famous brand hydraulic components, which are stable and reliable.



Blue Plastic Drum Extrusion Blow Molding Machine Industrial Accumulator Type 1

Company Information
Blue Plastic Drum Extrusion Blow Molding Machine Industrial Accumulator Type 2Blue Plastic Drum Extrusion Blow Molding Machine Industrial Accumulator Type 3Blue Plastic Drum Extrusion Blow Molding Machine Industrial Accumulator Type 4Blue Plastic Drum Extrusion Blow Molding Machine Industrial Accumulator Type 5

Suzhou Tongda Machinery is a leading manufacturer of extrusion blow molding machine. Found in year 1999, we have more than 23 years experience, we're always specialized in R&D and manufacturing of extrusion blow molding machine.







And we have won the TOP 1 in China Plastics Hollow Molding Machinery Industry.


After-sales Service

Before epidemic, we send engineers to customers factory to do installation, debugging.
And from the COVID-19, sending out engineers is not convenient, so we started to do after-sales service by online training.

Blue Plastic Drum Extrusion Blow Molding Machine Industrial Accumulator Type 6
Blue Plastic Drum Extrusion Blow Molding Machine Industrial Accumulator Type 7

Why Choose Us
  • Over 7000sets Tongda machines are serving customers all over the world
  • Having service office in Russia, Egypt, Jordan, Thailand, Chile, Indonesia and Algeria
  • We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.

FAQ


Advantages of TONGDA tech teams

  • Customize equipment models according to customer product characteristics.
  • Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.


Advantages of TONGDA after-sales team

  • Lifetime free service for the machine.
  • Quick response all day long.
  • Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
