80L 120L Wide mouth bucket Plastic Extrusion Blow Molding Machine EBM Tool box
Product Description of TDB-80F
Our TDB-80F model machine is one of our hot sale model extrusion blow molding machine. It is with wide applilcations, not only can produce plastic containers, such as 50L-120L open top single ring chemical drums, also can produce diffent usage plastic hollow products, such as HDPE dustbin bucket, plastic female mannequin half body, children mannequin full body, sports items, toys, furniture, industrial products, etc.
Equipped with servo motor not only for hydraulic system, also the extruder, so it will save 10-30% energy.
Our efficient plasticizing mixing screw, which ensures the plastic is fully and evenly plasticized, then improve product surface quality and effectively prevent screw temperature rise.
Technical Parameters of TDB-80F
| MODEL | Units | TDB-80F | Remarks: we will customize the most suitable machinery according to your requirements |
| Max. Product volume | L | 120 | |
| Output of HDPE | kg/h | 180 | |
| Clamping force | kn | 440 | |
| Screw diametre | mm | 100 25:1 | |
| Screw heating power | kw | 21 | |
| Blow pressure | mpa | 0.6 | |
| Size of machine | m | 5.42×2.45×3.9 |
Product Details of TDB-80F
Bottom Blowing Unit, with high precission of component assembly, can also be equipped with down seal device
Upper parison sealing device, stable and reliable
Clamping structure, we use 3 plate type design, with more stable clamping function

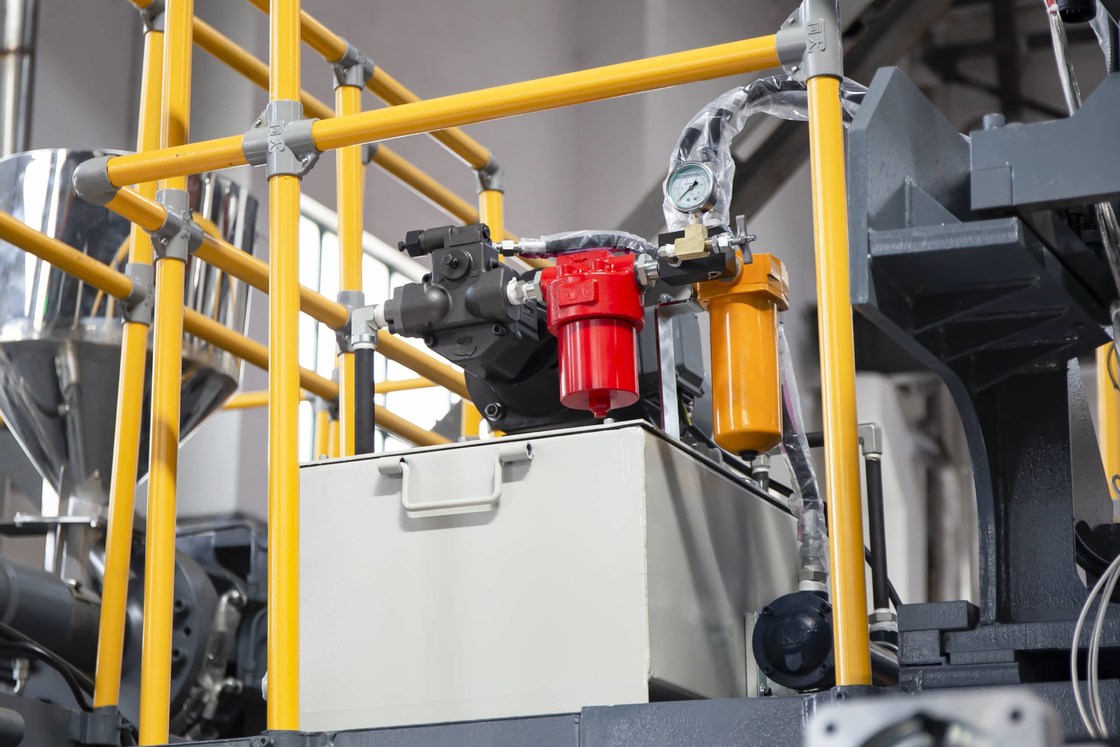

Separate oil source, for parison controller, to ensure better and more stable reaction speed.
Company Information
Our company has exported over 4000 units machine to more than 120 countries and regions, such as USA, UK, Australia, Greece,Poland.Russia,Belarus,South America, South Africa,Indonesia, Egypt, Syria, Ethiopia.We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.
After-sales Service
Before epidemic, we send engineers to customers factory to do installation, debugging.
And from the COVID-19, sending out engineers is not convenient, so we started to do after-sales service by online training.
FAQ
TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function
Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.
Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
Our products are sold all over the world, you can rest assured.
