Hollow PP HDPE Plastic Blowing Moulding Machine For Water Tank

Hollow PP HDPE Plastic Blowing Moulding Machine For Water Tank

Products - Extrusion Blow Molding Machine
  • High Light

    Hollow Plastic Blowing Moulding Machine

    ,

    HDPE Plastic Blowing Moulding Machine

    ,

    Hollow Water Tank Blow Molding Machine

  • Condition
    New
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2020
  • Warranty Of Core Components
    1 Year
  • Core Components
    PLC, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
  • Application
    Bottle
  • Plastic Processed
    PP, HDPE, PC, ABS, PVC, PE, EVA, PA, ABS/PP, PE/PP, HDPE/PP, PETG
  • Year
    2019
  • Voltage
    Customized To Customer Needs
  • Dimension(L*W*H)
    6.2x5.5x3.3
  • Hollow Part Volume
    1-30L
  • Clamping Force (kN)
    250
  • PLC Brand
    MITSUBISHI
  • Screw L/D Ratio
    28
  • Screw Diameter (mm)
    100 Mm
  • Output (kg/h)
    300 Kg/h
  • Automation
    Automatic
  • No. Of Screw Heating Zone
    4
  • Screw Heating Power(kW)
    30.8 KW
  • Extruder Motor Power(kW)
    74 KW
  • Mold Platen Size(Width)(mm)
    740 Mm
  • Mold Platen Size(Height)(mm)
    650 Mm
  • Air Pressure(MPa)
    0.6 MPa
  • Air Comsumption(m³/min)
    1.2 M³/min
  • Die Head Heating Power(kW)
    17 KW
  • Accumulator Capacity(L)
    0 L
  • Power (kW)
    156
  • Weight (T)
    24
  • Key Selling Points
    Long Service Life
  • Warranty
    1 Year
  • Applicable Industries
    Energy & Mining, Hotels, Home Use, Machinery Repair Shops, Restaurant, Food & Beverage Factory, Farms
  • Showroom Location
    Egypt, Indonesia, Pakistan, Thailand, Chile, Algeria
  • Rotary Cylinder Brand
    FESTO
  • Station
    Double
  • Suitable Bottle
    1-30L
  • Key Words
    Automatic Extrusion Blow Moulding Machine
  • Packing
    Wooden
  • Use
    Hollow Moulding
  • Parison Control
    MOOG
  • Max. Size Of Mold
    740*650
  • Hydraulic Valve
    Yuken
  • Color
    Blue
  • Port
    SHANGHAI
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    TONGDA HSll30L
  • Minimum Order Quantity
    1SET
  • Price
    $129,999.00 - $149,999.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    28 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

Hollow PP HDPE Plastic Blowing Moulding Machine For Water Tank

  • Hollow PP HDPE Plastic Blowing Moulding Machine For Water Tank
  • Hollow PP HDPE Plastic Blowing Moulding Machine For Water Tank
  • Hollow PP HDPE Plastic Blowing Moulding Machine For Water Tank
  • Hollow PP HDPE Plastic Blowing Moulding Machine For Water Tank
  • Hollow PP HDPE Plastic Blowing Moulding Machine For Water Tank
  • Hollow PP HDPE Plastic Blowing Moulding Machine For Water Tank
Get Price Contact Now

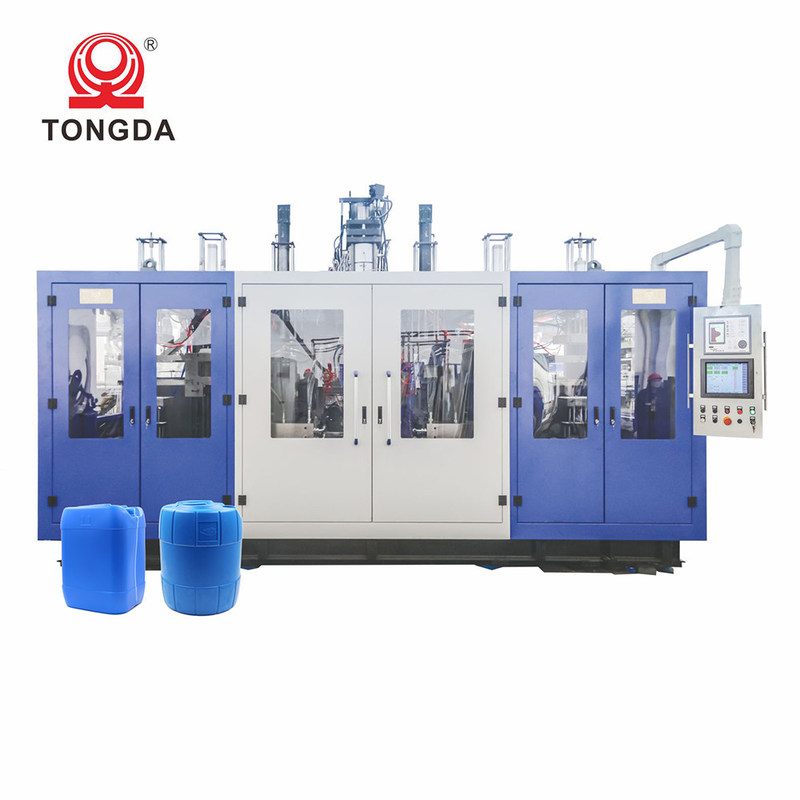

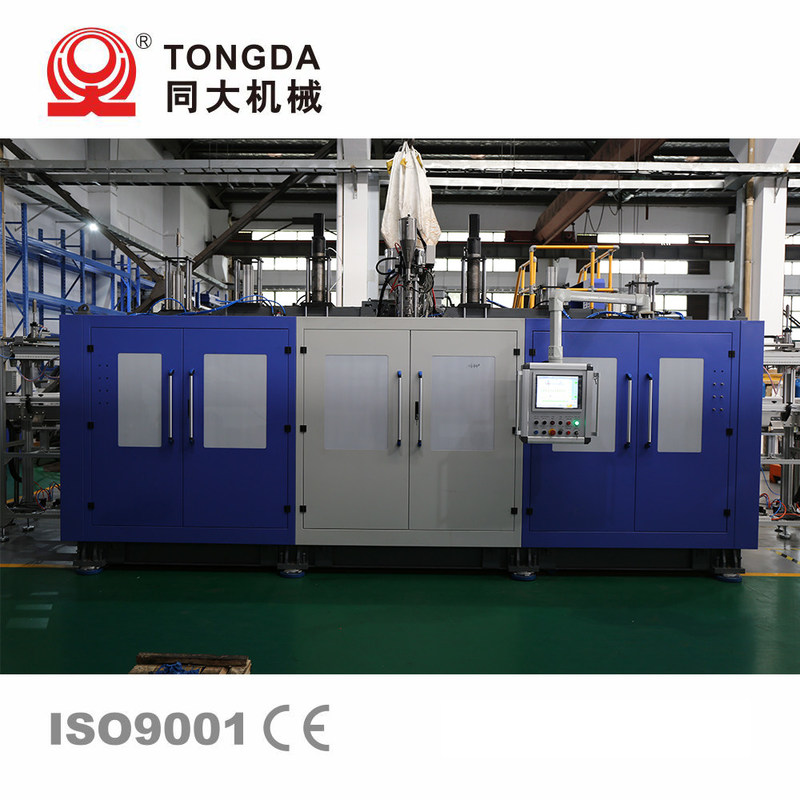

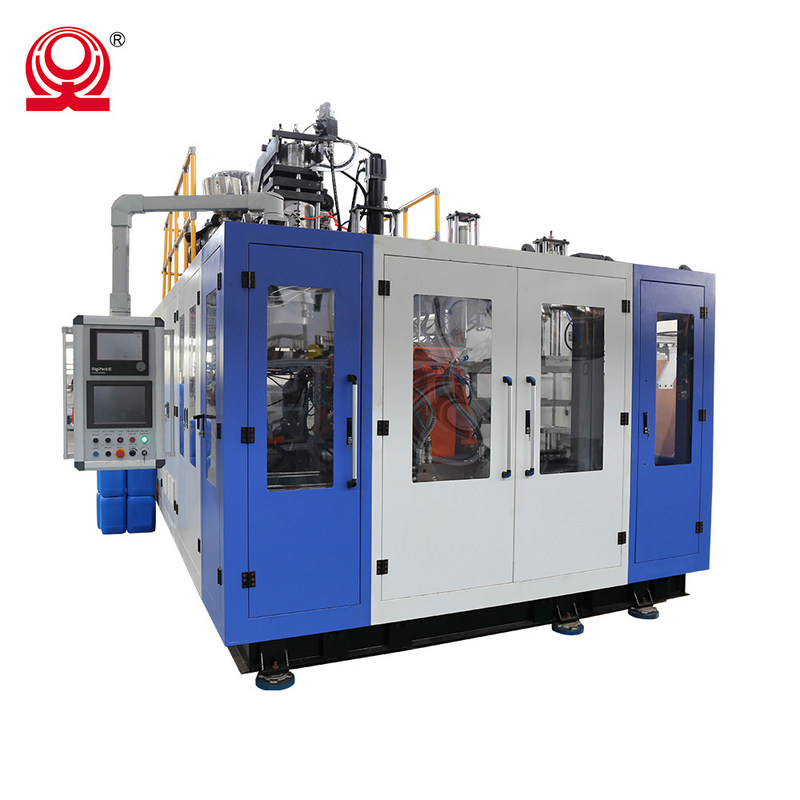

TONGDA HSll30L Fully Automatic Tank Blow Molding Machine Hollow Plastics Blowing Moulding Machine

Product Description

This HSII-30L model machine belongs to our best series extrusion blow molding machine.

This is double station and electric-hydraulic. It is high speed and energy-saving. The blow pin, die-head up & down, platform up & down is controlled by electric. The main movement is controlled by hydraulic servo system. Clamping unit is elbow style and the clamping force is big. This machine is suitable for the 20L~30L stacking jerry can, PP 5 gallon water bottles, etc.

Continous type die head, with shorter cycle time. And stable for parison, suitable for adding view strip line function.

Suitable to be equipped with multi-layer.

If you want high automation for the machine, then equip 3 dimensional robot arm, finished product conveyor go through the machine body to save space.


Technical Parameters

MODEL
Units
HSII-30L
Remarks: The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.
Max. Product volume
L
30

Output of HDPE
kg/h
300

Clamping force
kn
250

Screw diametre
mm
100

Screw heating power
kw
26

Blow pressure
mpa
0.6

Size of machine
m
6.2x5.5x3.3


Product Details

HGH-EFIGIENCY AND ENERGY-SAVING

Hollow PP HDPE Plastic Blowing Moulding Machine For Water Tank 0

Quality Control:The perfect quality control system controls all aspects of prducion step by step, realizes the whole process quality control of products, and provides a strong guarantee for product quality.

Hollow PP HDPE Plastic Blowing Moulding Machine For Water Tank 1

Hollow PP HDPE Plastic Blowing Moulding Machine For Water Tank 2






After-sales service



Hollow PP HDPE Plastic Blowing Moulding Machine For Water Tank 3
Arrange engineer to customer's factory



Company Information

Suzhou Tongda Machinery Co., Ltd has established Engineering Technology Research and Development Center, and Jiangsu Province excellent Graduate work station. Jiangsu Enterprise Research and Development Center, Jiangsu Province Extrusion blow Molding Technology Technology Center, Jiangsu Province post-doctoral innovation practice base and other R & D platforms. That means constantly exploring the expansion of new areas.

Hollow PP HDPE Plastic Blowing Moulding Machine For Water Tank 4Hollow PP HDPE Plastic Blowing Moulding Machine For Water Tank 5Hollow PP HDPE Plastic Blowing Moulding Machine For Water Tank 6

FAQ

TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function

Advantages of TONGDA tech teams
1. 600 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.

Q: How long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
