500ml HDPE Milk Bottle Extrusion Blow Molding Machine High Output Automatic

500ml HDPE Milk Bottle Extrusion Blow Molding Machine High Output Automatic

  • High Light

    Milk Bottle Extrusion Blow Molding Machine

    ,

    500ml Bottle Extrusion Blow Molding Machine

    ,

    Bottle Extrusion Blow Molding Machine 110kg/h

  • Dimension(L*W*H)
    4.4m*3.2m*2.7m
  • Clamping Force (kN)
    110
  • Screw L/D Ratio
    25
  • Screw Diameter (mm)
    80 Mm
  • Output (kg/h)
    110 Kg/h
  • No. Of Screw Heating Zone
    4
  • Screw Heating Power(kW)
    19 KW
  • Extruder Motor Power(kW)
    30 KW
  • Place of Origin
    JIANGSU, CHINA
  • Brand Name
    TONGDA
  • Certification
    CE, ISO9001
  • Model Number
    TONGDA HTll6L
  • Minimum Order Quantity
    1SET
  • Price
    $35,999.00 - $45,999.00/Sets
  • Packaging Details
    PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
  • Delivery Time
    70-80 working days
  • Payment Terms
    T/T, L/C, D/P, West Union
  • Supply Ability
    800sets/year

500ml HDPE Milk Bottle Extrusion Blow Molding Machine High Output Automatic

500ml HDPE Milk Bottle Making High Output Automatic Extrusion Blow Molding Machine

Product Description of HTII-6L/6 Extrusion Blow Molding Machine


This is our double station, 6 die-heads extrusion blow molding machine. It is quite suitable for making HDPE milk bottles and other small bottles size below 500ml. The output can reach 2,400pcs/hour. Producing the milk bottles, in order to ensure better aluminum foil sealing effect, this bottle will be designed with rotary cutting bottle mouth, we can equip the rotary cutting device on the machine, so you just need to let two workers sit beside the two side of the machine to collect the bottles and pack the finished bottles. If you need fully automation line, you also can equip robot arms to take out the bottles onto the conveyor, then equip leak tester, and automatic packaging table.


Technical Parameter of HTII-6L/6 Extrusion Blow Molding Machine

MODEL Units HTII-6L Remarks: we will customize the most suitable extrusion blow molding machine according to your requirements
Max. Product volume L 0.5
Output of HDPE kg/h 110
Clamping force kn 110
Screw diametre mm 80 25:1
Screw heating power kw 19
Blow pressure mpa 0.8
Size of machine m 4.4×3.2×2.7



Product Details HTII-6L/6 Extrusion Blow Molding Machine

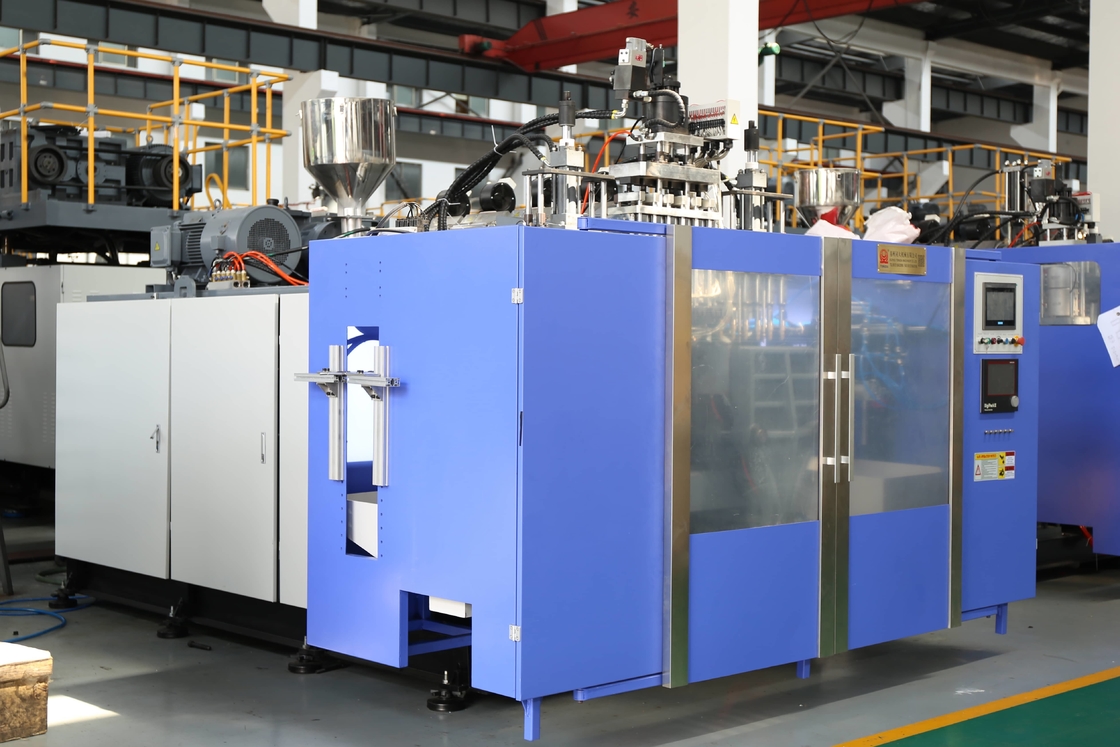

500ml HDPE Milk Bottle Extrusion Blow Molding Machine High Output Automatic 0

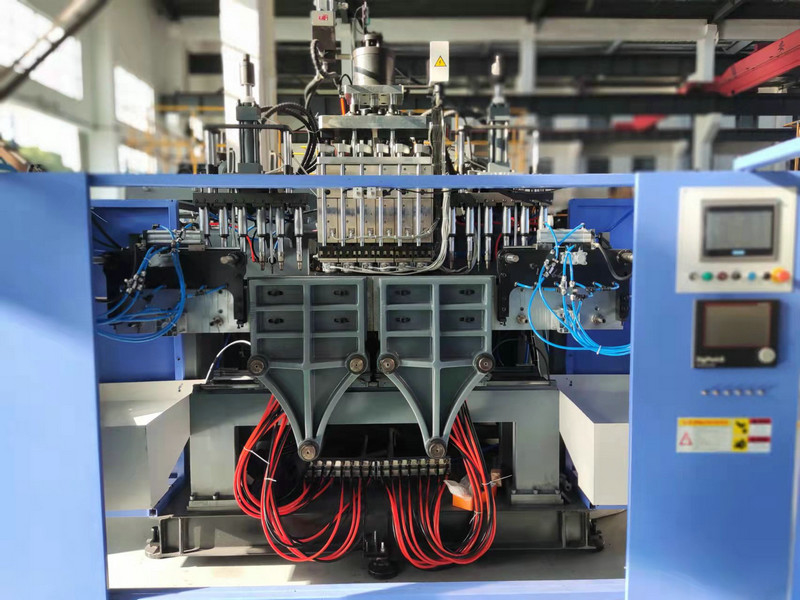

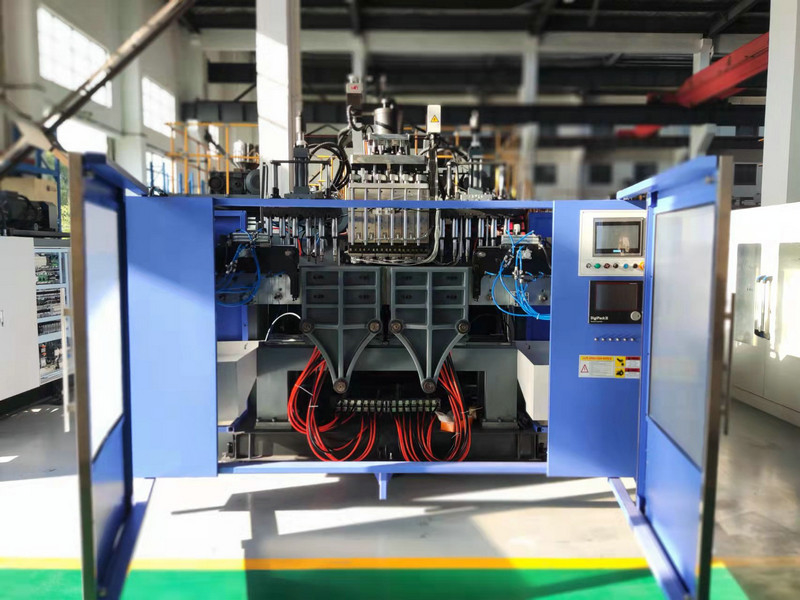

500ml HDPE Milk Bottle Extrusion Blow Molding Machine High Output Automatic 1

6 die heads configuration is very hot sale model, for producing small HDPE milk bottles, beverage bottles and cosmetic jars.

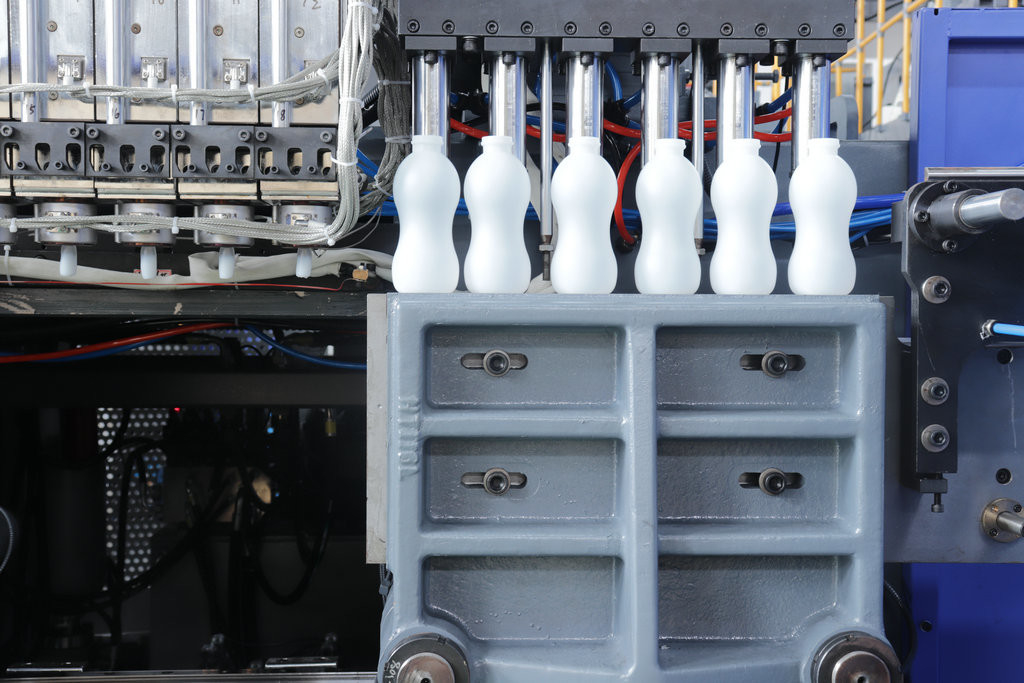

500ml HDPE Milk Bottle Extrusion Blow Molding Machine High Output Automatic 2


Energy acuumulator configuration save power energy instead of using a separate oil source and motor and save space.



After-sales service

500ml HDPE Milk Bottle Extrusion Blow Molding Machine High Output Automatic 3
We supply after-service online 24 hours

Company Information
500ml HDPE Milk Bottle Extrusion Blow Molding Machine High Output Automatic 4
500ml HDPE Milk Bottle Extrusion Blow Molding Machine High Output Automatic 5
Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. We have more than 23 years experience always specialized in R&D and manufacturing of extrusion blow molding machine. We have more than 20,000m2 factory buildings and other facilicities and a new intelligent manufacturing factory with 55,000m2 area. The I phase 20,000m2 area factory will be put into use in June, 2022. And on May 19th, 2022, we just held the II phase intelligent manufacturing base groundbreaking ceremony.


Advantages of TONGDA after-sales team

  • Lifetime free service for the machine.
  • Quick response all day long.
  • Set up domestic service team and international service team.
  • Technicians also master the debugging and maintenance of auxiliary equipment.
  • A free 2-day training course will be provided to customers every year.
  • Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
