Floating object Extrusion Blow Molding Machine Recycled HDPE Plastic Pallet
Product Description of HT-1500L

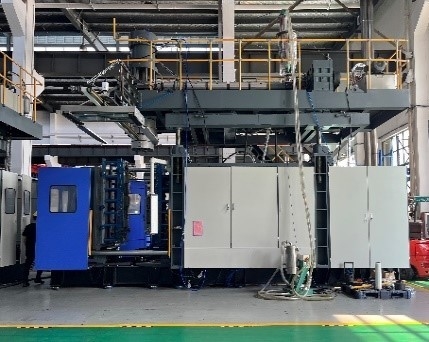

Our HT-1500L model EBM extrusion blow molding machine, is one machine with big platen size, big clamping force, accumulator size have several size range for choose. Using servo motors for the hydraulic system and the plasticizing system to save energy.

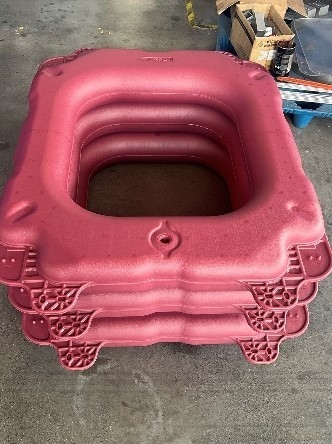

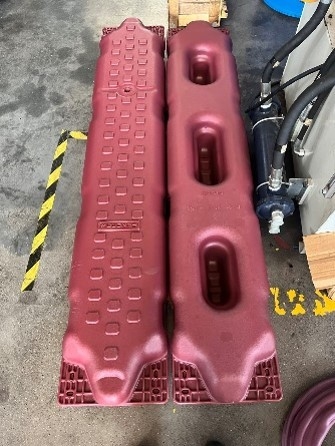

Not only suitable for producing extrusion blow molded plastic pallets, also suitable for producing plastic solar panel pontoons.
Technical Parameters of HT-1500L
|
MODEL
|
Units
|
HT-1500L |
Remarks: we will customize the most suitable extrusion blow molding machine for you according to your requirements
|
|
Max. Product volume
|
L
|
1500
|
|
|
Output of HDPE
|
kg/h
|
450 | |
|
Clamping force
|
kn
|
1200 | |
| Accumulator head Capacity |
L
|
35 or customized
|
|
|
Platen Distance
|
mm | 600-2000 | |
|
Screw Motor Power
|
KW |
160
|
Product Details of HT-1500L

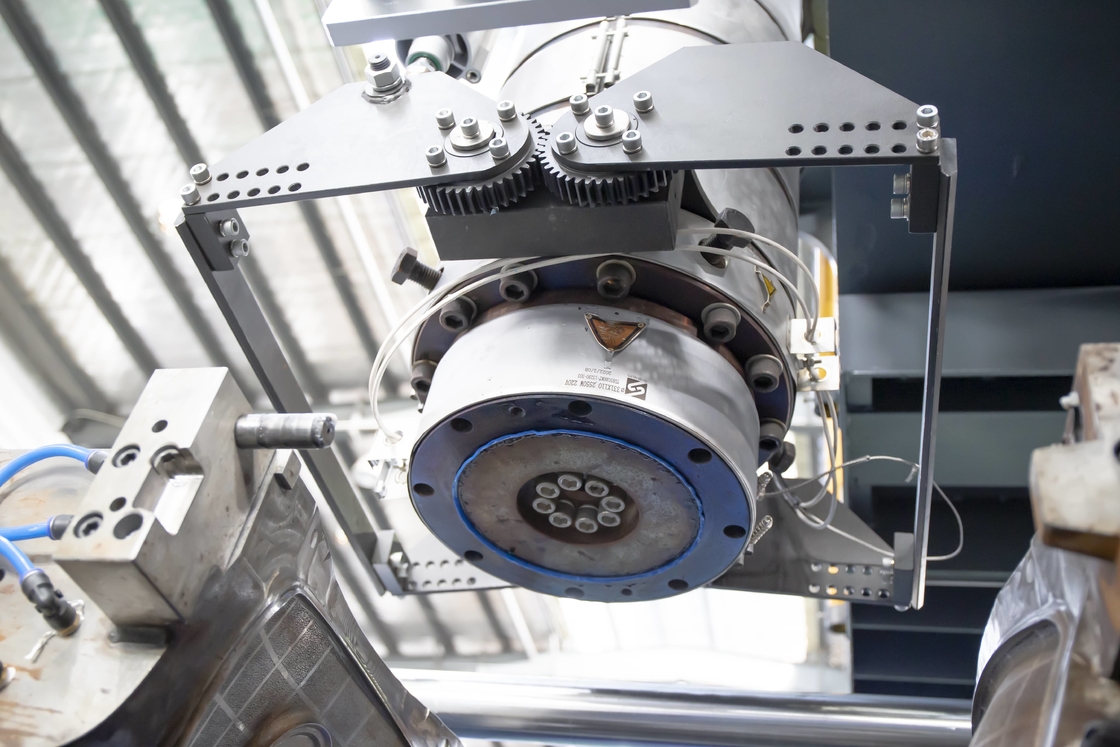

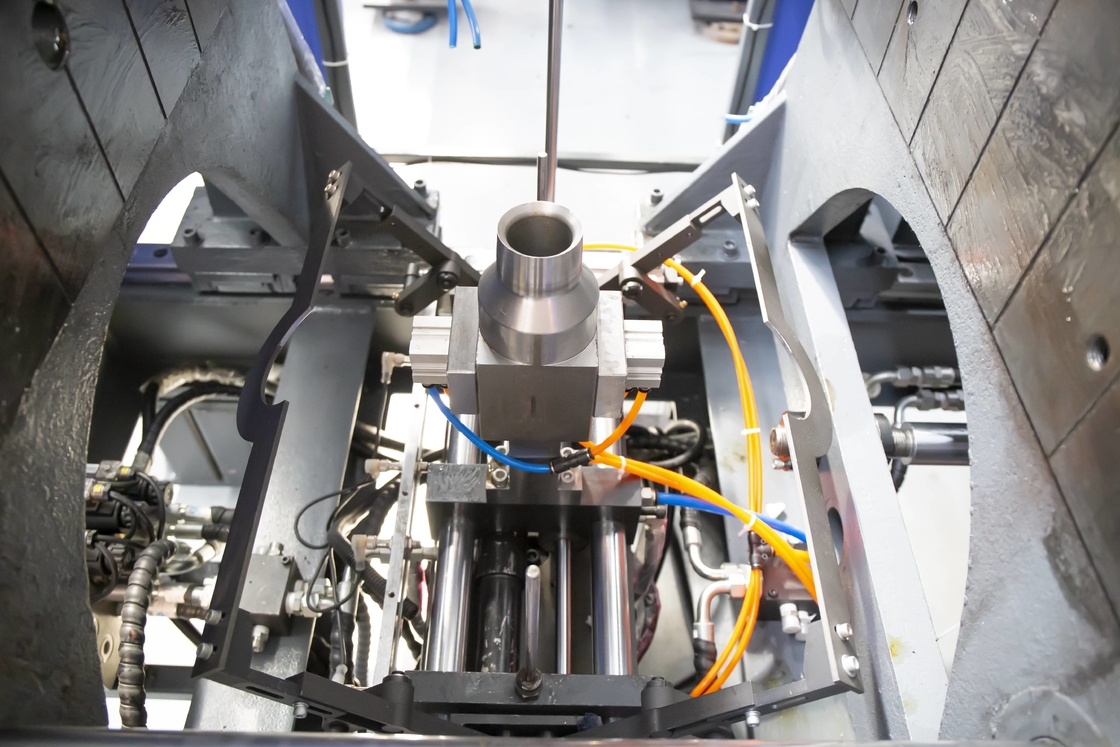

Excellent flow channel technology and precise machining accuracy, make the color change and material change more efficient. From dark to white, normally can be completed within 3hours. Much quicker than other suppliers. Save cost for you if you need to produce different color products.
Using 38CrMoALA, 42CrMo and other high-quality materials, made by precision machining and heat treatment.
Mold temperature controller, can monitor the temperature more precisely
Servo pump, with significant energy saving effect
Company Infomation
Suzhou Tongda Machinery Co., Ltd has established Engineering Technology Research and Development Center, and Jiangsu Province excellent Graduate work station. Jiangsu Enterprise Research and Development Center, Jiangsu Province Extrusion blow Molding Technology Technology Center, Jiangsu Province post-doctoral innovation practice base and other R & D platforms. That means constantly exploring the expansion of new areas.
After-sales Service
During epidemic period, our team have helped customers start up more than 250sets new Tongda machines by online service, to help customer run the machine as soon, our after sales team helped around 3 hours till the mid-night.
Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.
Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
Q: How big is your company?
A: our company has 400 employees and A building area of 100,000 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1999.
Our products are sold all over the world, you can rest assured.
