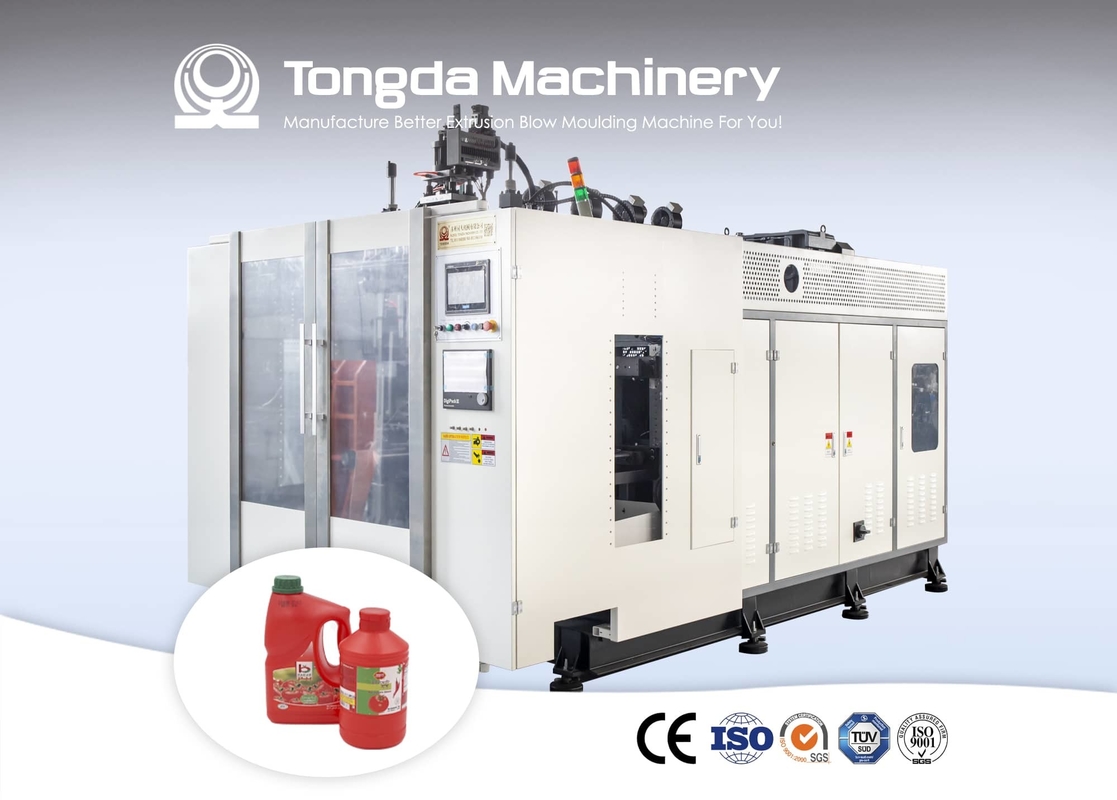

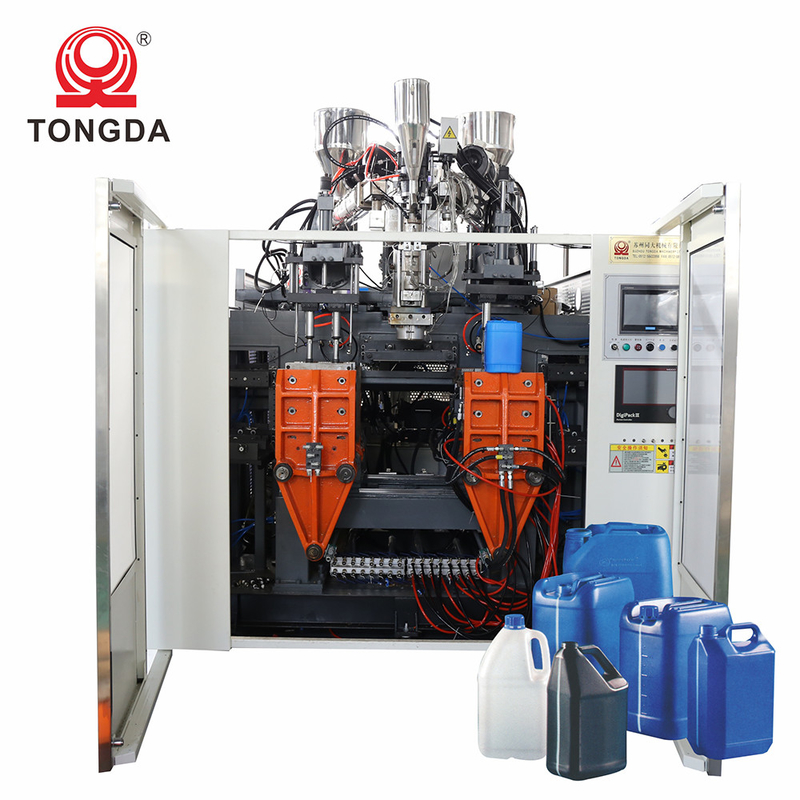

TONGDA HTSll5L 2 Stations Bottle Canister Pvc Plastic Product Blow Molding Making Machinery

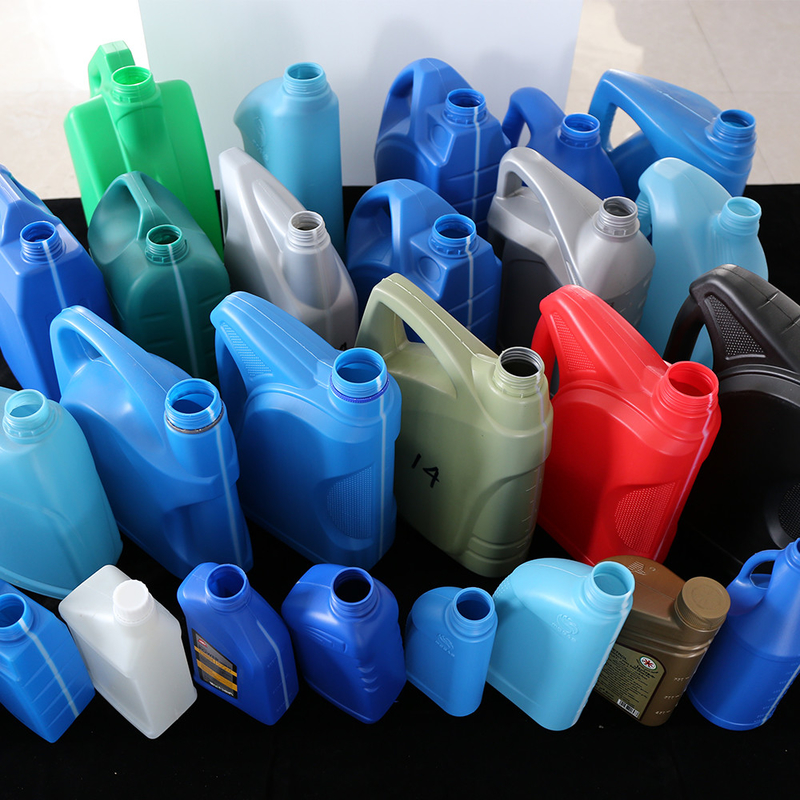

This is our normal series machine.It is double station. This machine is suitable for the jerry can.It can be equipped with several die-heads and then it is also suitable for small bottles. E.g:obilique neck / angle neck bottle / baby lotion.
| MODEL | Units | HTSII-5L | Remarks: we will customize the most suitable machinery according to your requirements |
| Max. Product volume | L | 5 | |
| Output of HDPE | kg/h | 110 | |
| Clamping force | kn | 110 | |
| Screw diametre | mm | 80 | |
| Screw heating power | kw | 19 | |
| Blow pressure | mpa | 0.6 | |
| Size of machine | m | 4.1*2.6*2.7 |
Product Details
Plasticizing system can be designed for multi-layers, 1-4 layers are definitely available, and have high degree customization space.
Honeycomb ventilation holes to ensure better heat dissipation performance.
Multi-head die head confituration available for different output requirement, from 1 cavity to 8 cavity, we all can supply.
Company Information
Suzhou Tongda Machinery Co., Ltd has established Engineering Technology Research and Development Center, and Jiangsu Province excellent Graduate work station. Jiangsu Enterprise Research and Development Center, Jiangsu Province Extrusion blow Molding Technology Technology Center, Jiangsu Province post-doctoral innovation practice base and other R & D platforms. That means constantly exploring the expansion of new areas.
After-sales services
During epidemic period, our team have helped customers start up more than 250sets new Tongda machines by online service, to help customer run the machine as soon, our after sales team helped around 3 hours till the mid-night.
FAQ
TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function
Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
Q: How big is your company?
A: our company has 400 employees and A building area of 100,000 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1999.
Our products are sold all over the world, you can rest assured.
